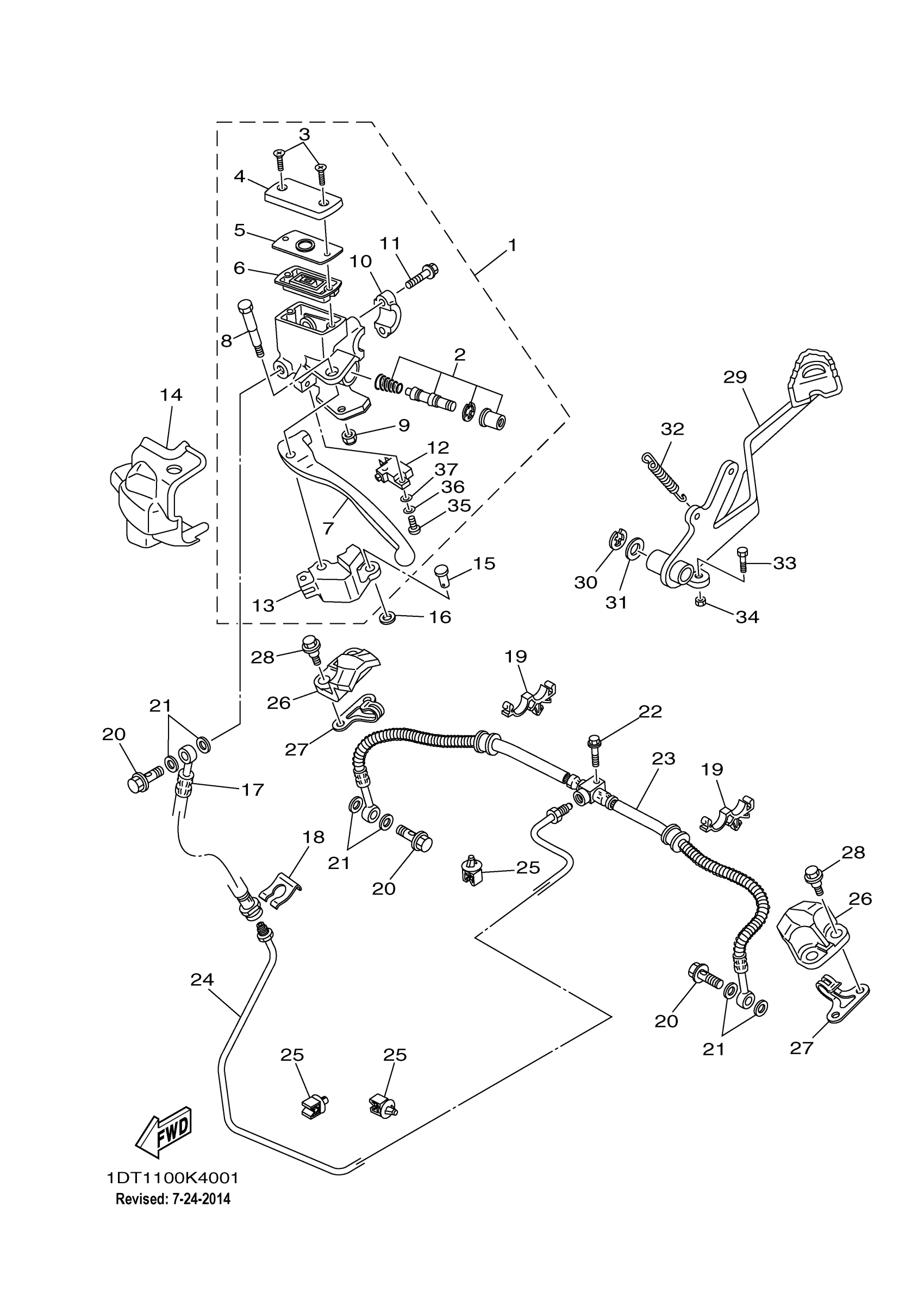

Yamaha YFM5FGPBGR (GRIZLY 550 EPS 4WD) 1HS1 2012 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3B4-2583V-13-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$34.29

3

SCREW, FLAT

98707-04012-00

$1.34

4

CAP, RESERVOIR

5YU-25852-00-00

$28.47

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$8.50

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$14.81

7

LEVER 1

3B4-83912-00-00

$51.89

8

BOLT, LEVER

3B4-2589F-20-00

Unavailable

9

NUT

90170-06024-00

$5.86

10

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$16.55

11

BOLT, FITTING

5MV-25833-00-00

$5.37

12

STOP SWITCH ASSY

1HP-82530-03-00

$27.79

13

KNOCKER

3B4-26168-10-00

Unavailable

14

COVER, HANDLE LEVER 1

3B4-26372-00-00

$6.95

15

PIN W/HOLE 307181180000

90240-08013-00

$4.89

16

.. WASHER, PLATE

92990-08600-00

$2.17

17

HOSE, BRAKE 1

1HP-F5872-00-00

Unavailable

18

CIRCLIP

2GU-25866-00-00

Unavailable

19

CLAMP

90464-16006-00

Unavailable

20

BOLT, UNION

90401-10015-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

HOSE, BRAKE

1HP-F5874-00-00

Unavailable

24

PIPE, BRAKE 2

1HP-F5882-02-00

Unavailable

25

CLAMP 1

5KM-81677-00-00

Unavailable

26

COVER 1

3B4-25715-00-00

Unavailable

27

HOLDER, BRAKE HOSE 5

1HP-F588F-00-00

Unavailable

28

BOLT

90109-06172-00

Unavailable

29

PEDAL, BRAKE

1HP-F7211-01-00

Unavailable

30

CIRCLIP

99006-10600-00

Unavailable

31

WASHER, PLATE

90201-14023-00

Unavailable

32

SPRING, TENSION

90506-20014-00

Unavailable

33

BOLT

97012-06014-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

$4.11

35

SCREW, PAN HEAD

98511-04012-00

Unavailable

36

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

37

WASHER, PLAIN (646)

92990-04600-00

Unavailable
