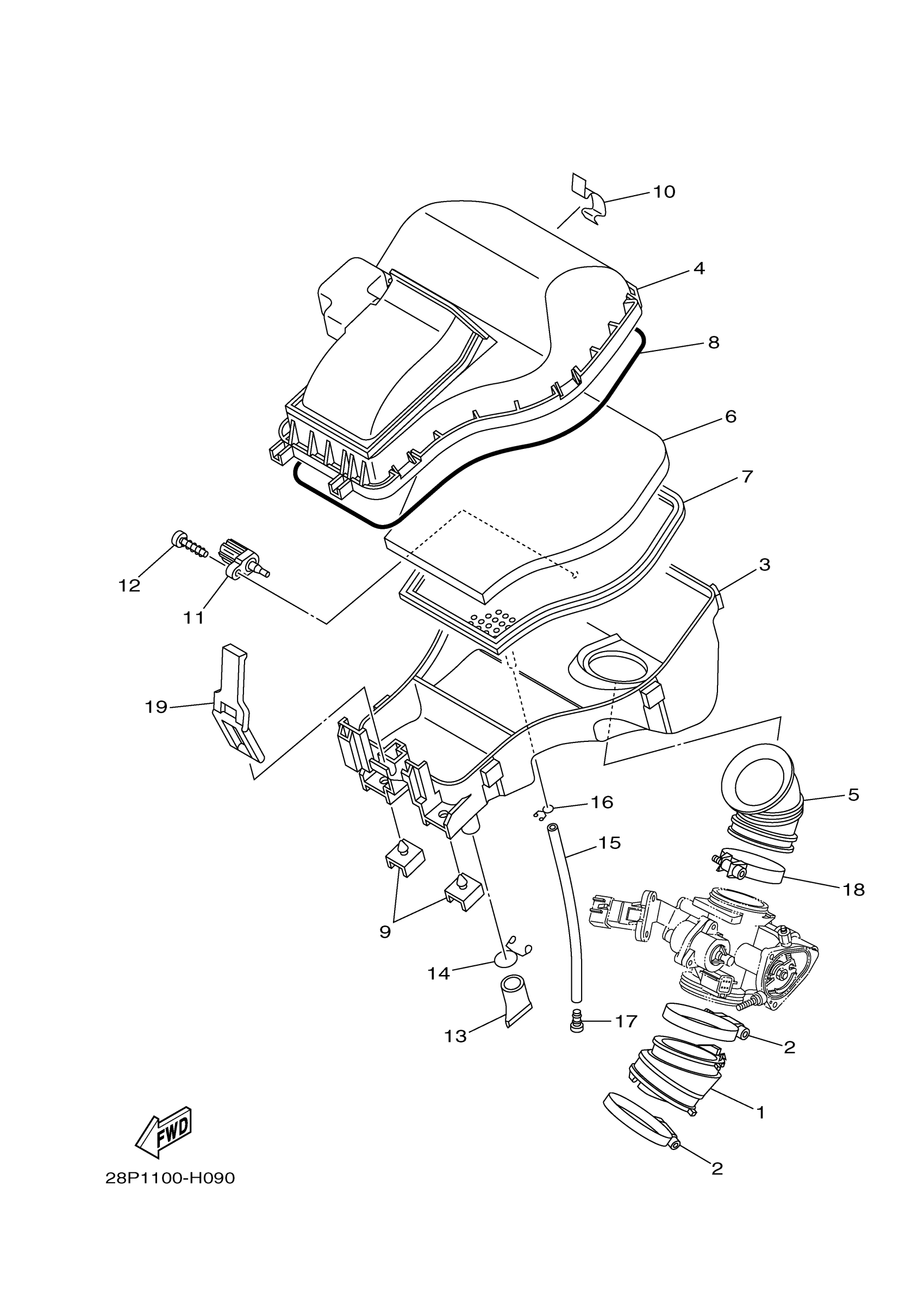

Yamaha YFM5FGPAGR (GRIZZLY 550 EPS 4WD) 34DK 2011 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

28P-13586-00-00

$55.89

2

HOSE CLAMP ASSY

90450-72004-00

$15.94

3

CASE,AIR CLEANER 1

1HP-E4411-00-00

$62.32

4

CAP ASSY, AIR CLEANER

3B4-14402-03-00

$59.24

5

JOINT, AIR CLEANER 1

3B4-14453-00-00

$31.27

6

ELEMENT, AIR CLEAN

1HP-E4451-01-00

Unavailable

7

PLATE, ELEMENT

1HP-E4472-00-00

Unavailable

8

SEAL

3B4-14457-00-00

$12.77

9

DAMPER

3B4-14409-00-00

$4.69

10

CLIP, CAP FITTING

3B4-14424-00-00

$6.29

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$47.81

12

SCREW, PANHEAD TAPPING

97702-50520-00

$0.26

13

SEAL

59V-14457-00-00

$5.25

14

CLIP

90467-220A1-00

$4.81

15

TUBE, FLEXIBLE VINYL (L200)

91A20-07020-00

Unavailable

16

CLIP

90467-100A1-00

Unavailable

17

PLUG (1HX)

90338-08174-00

Unavailable

18

HOSE CLAMP ASSY

90450-59005-00

Unavailable

19

BAND

3B4-14455-00-00

Unavailable
