Description

Price

1

BRACKET, FOOTREST 1

3B4-27452-00-00

$134.99

2

BRACKET, FOOTREST 2

3B4-27462-00-00

$145.99

3

BOLT, WITH WASHER

90119-10044-00

$7.49

4

COVER 1

3B4-27453-01-00

$154.99

5

SEAL 1

3B4-21732-00-00

$10.99

6

ARM 1

5GH-2741A-10-00

Unavailable

7

BOLT

90109-06214-00

$7.49

8

WASHER, PLATE

90201-06033-00

$2.97

9

NUT(6TA)

95317-06600-00

$3.55

10

GROMMET(3SX)

90480-14532-00

$4.67

11

COVER 3

3B4-28239-02-00

$15.49

12

SEAL 2

3B4-21735-00-00

$6.99

13

BOLT

90109-06172-00

$7.49

14

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

15

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

16

WASHER, PLATE

90201-06078-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

COVER 2

3B4-27463-01-00

Unavailable

19

ARM 1

5GH-2741A-10-00

Unavailable

20

BOLT

90109-06214-00

$7.49

21

WASHER, PLATE

90201-06033-00

$2.97

22

NUT(6TA)

95317-06600-00

$3.55

23

BOLT

90109-06172-00

$7.49

24

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

25

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

26

WASHER, PLATE

90201-06078-00

Unavailable

27

NUT, NYLON

95707-06300-00

Unavailable

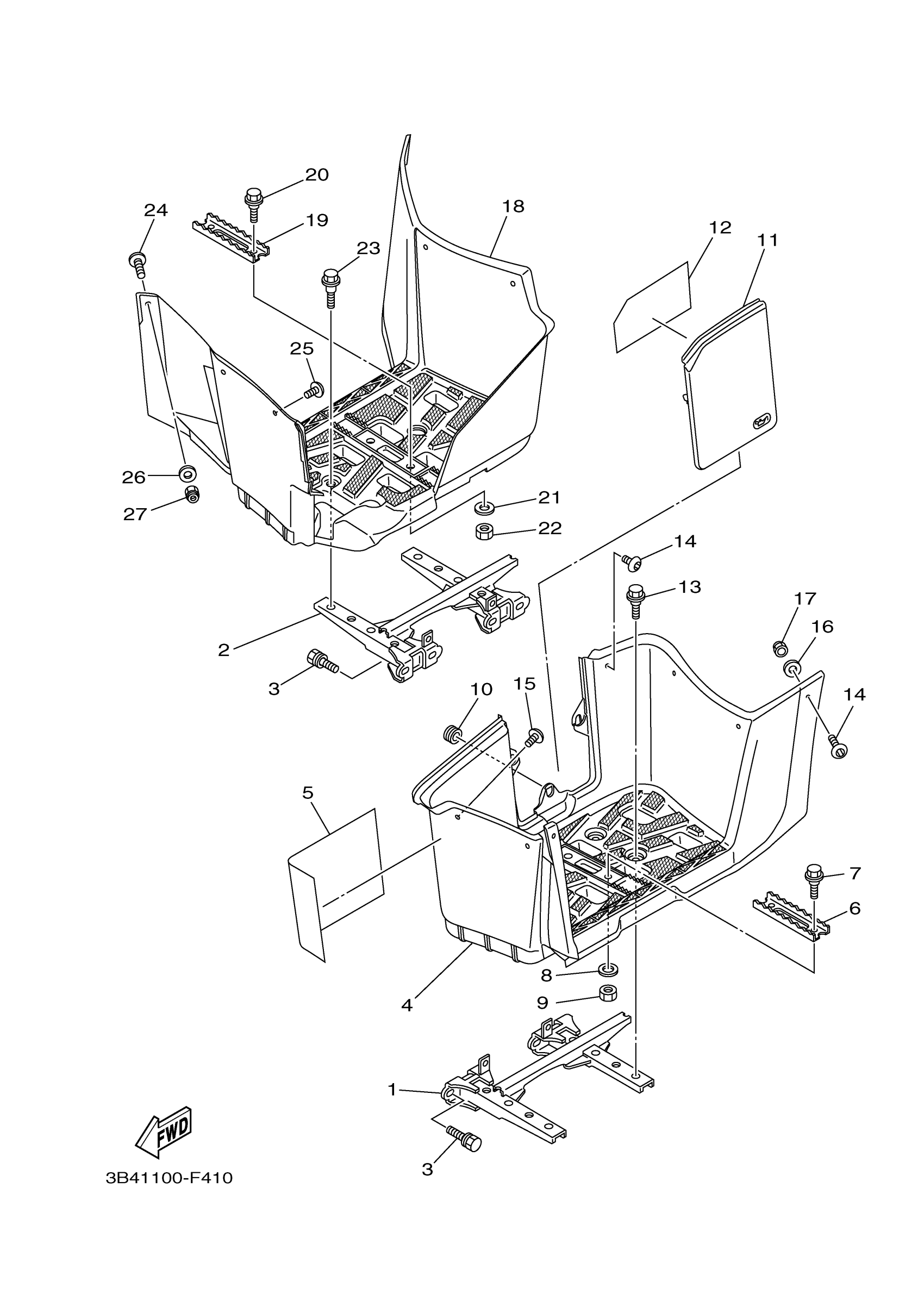

Yamaha YFM5FGHZ (GRIZZLY 550 FI 4WD HUNTER) 28PB 2010 STAND FOOTREST Diagram

BRACKET, FOOTREST 1

BRACKET, FOOTREST 2

BOLT, WITH WASHER

COVER 1

SEAL 1

ARM 1

BOLT

WASHER, PLATE

NUT(6TA)

GROMMET(3SX)

COVER 3

SEAL 2

BOLT

BOLT, HEXAGON SOCKET HEAD(3HE)

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

NUT, NYLON

COVER 2

ARM 1

BOLT

WASHER, PLATE

NUT(6TA)

BOLT

BOLT, HEXAGON SOCKET HEAD(3HE)

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

NUT, NYLON
