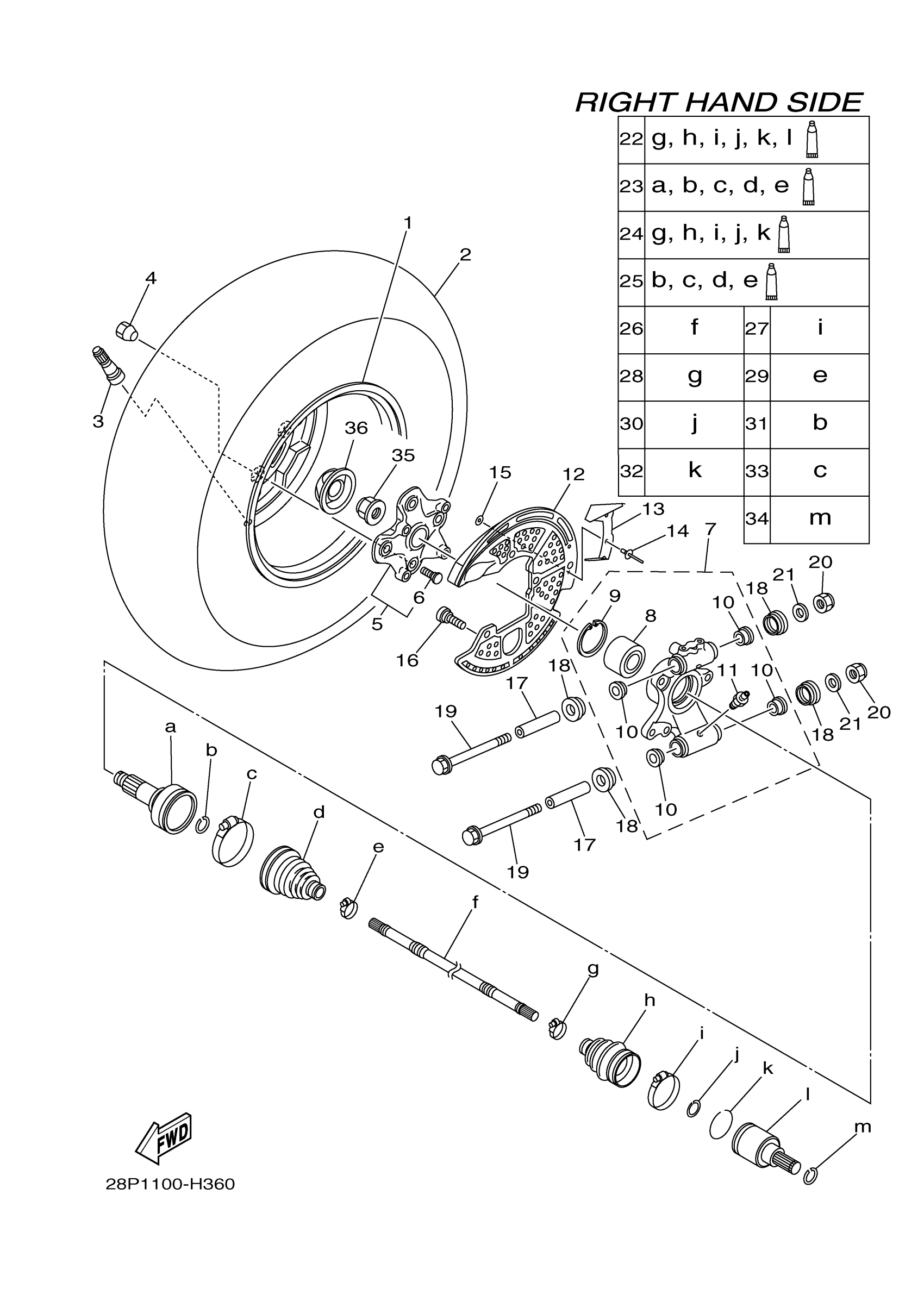

Yamaha YFM5FGHZ (GRIZZLY 550 FI 4WD HUNTER) 28PB 2010 REAR WHEEL 2 Diagram

#

Description
Price

1

REAR WHEEL COMP.

B16-F5390-00-00

Unavailable

2

AT25X10.00-12 MU20

94110-12814-00

$237.99

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT

90179-10020-00

$5.60

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

REAR KNUCKLE ASSY.,2

28P-2532F-00-00

$349.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BUSH, SOLID(2NL)

90381-17067-00

$11.49

11

NIPPLE, GREASE

93700-06M03-00

Unavailable

12

RING, WHEEL 2 (RIGHT)

3B4-2515A-00-00

$14.49

13

PLATE 2

3B4-2539G-00-00

$24.99

14

RIVET, BLIND(8CH)

90267-47187-00

$2.34

15

WASHER, PLATE

90201-04027-00

$3.02

16

SCREW, BINDING (31K)

90154-06014-00

Unavailable

17

SPACER

5KM-23448-00-00

Unavailable

18

COVER, THRUST 1

3JN-23517-00-00

Unavailable

19

BOLT, FLANGE

90105-10185-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

Unavailable

21

WASHER, PLATE

90201-10035-00

Unavailable

22

DOUBLE OFF SET JOI

28P-2530V-10-00

Unavailable

23

BALL JOINT SET

28P-2510F-05-00

Unavailable

24

BOOT SET(DOUBLE OF

28P-2510H-03-00

Unavailable

25

BOOT SET (BALL JOI

28P-2510G-02-00

Unavailable

26

SHAFT

28P-2518E-10-00

Unavailable

27

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

28

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

29

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

30

SNAP RING

3B4-2512J-00-00

Unavailable

31

CIRCLIP

3B4-2512H-00-00

Unavailable

32

CIRCLIP

3B4-25182-00-00

Unavailable

33

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

34

CLIP, SPRING

3B4-2536E-00-00

Unavailable

35

NUT

90179-20016-00

Unavailable

36

CAP, WHEEL

1HP-F512A-00-00

Unavailable
