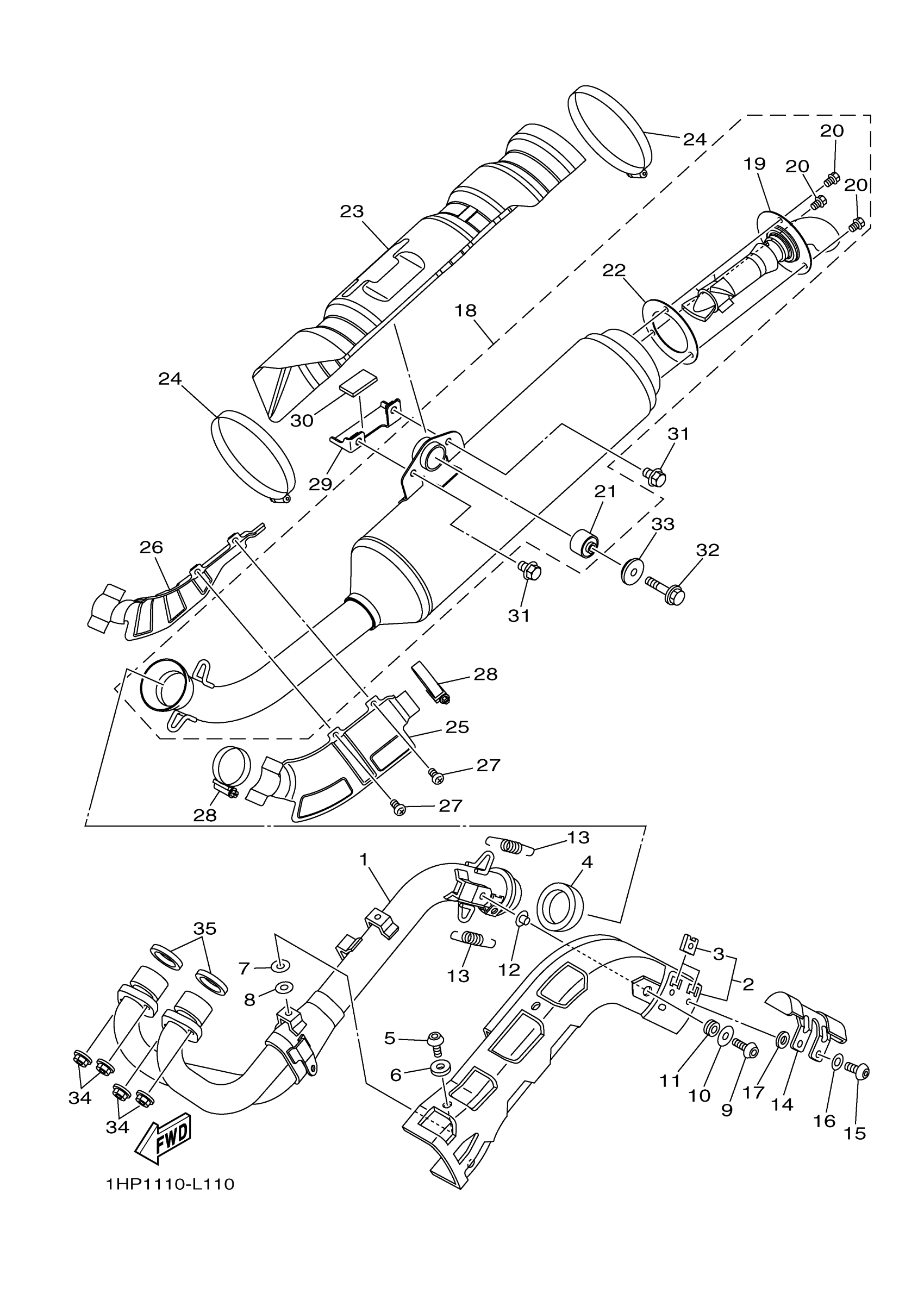

Yamaha YFM5FGHD (GRIZZLY 550 4WD HUNTER) 1NP9 2013 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1HP-E4611-00-00

$215.99

2

COVER, EXHAUST

1HP-E4627-00-00

Unavailable

3

NUT,SPRING

90183-06819-00

$26.99

4

GASKET,MUFFLER

1HP-E4714-00-00

$33.99

5

BOLT, BUTTON HEAD

92012-06014-00

$8.49

6

WASHER, PLATE

90201-06380-00

$0.60

7

WASHER, PLATE

90201-06019-00

$7.49

8

WASHER,PLATE

90201-05825-00

$20.99

9

BOLT, BUTTON HEAD

92012-06016-00

$8.49

10

WASHER, PLATE

90201-06081-00

$8.49

11

GROMMET

90480-17001-00

$9.49

12

COLLAR

90387-08083-00

Unavailable

13

SPRING, TENSION

90506-30006-00

$16.99

14

PROTECTOR, SILENCE

1HP-E4758-00-00

Unavailable

15

BOLT, BUTTON HEAD

92012-06012-00

$4.35

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, PLATE

90201-05015-00

Unavailable

18

MUFFLER COMP. 1

1HP-E4703-00-00

Unavailable

19

PIPE, OUTLET

1HP-E4752-00-00

Unavailable

20

BOLT, FLANGE

95022-06008-00

Unavailable

21

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

22

GASKET, SILENCER

1HP-E4755-00-00

Unavailable

23

PROTECTOR, MUFFLER

1HP-E4718-00-00

Unavailable

24

HOSE CLAMP ASSY

90450-99805-00

Unavailable

25

PROTECTOR ASSY 1

1HP-E471C-00-00

Unavailable

26

PROTECTOR ASSY., 2

1HP-E472C-00-00

Unavailable

27

SCREW, PAN

98517-06012-00

Unavailable

28

HOSE CLAMP ASSY

90450-45806-00

Unavailable

29

STOPPER 1

1HP-E477U-00-00

Unavailable

30

MAT 1

1HP-E4733-00-00

Unavailable

31

BOLT, FLANGE

95817-08012-00

Unavailable

32

BOLT, FLANGE

95817-08040-00

Unavailable

33

WASHER

3B4-14759-01-00

Unavailable

34

NUT,FLANGE(J10)

95702-08500-00

Unavailable

35

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
