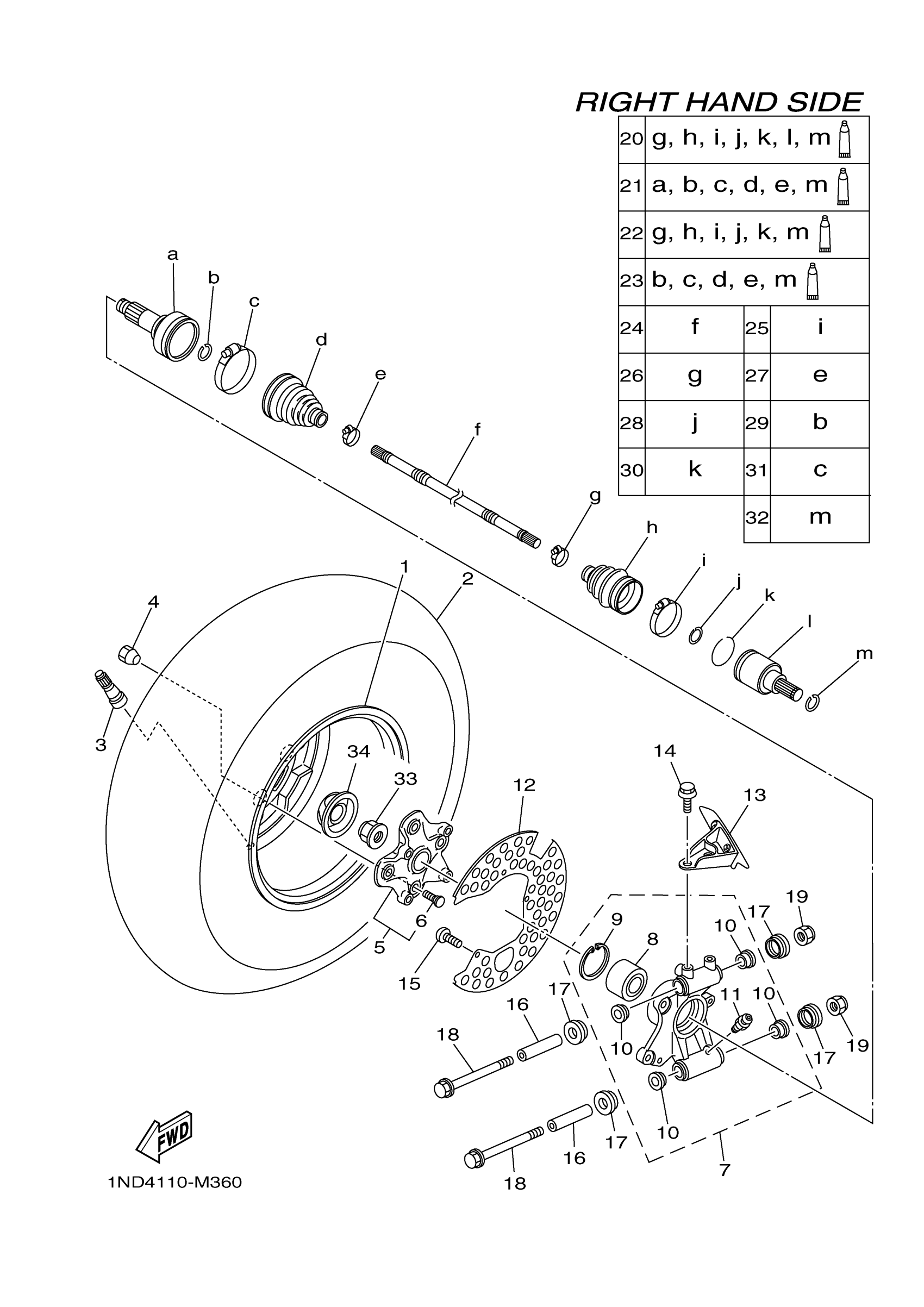

Yamaha YFM5FGDL (GRIZZLY 550 4WD) 1NP60 2013 REAR WHEEL 2 Diagram

#

Description
Price

1

WHEEL,REAR

1ND-F5390-09-00

Unavailable

1

REAR WHEEL COMP.

B16-F5390-00-00

Unavailable

2

AT25X10.00-12 MU20

94110-12814-00

$237.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10020-00

$5.60

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

REAR KNUCKLE ASSY.

2BG-F532F-01-00

$151.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BUSH, SOLID(2NL)

90381-17067-00

$11.49

11

NIPPLE, GREASE

93700-06M03-00

Unavailable

12

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$14.99

13

PLATE 2

1HP-F539G-00-00

$16.49

14

BOLT

90109-06840-00

Unavailable

15

SCREW, BIND(1JK)

98980-06010-00

Unavailable

16

SPACER

5KM-23448-00-00

Unavailable

17

COVER, THRUST 1

3JN-23517-00-00

Unavailable

18

BOLT, FLANGE

90105-10212-00

Unavailable

19

NUT, SELF-LOCKING

90185-10012-00

Unavailable

20

DOUBLE OFF SET JOI

28P-2530V-10-00

Unavailable

21

BALL JOINT SET

28P-2510F-10-00

Unavailable

22

BOOT SET(DOUBLE OF

28P-2510H-10-00

Unavailable

23

BOOT SET (BALL JOI

28P-2510G-10-00

Unavailable

24

SHAFT

28P-2518E-10-00

Unavailable

25

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

26

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

27

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

28

SNAP RING

3B4-2512J-00-00

Unavailable

29

CIRCLIP

3B4-2512H-00-00

Unavailable

30

CIRCLIP

3B4-25182-00-00

Unavailable

31

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

32

CLIP, SPRING

3B4-2536E-00-00

Unavailable

33

NUT

90179-20016-00

Unavailable

34

CAP, WHEEL

1HP-F512A-00-00

Unavailable
