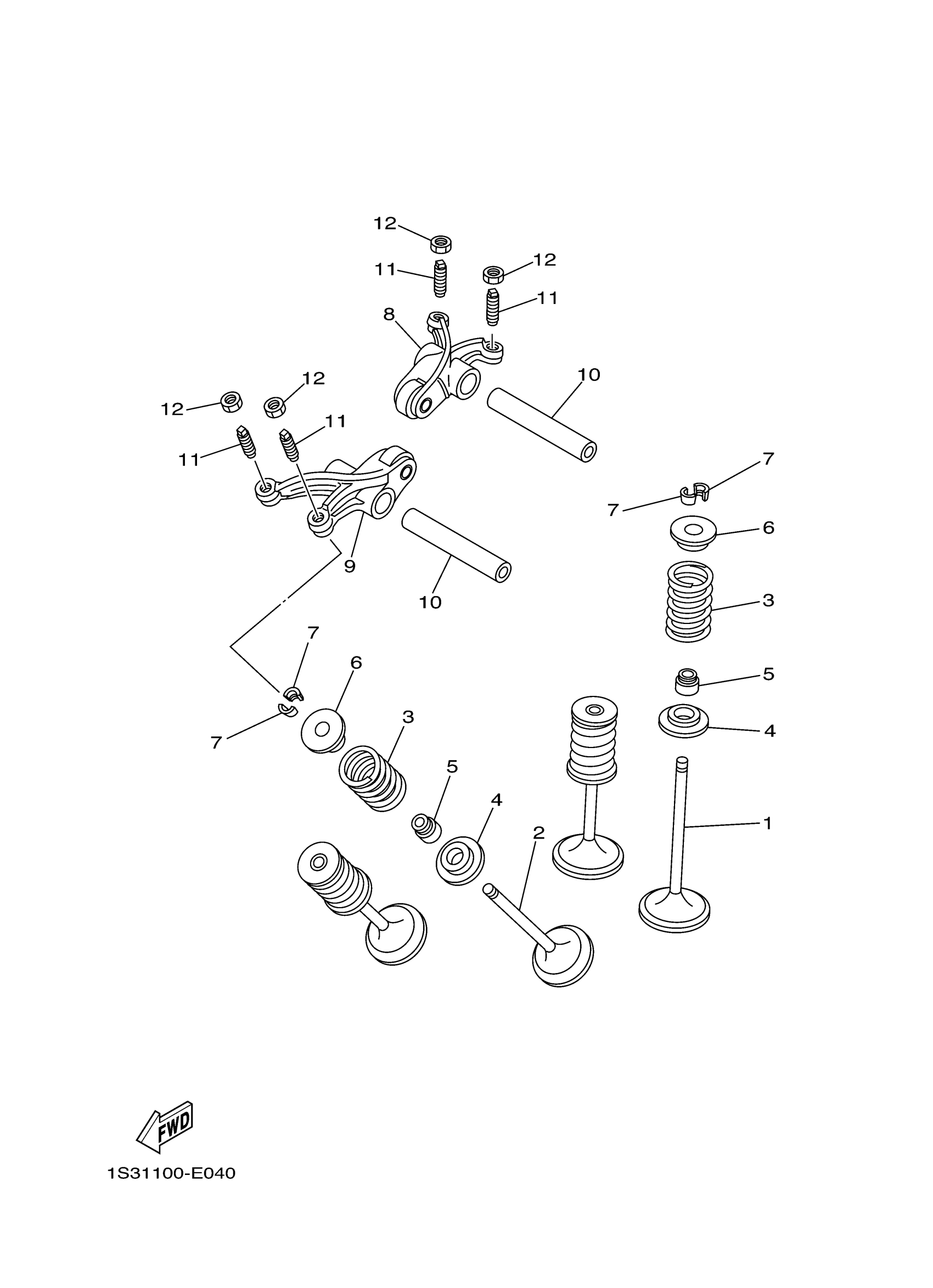

Yamaha YFM5FGAGR (GRIZZLY 550 4WD) 28PC 2011 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

28P-12111-00-00

$39.42

2

VALVE, EXHAUST

28P-12121-00-00

$65.61

3

SPRING, VALVE INNER

5VK-12113-00-00

$16.13

4

SEAT, VALVE SPRING

3YF-12116-00-00

$7.21

5

SEAL, VALVE STEM

5H0-12119-00-00

$13.75

6

RETAINER, VALVE SPRING

3YF-12117-01-00

$12.28

7

COTTER, VALVE

4G0-12118-00-00

$6.39

8

ARM, VALVE ROCKER

28P-12151-00-00

Unavailable

9

ARM, VALVE ROCKER 2

28P-12161-00-00

Unavailable

10

SHAFT, ROCKER

5VK-12146-00-00

$18.62

11

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$8.06

12

NUT HEXAGON 371121580000

90170-06128-00

$5.75
