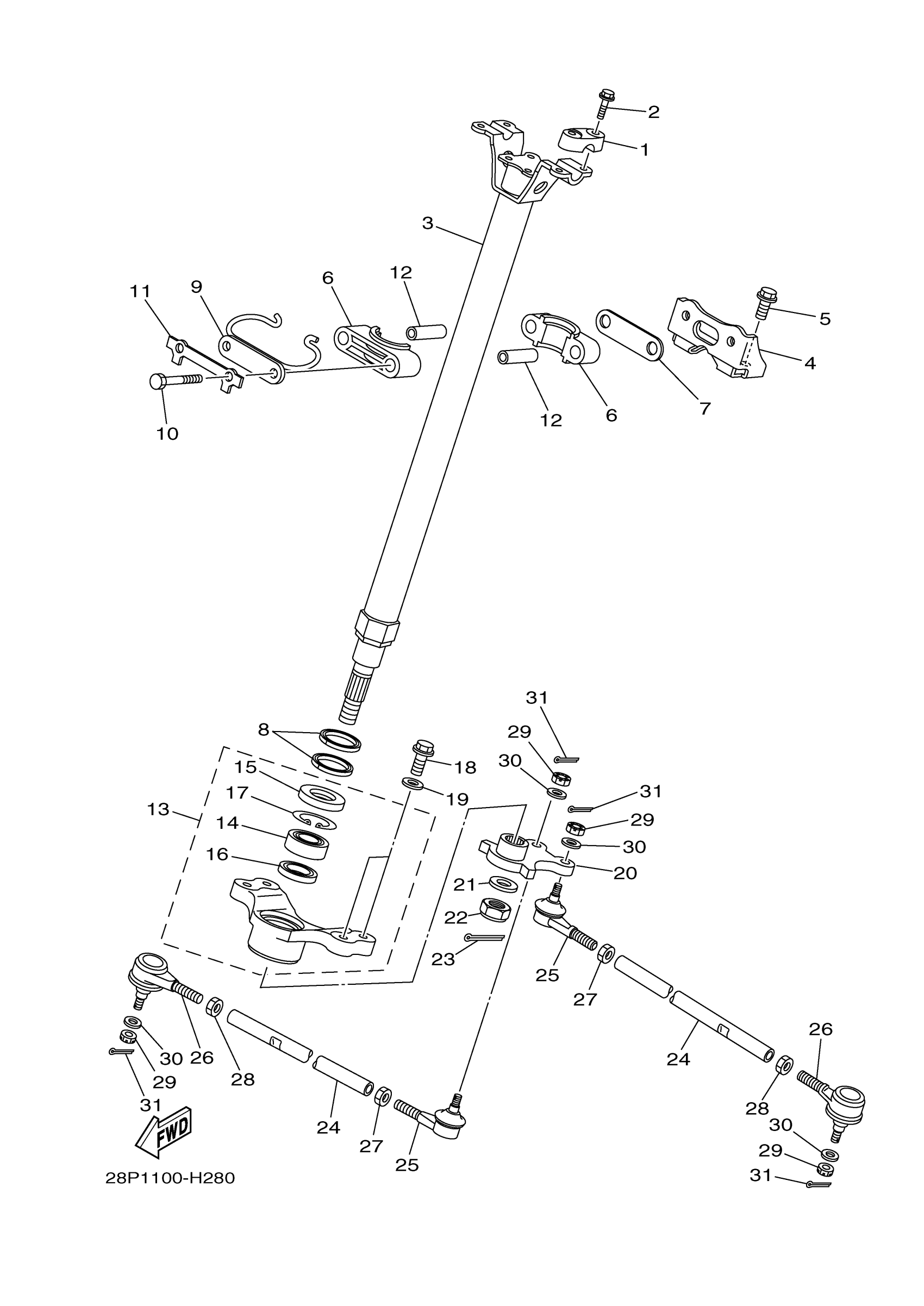

Yamaha YFM5FGAGR (GRIZZLY 550 4WD) 28PC 2011 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

2

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

3

COLUMN, STEERING 2

1ND-F3813-00-00

Unavailable

4

SUPT., STRG. COLUMN

3B4-22517-00-00

Unavailable

5

BOLT, FLANGE

95812-10016-00

$9.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

SPACER

5D3-23858-00-00

$4.63

8

OIL SEAL(1UY)

93112-31011-00

$9.49

9

BRACKET, STEERING

1HP-F3868-00-00

$9.99

10

BOLT, HEXAGON

97017-08060-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR

90387-09011-00

$8.49

13

STEERING COLUMN SUPPORT ASSY

5C0-22502-10-00

$228.99

14

BEARING

93306-20352-00

$33.99

15

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

16

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

17

CIR-CLIP (70R)

93420-40064-00

Unavailable

18

BOLT, FLANGE

95812-08030-00

Unavailable

19

WASHER, PLATE

90201-08048-00

Unavailable

20

ARM, PITMAN

1ND-F3816-00-00

Unavailable

21

WASHER, PLATE

90201-14021-00

Unavailable

22

NUT, SELF-LOCKING

90185-14009-00

Unavailable

23

PIN, COTTER

91490-20035-00

Unavailable

24

ROD, TIE

5KM-23831-00-00

Unavailable

25

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

26

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

27

NUT (682)

95380-10700-00

Unavailable

28

NUT

90170-10010-00

Unavailable

29

NUT, CASTLE

90171-10001-00

Unavailable

30

WASHER (25G)

90209-10229-00

Unavailable

31

PIN, COTTER

91490-20025-00

Unavailable
