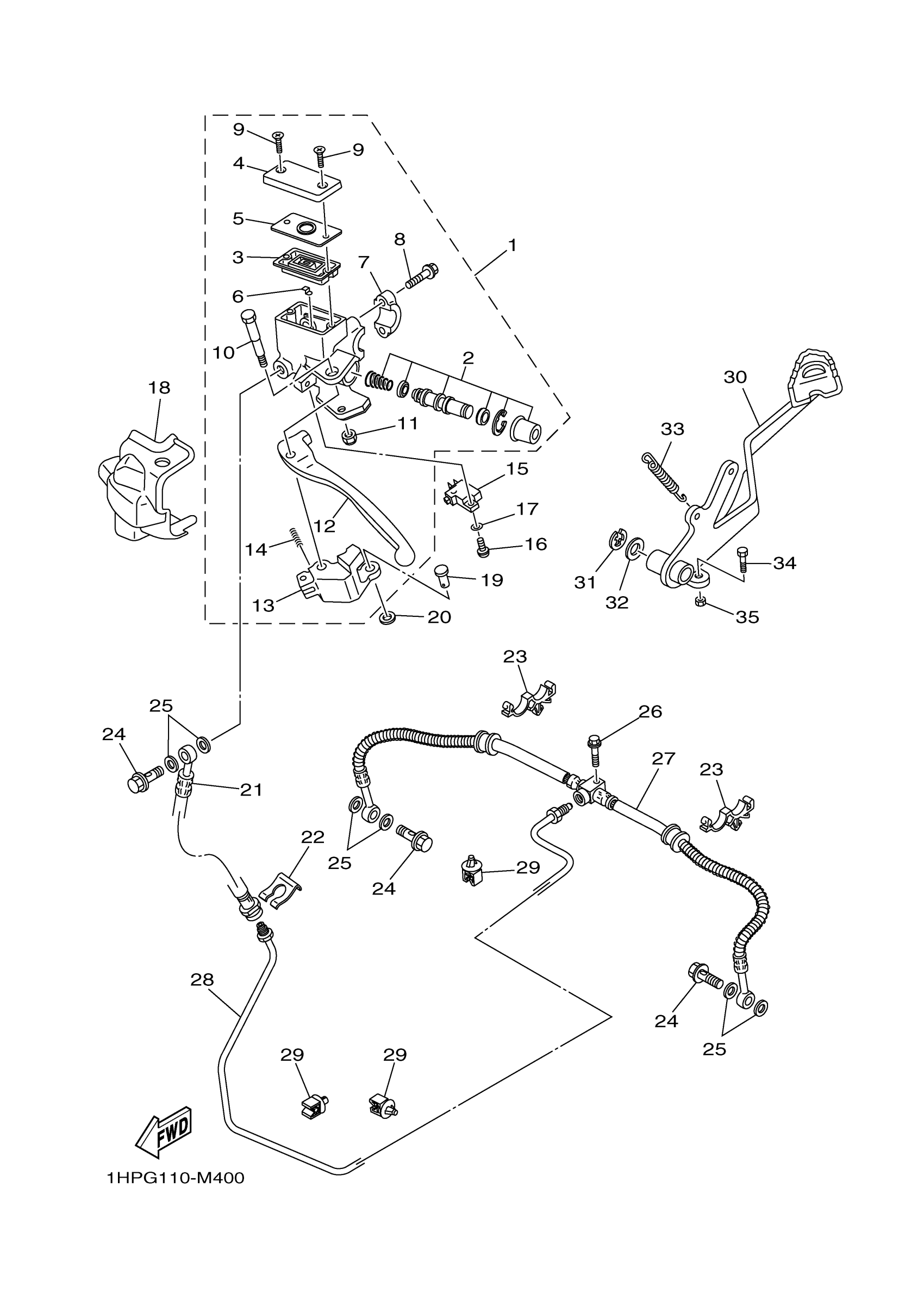

Yamaha YFM550PHEH (GRIZZLY 550 EPS HUNTING) 2LB5 2014 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

2UD-F583V-00-00

Unavailable

2

CYLINDER KIT, MAST

B16-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

1HP-25854-00-00

Unavailable

4

CAP, RESERVOIR

B16-F5852-00-00

$7.49

5

PLATE, DIAPHRAGM

1HP-2585B-00-00

$6.99

6

SEPARATOR

1HP-25889-00-00

$2.24

7

BRACKET, MASTER CY

B16-F5867-00-00

Unavailable

8

BOLT

B16-F6332-00-00

$4.77

9

SCREW, FLAT HEAD

98780-04012-00

$2.87

10

BOLT, LEVER

2UD-F589F-00-00

$6.99

11

NUT 1

2UD-F6294-00-00

$2.81

12

LEVER, BRAKE

2UD-F3912-00-00

Unavailable

13

KNOCKER

2UD-F6168-00-00

$17.49

14

SPRING, SEAT

2UD-F5865-00-00

Unavailable

15

STOP SWITCH ASSY

1HP-82530-03-00

$31.99

16

SCREW, PAN HEAD

98511-04012-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

COVER, HANDLE LEVER 1

3B4-26372-00-00

Unavailable

19

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

HOSE, BRAKE 1

1HP-F5872-00-00

Unavailable

22

CIRCLIP

2GU-25866-00-00

Unavailable

23

CLAMP

90464-16006-00

Unavailable

24

BOLT, UNION

90401-10015-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

BOLT, FLANGE

95817-06025-00

Unavailable

27

HOSE, BRAKE 3

1HP-F5874-11-00

Unavailable

28

PIPE, BRAKE 2

1HP-F5882-02-00

Unavailable

29

CLAMP 1

5KM-81677-00-00

Unavailable

30

PEDAL, BRAKE

1HP-F7211-01-00

Unavailable

31

CIRCLIP

99006-10600-00

Unavailable

32

WASHER, PLATE

90201-14023-00

Unavailable

33

SPRING, TENSION

90506-20014-00

Unavailable

34

BOLT

97012-06014-00

Unavailable

35

NUT, HEXAGON

95380-06600-00

Unavailable
