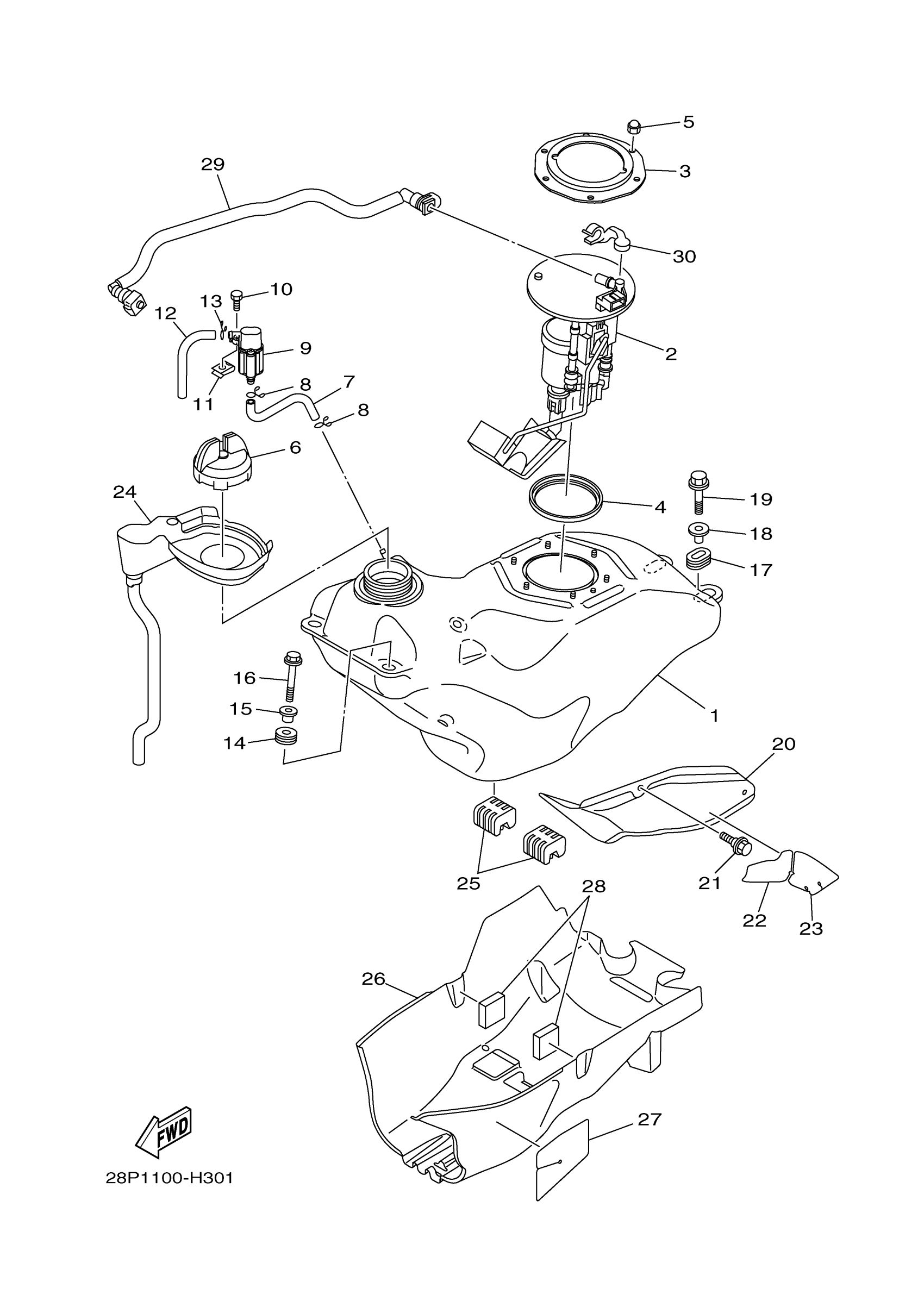

Yamaha YFM550PHEH (GRIZZLY 550 EPS HUNTING) 2LB5 2014 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1HP-F4110-00-00

Unavailable

2

Fuel Pump Comp

3B4-13907-13-00

$317.99

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$17.49

5

NUT (J17)

95380-06800-00

$8.49

6

CAP ASSY

3B4-24610-10-00

Unavailable

7

PIPE 2

1HP-F4312-00-00

Unavailable

8

CLIP

90467-090A2-00

$4.41

9

PIPE JOINT ASSY

28P-24380-00-00

$42.99

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

HOSE (L110)

90445-09825-00

Unavailable

13

CLIP

90467-090A2-00

$4.41

14

GROMMET (4V1)

90480-18290-00

$8.49

15

COLLAR (36R)

90387-066J1-00

$8.49

16

BOLT, FLANGE

95817-06030-00

Unavailable

17

GROMMET(38W)

90480-01400-00

Unavailable

18

COLLAR

90387-07021-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

COVER, SIDE 1

1HP-F4129-00-00

Unavailable

21

BOLT

90109-06172-00

Unavailable

22

DAMPER, PLATE 2

1HP-F414J-00-00

Unavailable

23

DAMPER, PLATE 3

1HP-F414K-00-00

Unavailable

24

COVER, FILLER COMP.

3B4-2414F-00-00

Unavailable

25

DAMPER, LOCATING 1

1HP-F4181-00-00

Unavailable

26

PROTECTOR, FUEL TANK

1HP-F4141-00-00

Unavailable

27

INSULATOR, FUEL TANK 2

1HP-F416G-00-00

Unavailable

28

DAMPER, LOCATING 2

3B4-24182-00-00

Unavailable

29

PIPE, FUEL 1

3B4-13971-11-00

Unavailable

30

CLAMP

90464-14004-00

Unavailable
