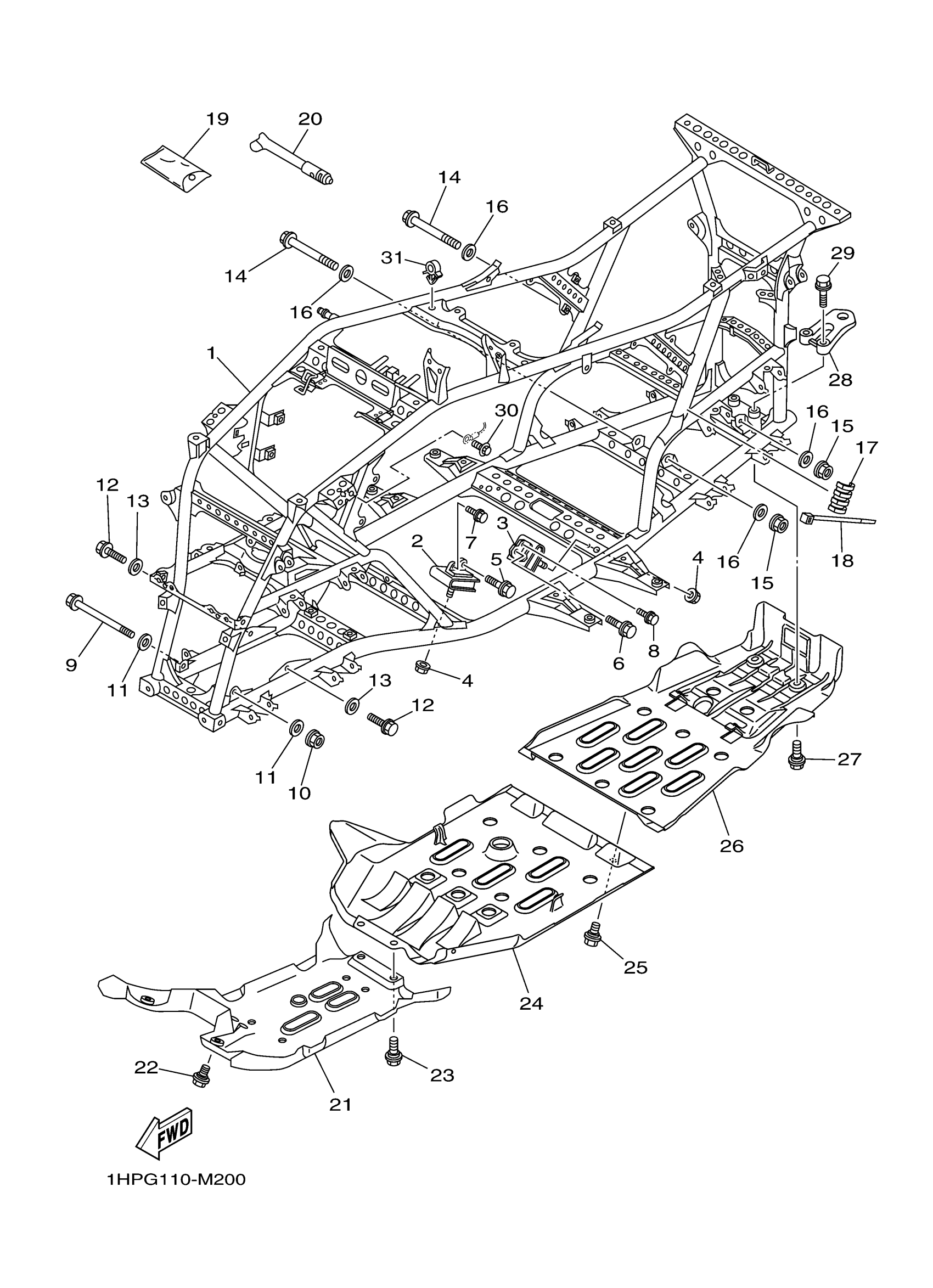

Yamaha YFM550PHEH (GRIZZLY 550 EPS HUNTING) 2LB5 2014 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1HP-F1110-21-00

$634.99

2

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

3

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

4

NUT, SELF-LOCKING

90185-10011-00

$5.60

5

BOLT, FLANGE

95812-10035-00

$5.60

6

BOLT, FLANGE

95812-10035-00

$5.60

7

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

8

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

9

BOLT, FLANGE

90105-10219-00

$7.49

10

NUT, SELF-LOCKING

90185-10011-00

$5.60

11

WASHER, PLATE

90201-10035-00

$4.19

12

BOLT, FLANGE

95817-10030-00

$8.49

13

WASHER, PLATE

90201-10035-00

$4.19

14

BOLT, FLANGE

90105-10238-00

$8.49

15

NUT, SELF-LOCKING

90185-10011-00

$5.60

16

WASHER, PLATE

90201-10035-00

$4.19

17

DAMPER

3B4-2113B-01-00

Unavailable

18

CLAMP(JN6)

90464-40825-00

Unavailable

19

TOOL KIT

1HP-F8100-00-00

Unavailable

20

GAUGE, AIR

1NV-2811A-01-00

Unavailable

21

GUARD, ENGINE 1

1HP-F147A-01-00

Unavailable

22

BOLT

90109-06202-00

Unavailable

23

BOLT

90109-06214-00

Unavailable

24

GUARD, ENGINE 2

1HP-F147E-02-00

Unavailable

25

BOLT

90109-06214-00

Unavailable

26

GUARD, ENGINE 3

1HP-F147F-01-00

Unavailable

27

BOLT

90109-06202-00

Unavailable

28

HOOK

1HP-F8488-00-00

Unavailable

29

BOLT, FLANGE

95812-10035-00

$5.60

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

CLAMP(3XV)

90464-15157-00

Unavailable
