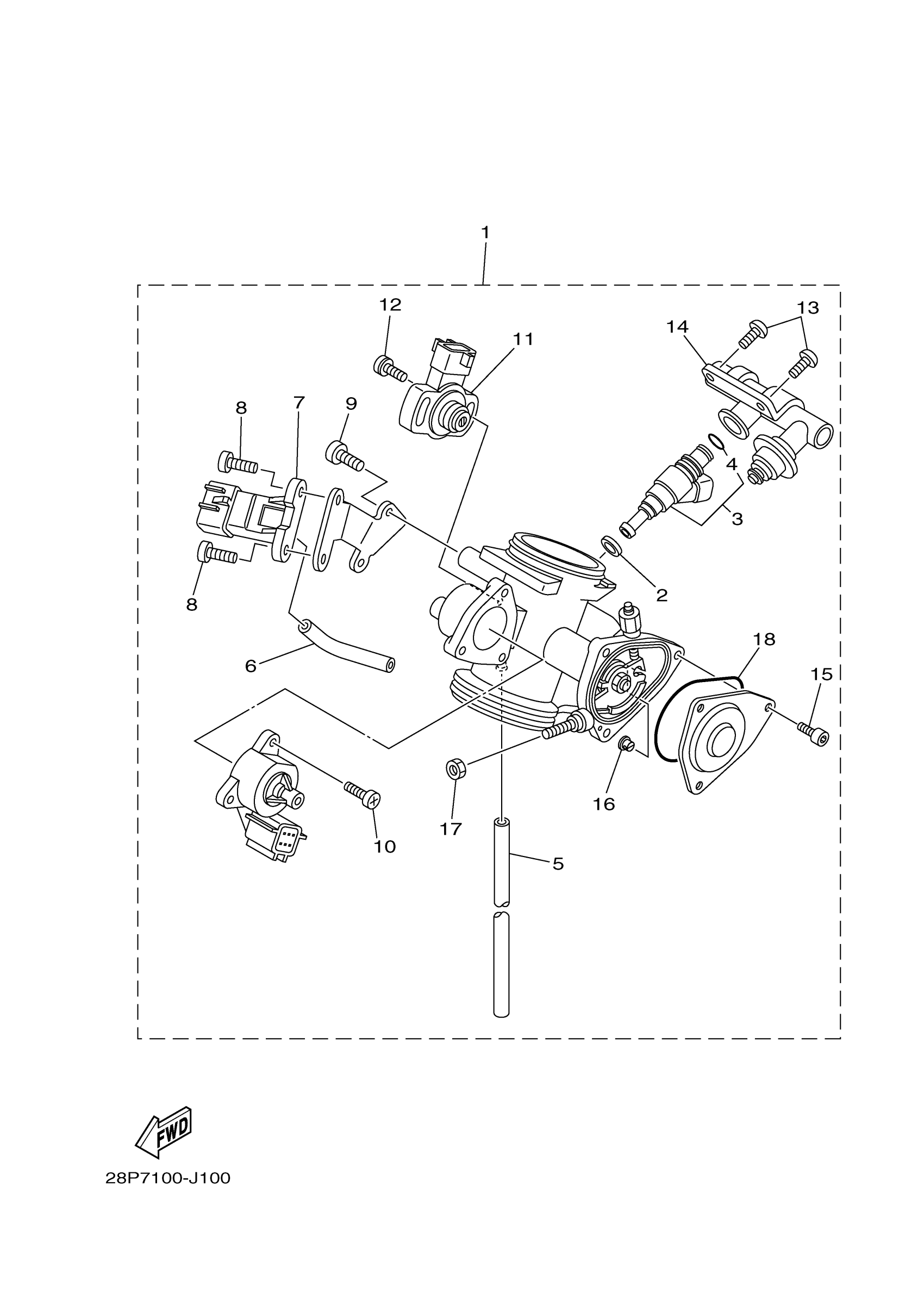

Yamaha YFM550PER (GRIZZLY 550 FI EPS) 2LB11 2014 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

28P-13750-12-00

$894.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

3B4-13761-00-00

$225.99

4

O-RING

5PS-14147-00-00

$13.49

5

HOSE, AIR

28P-13543-00-00

Unavailable

6

PIPE 1

5JW-14348-00-00

$20.99

7

SENSOR, PRESSURE

1C7-82380-00-00

$184.99

8

SCREW PAN HEAD

98580-06010-00

$8.49

9

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

10

SCREW

1S4-14216-00-00

$5.49

11

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

12

SCREW

8CC-14216-10-00

$7.99

13

SCREW, PAN

98517-06012-00

$3.78

14

DELIVERY PIPE ASSY 1

3B4-13160-00-00

$258.99

15

BOLT

91312-04006-00

$2.97

16

GUIDE, CABLE

1UY-14155-00-00

Unavailable

17

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

18

O-RING

5LP-14147-00-00

Unavailable
