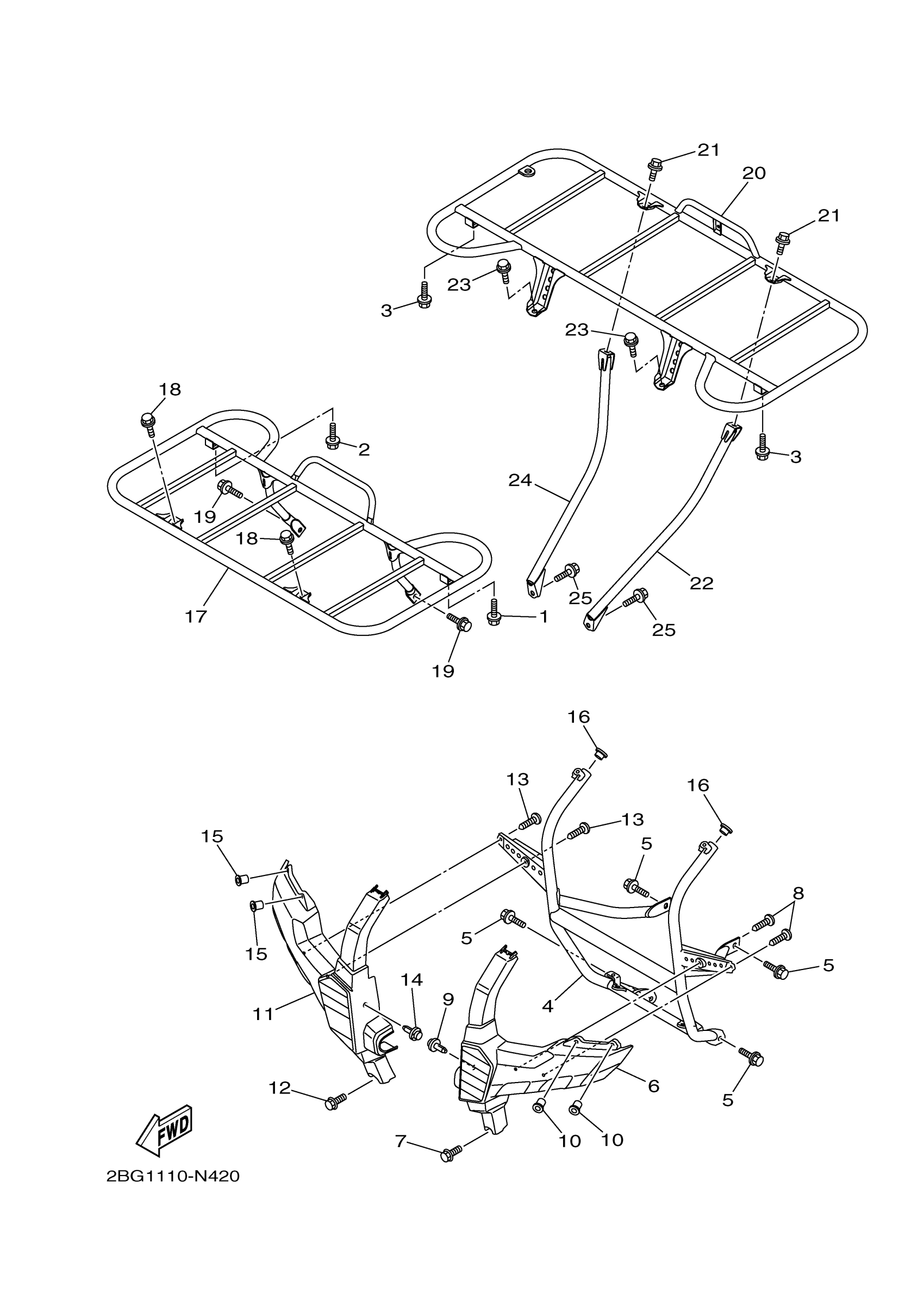

Yamaha YFM550DEL (GRIZZLY 550 FI) 1NPA0 2014 GUARD Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06152-00

$2.56

2

BOLT, WITH WASHER

90119-06152-00

$2.56

3

BOLT, WITH WASHER

90119-06152-00

$2.56

4

BAR, CARRY FRONT

1HP-F845N-01-00

Unavailable

5

BOLT, FLANGE

95817-08014-00

$1.81

6

COVER, 1

1HP-F842M-01-00

Unavailable

7

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

8

SCREW, TAPPING

90167-06800-00

$0.73

9

RIVET

90269-07012-00

$2.55

10

NUT(1KT)

90179-05523-00

$4.33

11

COVER, 2

1HP-F842N-01-00

Unavailable

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$0.93

13

SCREW, TAPPING

90167-06800-00

$0.73

14

RIVET

90269-07012-00

$2.55

15

NUT(1KT)

90179-05523-00

$4.33

16

PLUG (5R2)

90338-18122-00

Unavailable

17

CARRIER, FRONT

2BG-F4841-00-00

Unavailable

18

BOLT, FLANGE

95817-08012-00

Unavailable

19

BOLT, WITH WASHER

90119-08118-00

Unavailable

20

CARRIER, REAR

2BG-F4842-00-00

Unavailable

21

BOLT, FLANGE

95817-08014-00

$1.81

22

FRAME, CARRIER 1

2BG-F482J-00-00

Unavailable

23

BOLT, WITH WASHER

90119-10044-00

Unavailable

24

FRAME, CARRIER 2

2BG-F482K-00-00

Unavailable

25

BOLT, WITH WASHER

90119-10044-00

Unavailable
