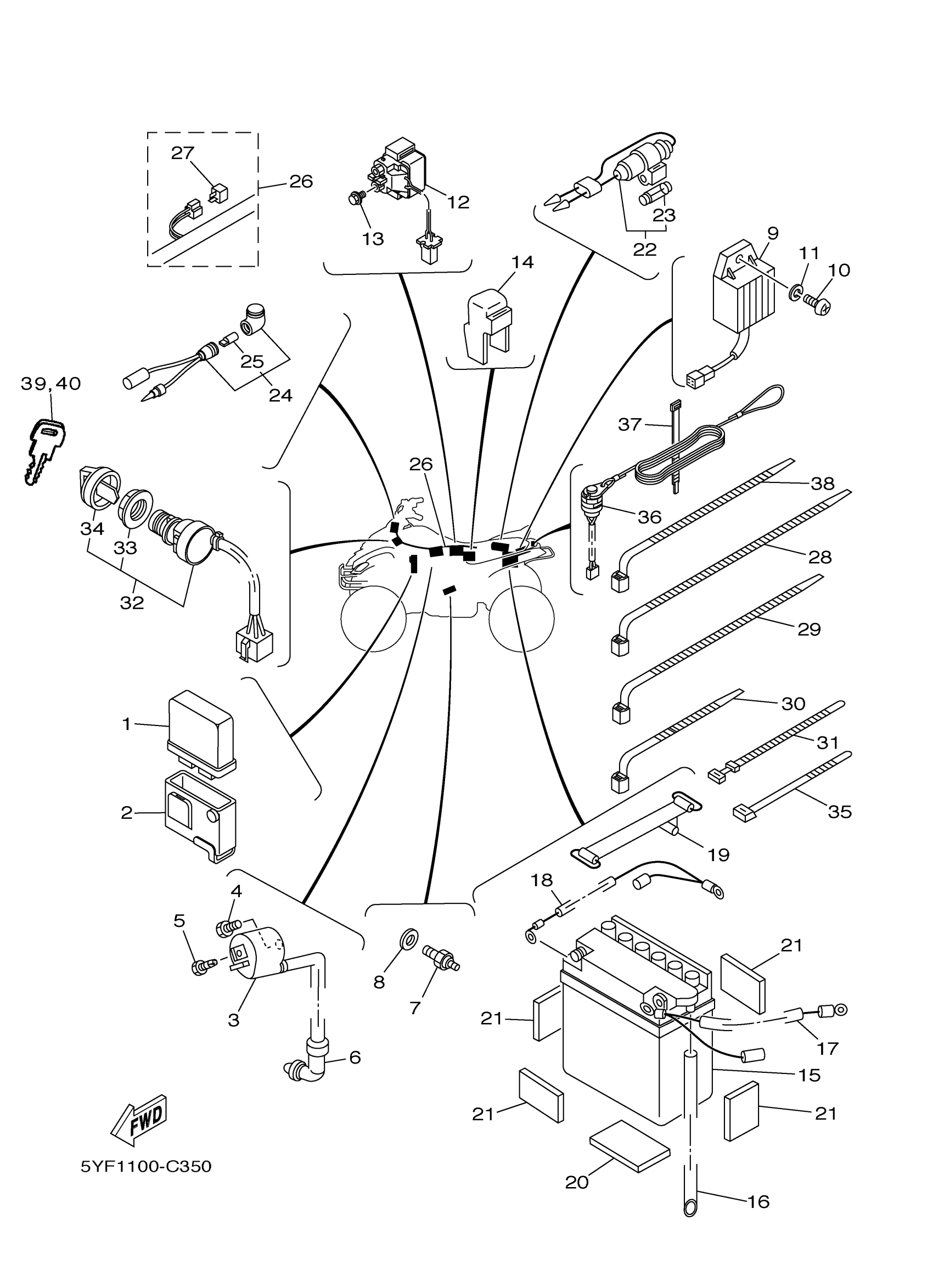

Yamaha YFM50RXL (RAPTOR 50) 5YFD0 2008 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

5YF-85540-00-00

$277.99

BAND

5CU-85546-00-00

Unavailable

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

SCREW (5G3)

90153-06034-00

$7.49

PLUG CAP ASSY

4BP-82370-01-00

$35.99

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

RECTIFIER & REGULATOR ASSY

5TH-81960-01-00

Unavailable

SCREW, PAN HEAD

98580-06016-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

STARTER RELAY ASSY (MS5E-661)

3MW-81940-01-00

Unavailable

BOLT, FLANGE

95022-06008-00

$8.49

RELAY ASSY

12R-81950-02-00

$70.99

BAT 12N7-3B YU

12N-73B00-00-00

Unavailable

HOSE (L1500)

90445-084J0-00

Unavailable

WIRE, PLUS LEAD

55X-82115-01-00

Unavailable

WIRE, MINUS LEAD

3GB-82116-00-00

Unavailable

BAND, BATTERY

4J2-82131-01-00

Unavailable

SEAT, BATTERY

55X-82122-00-00

Unavailable

DAMPER 1

1UY-21638-00-00

Unavailable

FUSE HOLDER ASSY

3GB-82150-00-00

Unavailable

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

PILOT LIGHT ASSY

4KB-83530-01-00

Unavailable

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

WIRE HARNESS ASSY

5YF-82590-00-00

Unavailable

DIODE ASSY

3WP-81980-00-00

Unavailable

CLAMP, HOSE(3KJ)

90460-15126-00

Unavailable

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

CLAMP

90465-10098-00

Unavailable

ENGINE STOP SWITCH ASSY

5YF-82550-00-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
