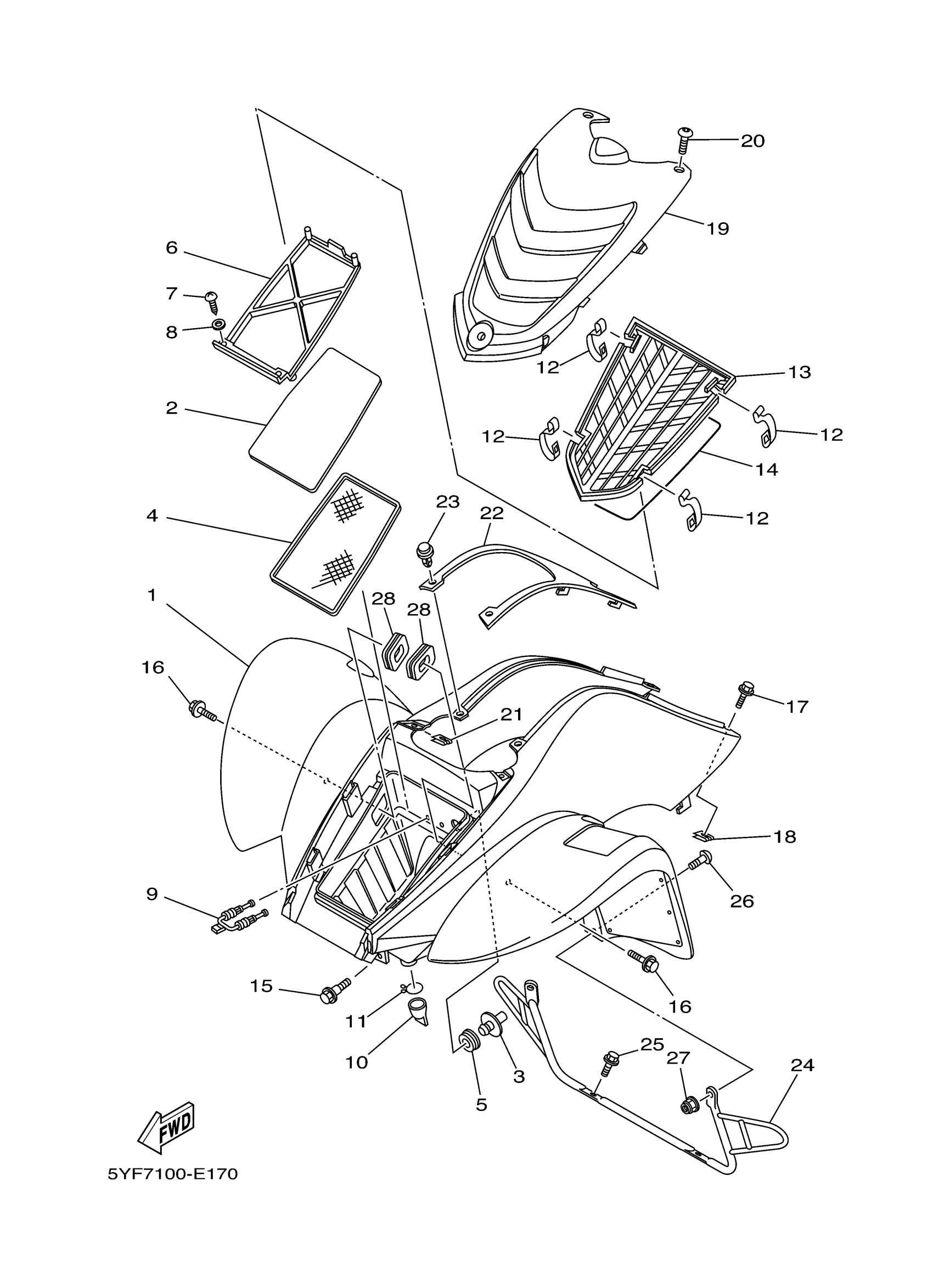

Yamaha YFM50RW (RAPTOR 50) 5YFA 2007 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
5YF-W2151-02-00
Unavailable
1
FRONT FENDER COMP. (PASTEL DARK GRAY)
5YF-W2151-31-00
Unavailable
3
PIPE
2D3-14419-00-00
Unavailable
4
PLATE, ELEMENT
55X-14472-01-00
Unavailable
6
GUIDE
55X-14458-00-00
Unavailable
8
WASHER(6E1)
92907-04200-00
Unavailable
9
HOOK
55X-14436-00-00
Unavailable
13
CAP, CLEANER CASE 1
5TH-14412-00-00
Unavailable
15
BOLT(3KJ)
90109-063F1-00
Unavailable
16
BOLT, WITH WASHER
90119-06242-00
Unavailable
17
BOLT, WITH WASHER(3RB)
90119-05193-00
Unavailable
18
NUT, SPRING
90183-05008-00
Unavailable
19
FENDER, FRONT 2
5TH-21556-00-00
Unavailable
19
FENDER, FRONT 2 (PASTEL DARK GRAY)
5TH-21556-30-00
Unavailable
20
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
21
NUT, SPRING
90183-05008-00
Unavailable
22
COVER, TOP
5TH-2171A-00-00
Unavailable
22
COVER, TOP (PASTEL DARK GRAY)
5TH-2171A-30-00
Unavailable
23
RIVET
90269-06002-00
Unavailable
24
STAY, FENDER 1
5YF-21513-00-00
Unavailable
25
BOLT, FLANGE
95817-06010-00
Unavailable
26
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
27
NUT, S/L FLANGE
95607-05200-00
Unavailable
28
DUCT
2HX-14437-01-00
Unavailable
