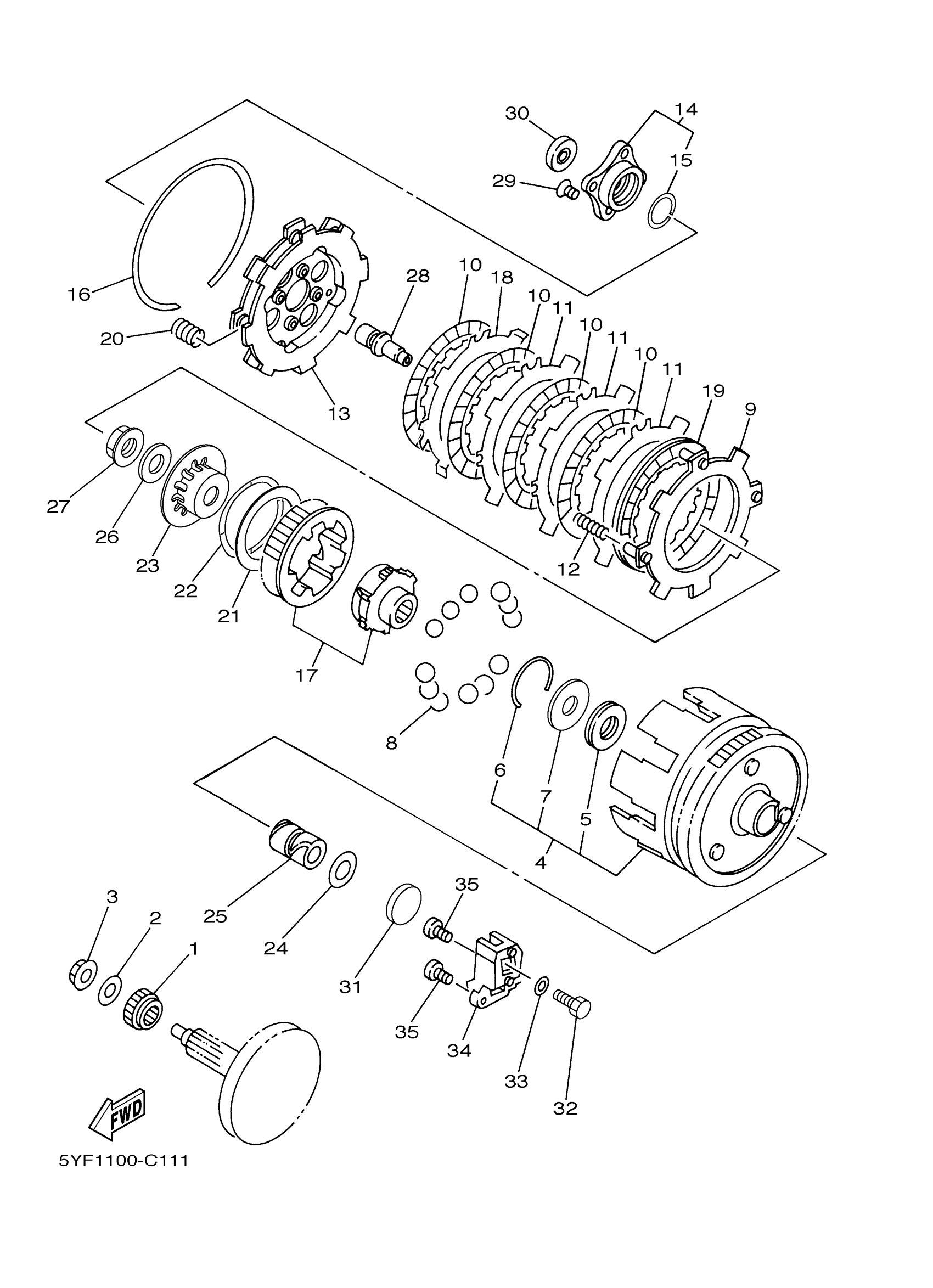

Yamaha YFM50RW (RAPTOR 50) 5YFA 2007 CLUTCH Diagram
#
2
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
4
PRIMARY DRIVEN GEAR COMP.
5YF-16150-00-00
Unavailable
5
. BEARING, FLAT #41
93341-22302-00
Unavailable
6
. CIRCLIP
93450-42112-00
Unavailable
7
. WASHER, THRUST
22F-16153-50-00
Unavailable
11
PLATE, CLUTCH 1
517-16524-10-00
Unavailable
11
PLATE, CLUTCH 3
517-16524-30-00
Unavailable
12
SPRING, COMPRESSION (22F)
90501-09772-00
Unavailable
13
PRESSURE PLATE ASSY
22F-16550-00-00
Unavailable
14
PUSH PLATE ASSY
22F-16590-00-00
Unavailable
15
CIRCLIP(2FL)
93420-26077-00
Unavailable
16
CIRCLIP (22F)
93451-08094-00
Unavailable
17
CLUTCH BOSS ASSY
22F-16570-00-00
Unavailable
18
PLATE, CLUTCH 1
22F-16524-01-00
Unavailable
19
PLATE, FRICTION
22F-16521-00-00
Unavailable
20
SPRING, COMPRESSION
90501-130A6-00
Unavailable
21
WASHER
22F-16144-00-00
Unavailable
22
SPRING, DAMPER
22F-16318-00-00
Unavailable
23
PLATE, THRUST
22K-16129-02-00
Unavailable
24
PLATE, THRUST
122-16164-00-00
Unavailable
25
SPACER (517)
90560-17146-00
Unavailable
26
WASHER PLATE 248181370000
90201-14220-00
Unavailable
27
NUT(22F)
90179-14469-00
Unavailable
28
ROD, PUSH 1
22K-16356-00-00
Unavailable
29
SCREW, FLAT
98707-06012-00
Unavailable
30
OIL SEAL
93104-10076-00
Unavailable
31
PLUG
90338-28221-00
Unavailable
32
BOLT(8CP)
97017-06014-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
GUIDE, PUSH ROD
22F-16399-00-00
Unavailable
35
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
