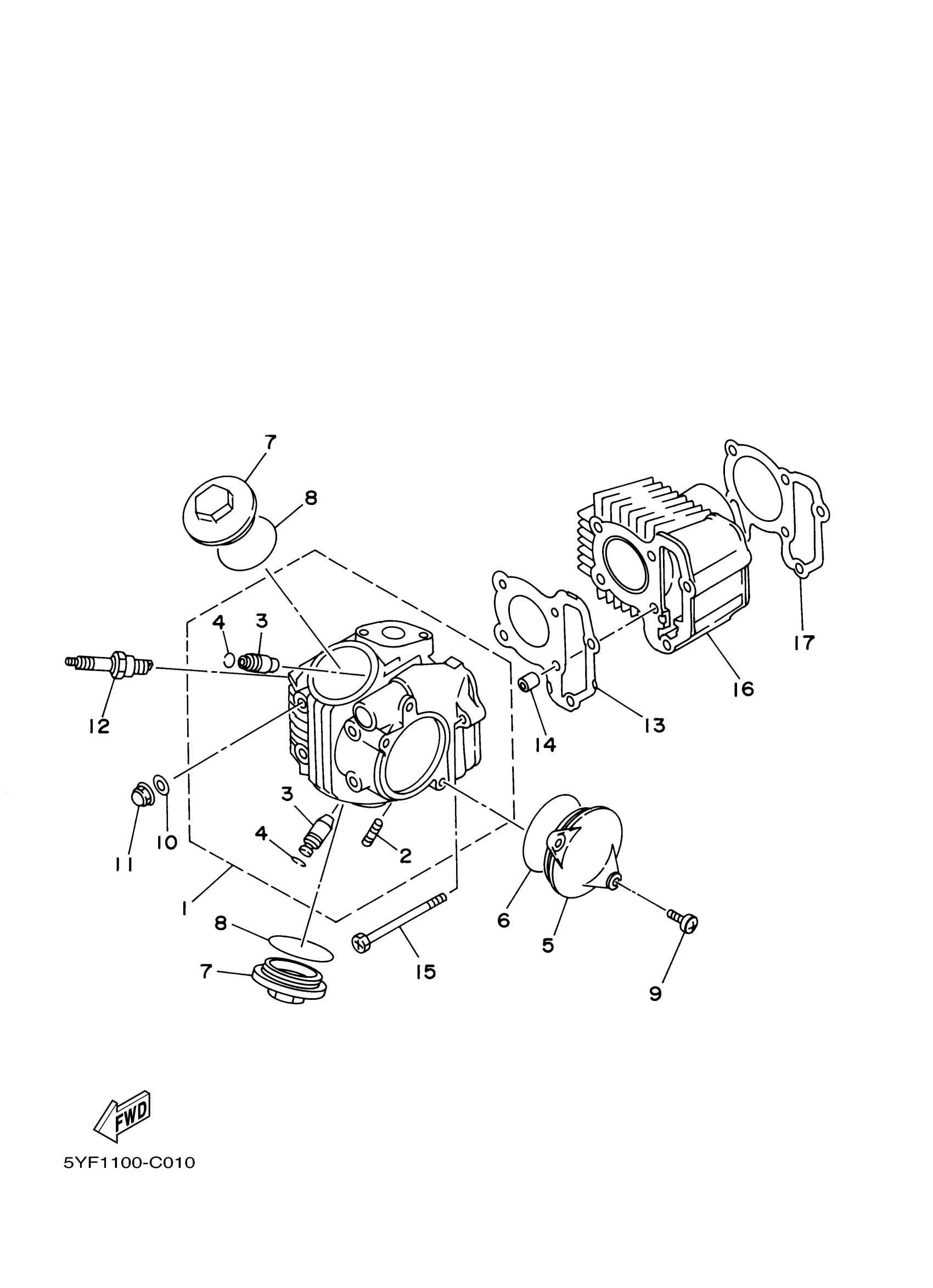

Yamaha YFM50RV (RAPTOR 50) 5YF7 2006 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

37X-11110-02-00

$385.62

2

BOLT

22F-14651-00-00

$5.70

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

4

CIRCLIP (22F)

93440-10109-00

$5.29

5

COVER, CYLINDER HEAD SIDE 1

22F-11185-10-00

Unavailable

6

O-RING (22F)

93210-63556-00

$6.49

7

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

8

O-RING(55X)

93210-44704-00

$5.34

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

10

WASHER, PLATE (22F)

90201-066F0-00

$5.86

11

NUT, CROWN(2GM)

90176-06065-00

$6.45

12

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

$3.77

13

GASKET, CYLINDER HEAD 1

46J-11181-00-00

Unavailable

14

PIN, DOWEL

99530-08012-00

$4.89

15

BOLT, FLANGE(4NM)

95027-06085-00

$6.39

16

CYLINDER 1

22F-11311-02-00

Unavailable

17

GASKET, CYLINDER

22F-11351-01-00

Unavailable
