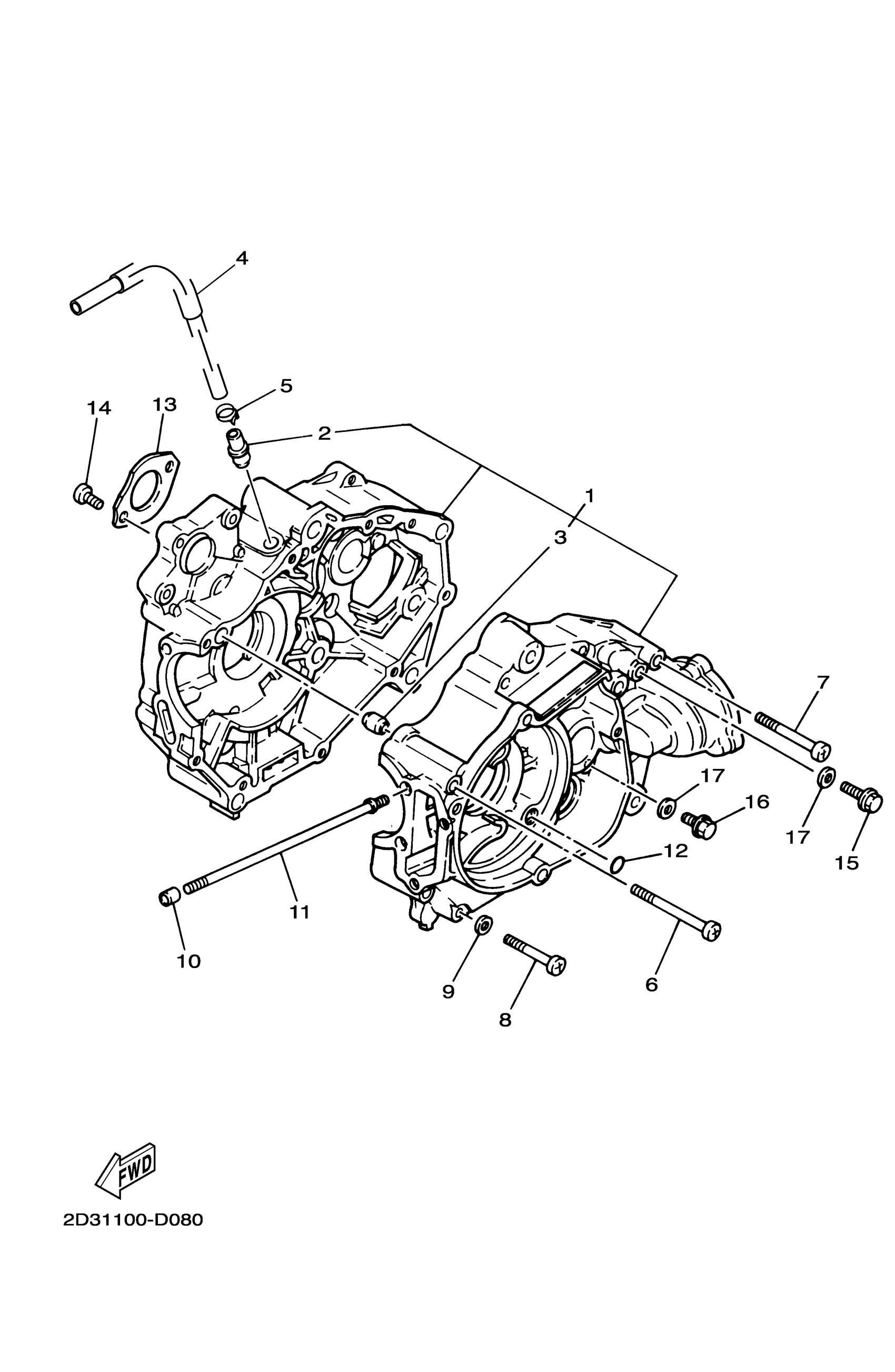

Yamaha YFM50RV (RAPTOR 50) 5YF7 2006 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2FJ-15100-01-00
Unavailable
2
PIPE, BREATHER 2
59V-11167-00-00
Unavailable
4
PIPE, BREATHER 1
2D3-11166-00-00
Unavailable
9
GASKET 256113960000
90430-06014-00
Unavailable
10
PIN, DOWEL
99530-08012-00
Unavailable
13
PLATE, BEARING COVER
22F-15383-01-00
Unavailable
15
BOLT, FLANGE
95817-06025-00
Unavailable
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
GASKET (4V2)
90430-06166-00
Unavailable
