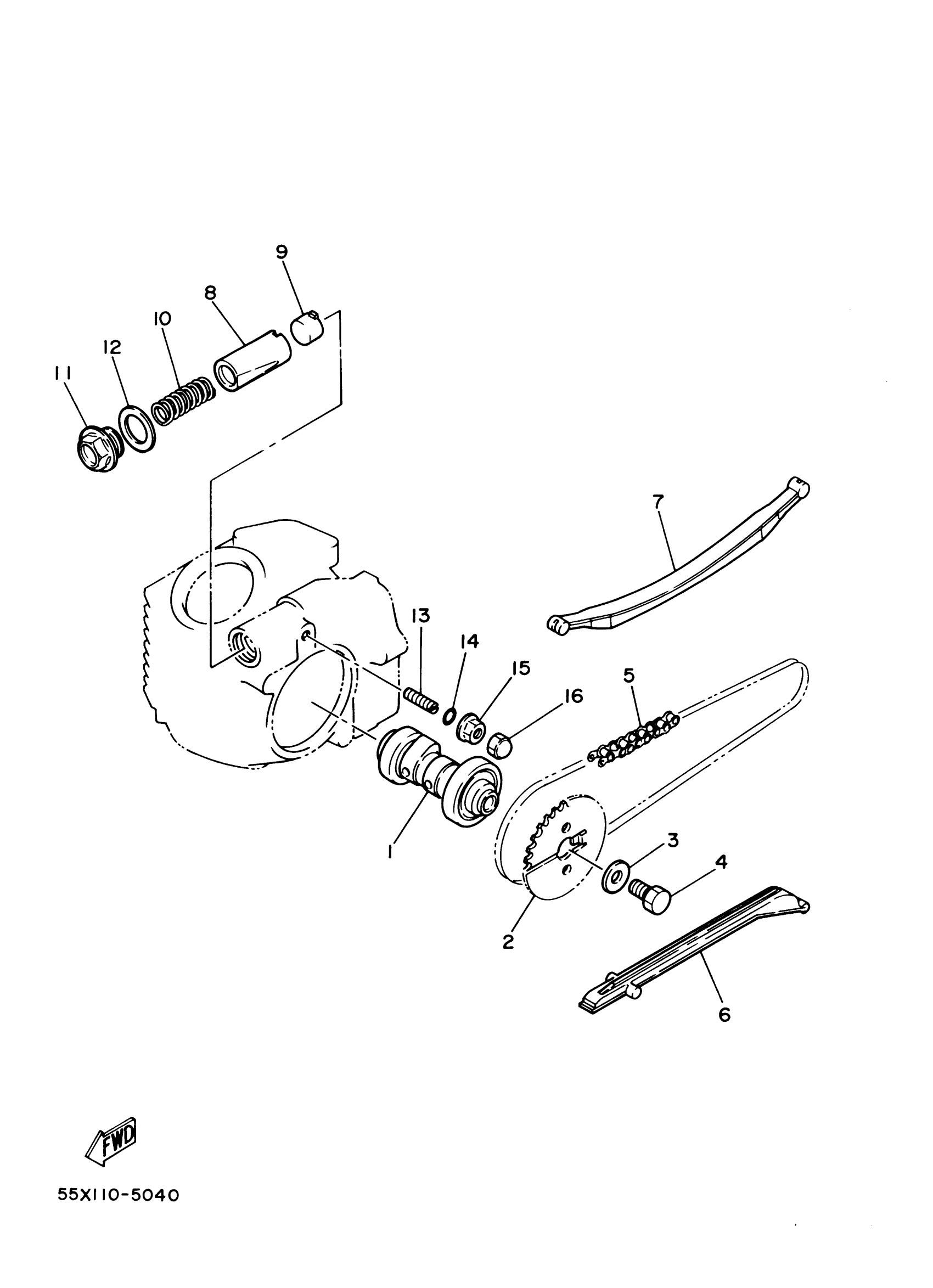

Yamaha YFM50RV (RAPTOR 50) 5YF7 2006 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

55X-12170-00-00

Unavailable

SPROCKET, CAM CHAIN

50M-12176-00-00

$20.00

WASHER (853)

90201-08326-00

$5.75

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

CHAIN(2FJ)

94580-25082-00

$18.88

GUIDE, STOPPER 1

22F-12231-02-00

Unavailable

GUIDE, STOPPER 2

22F-12241-01-00

Unavailable

ROD, CHAIN TENSIONER

22F-12217-01-00

Unavailable

PLUG, STRAIGHT (22F)

90334-14037-00

$6.56

SPRING, COMPRESSION (22F)

90501-10710-00

$5.29

PLUG, STRAIGHT SCREW (22F)

90340-18092-00

$9.71

WASHER, PLATE (22F)

90201-186F1-00

$6.12

BOLT SET 257163430000

90113-06009-00

Unavailable

O-RING (11M)

93210-07540-00

$5.39

NUT

90179-06387-00

Unavailable

NUT(4MY)

95307-06800-00

Unavailable
