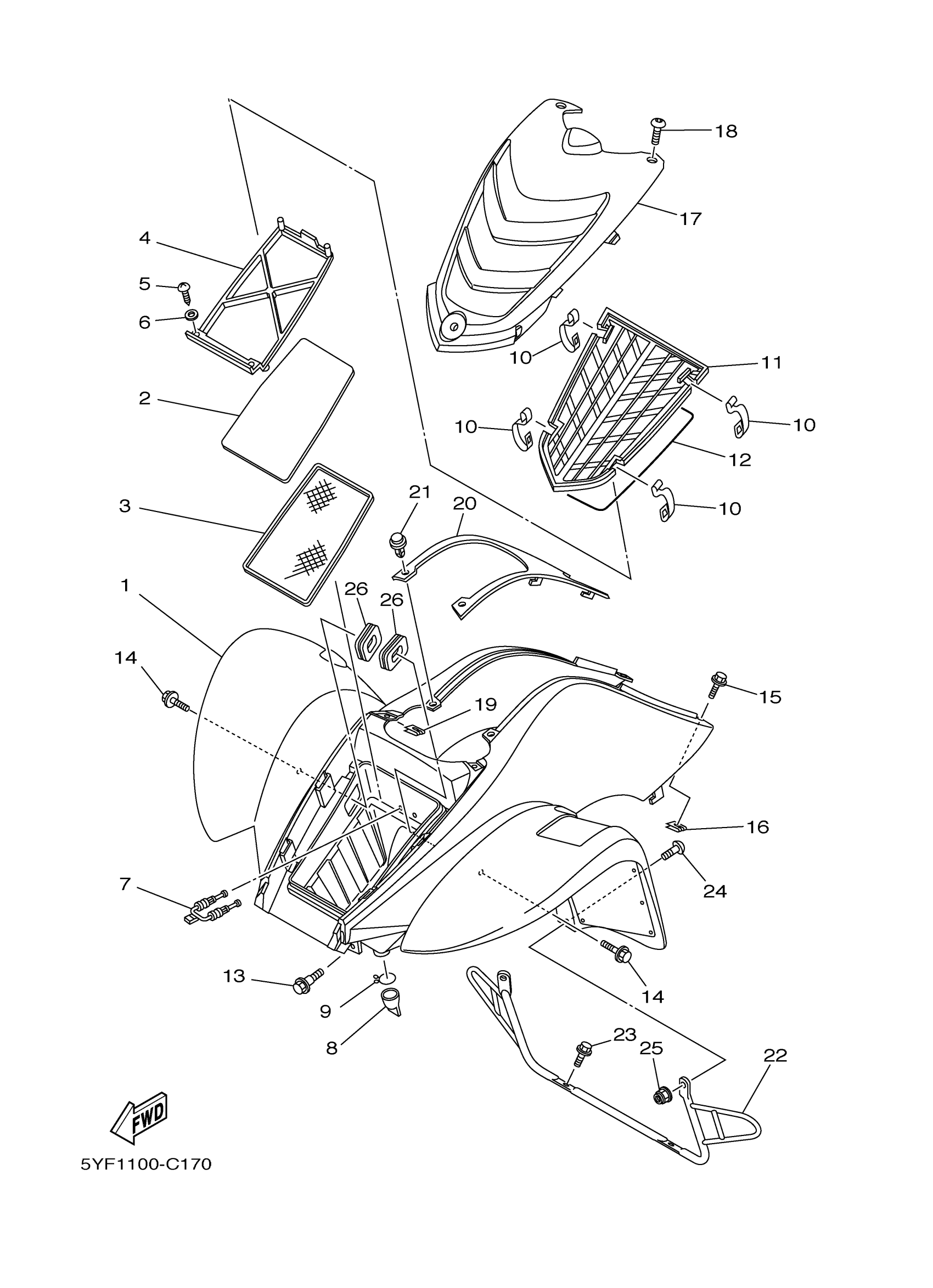

Yamaha YFM50RT (RAPTOR 50) 5YF4 2005 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5YF-W2151-02-00

Unavailable

1

FRONT FENDER COMP.

5YF-W2151-21-00

Unavailable

2

ELEMENT, AIR CLEANER

55X-14451-00-00

$9.99

3

PLATE, ELEMENT

55X-14472-01-00

Unavailable

4

GUIDE

55X-14458-00-00

Unavailable

5

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

6

WASHER(6E1)

92907-04200-00

Unavailable

7

HOOK

55X-14436-00-00

Unavailable

8

SEAL

59V-14457-00-00

$6.99

9

CLIP (21V)

90467-22080-00

$8.49

10

HOOK

5TH-14436-00-00

$9.99

11

CAP, CLEANER CASE 1

5TH-14412-00-00

Unavailable

12

SEAL

1VJ-14462-00-00

$18.49

13

BOLT(3KJ)

90109-063F1-00

$2.97

14

BOLT, WITH WASHER

90119-06242-00

$7.49

15

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable

16

NUT, SPRING

90183-05008-00

Unavailable

17

FENDER, FRONT 2

5TH-21556-00-00

Unavailable

17

FENDER, FRONT 2

5TH-21556-10-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

19

NUT, SPRING

90183-05008-00

Unavailable

20

COVER, TOP

5TH-2171A-00-00

Unavailable

20

COVER, TOP (BLUISH WHITE SOLID 1)

5TH-2171A-20-00

Unavailable

21

RIVET

90269-06002-00

Unavailable

22

STAY, FENDER 1

5YF-21513-00-00

Unavailable

23

BOLT, FLANGE

95817-06010-00

Unavailable

24

SCREW, BINDING (8K8)

90154-05006-00

Unavailable

25

NUT, S/L FLANGE

95607-05200-00

Unavailable

26

DUCT

2HX-14437-01-00

Unavailable
