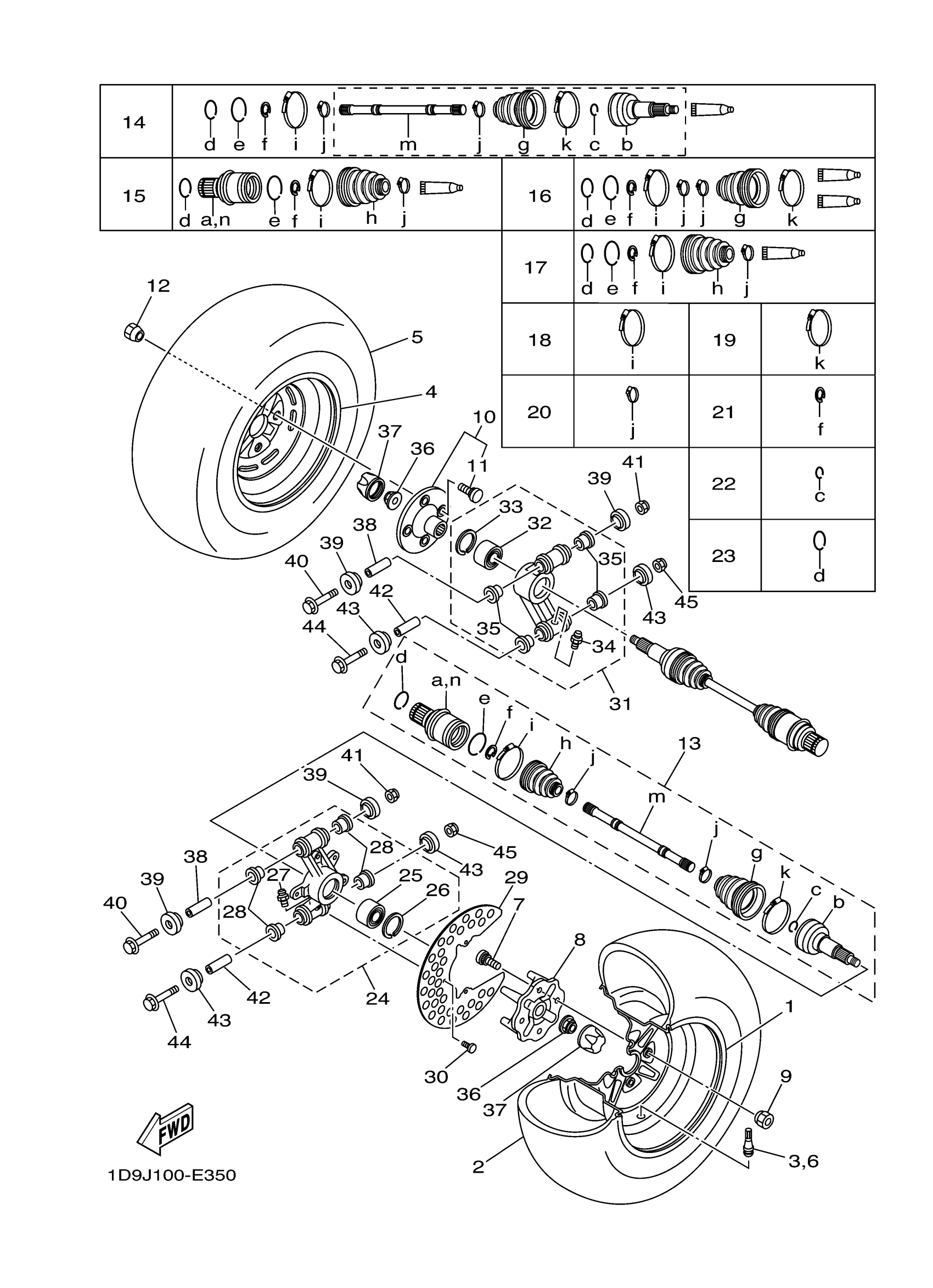

Yamaha YFM4FGXR (GRIZZLY 400 4WD) 1P1D1 2008 REAR WHEEL Diagram
#
1
REAR WHEEL COMP.
1D9-F5390-20-00
Unavailable
2
TIRE (AT25X10-12 M980)
94110-12809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
REAR WHEEL COMP.
1D9-F5390-20-00
Unavailable
5
TIRE (AT25X10-12 M980)
94110-12809-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
8
HUB, REAR
1D9-F5311-01-00
Unavailable
10
HUB SUB-ASSY
1D9-F532E-01-00
Unavailable
13
REAR DRIVE SHAFT ASSY
4S2-2531H-00-00
Unavailable
15
DOUBLE OFF SET JOINT
4S1-2530V-00-00
Unavailable
16
BOOT SET (BALL JOINT)
4S1-2530X-00-00
Unavailable
17
BOOT SET(DOUBLE OFFSET JOINT)
4S1-2530Y-00-00
Unavailable
18
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
19
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
20
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
21
SNAP RING
2HR-2512J-00-00
Unavailable
22
CIRCLIP
4KB-2512H-00-00
Unavailable
23
CLIP, SPRING
5KM-2536E-10-00
Unavailable
24
REAR KNUCKLE ASSY
1D9-F530F-01-00
Unavailable
25
BEARING
93305-00602-00
Unavailable
26
CIRCLIP
99009-55500-00
Unavailable
27
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
28
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
29
PROTECTOR, DISC BRAKE
1D9-F5718-00-00
Unavailable
30
SCREW(3LD)
90149-06280-00
Unavailable
31
REAR KNUCKLE ASSY.
1D9-F532F-01-00
Unavailable
32
BEARING
93305-00602-00
Unavailable
33
CIRCLIP
99009-55500-00
Unavailable
34
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
35
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
36
NUT
90179-20016-00
Unavailable
37
CAP, WHEEL
5GT-2512A-00-00
Unavailable
38
SPACER
5KM-23448-00-00
Unavailable
39
COVER, THRUST 1
3JN-23517-00-00
Unavailable
40
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
41
NUT, SELF-LOCKING
90185-10012-00
Unavailable
42
SPACER
5KM-23448-00-00
Unavailable
43
COVER, THRUST 1
3JN-23517-00-00
Unavailable
44
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
45
NUT, SELF-LOCKING
90185-10012-00
Unavailable
