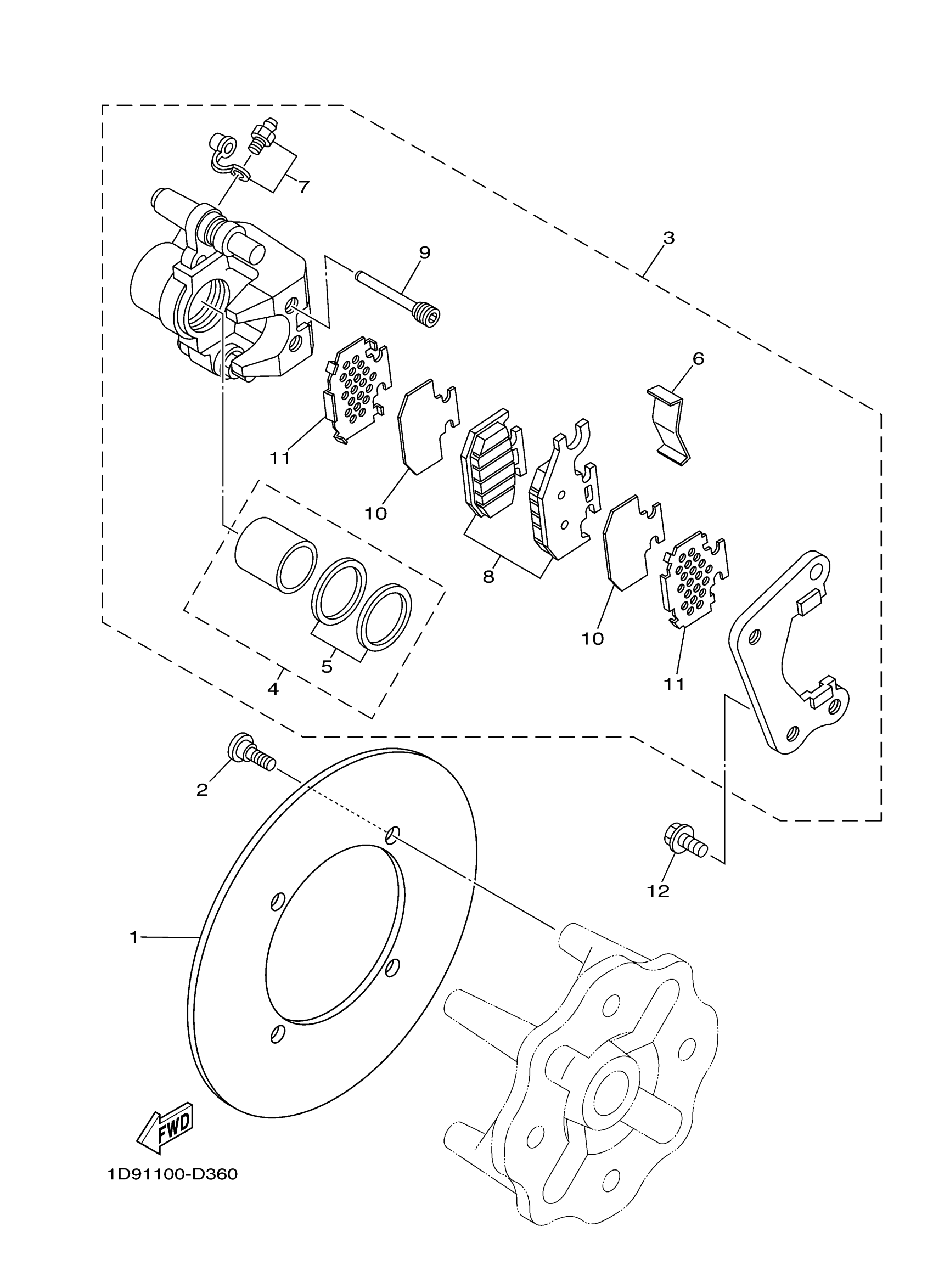

Yamaha YFM4FGXR (GRIZZLY 400 4WD) 1P1D1 2008 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

1D9-F5831-00-00

Unavailable

2

BOLT

90109-08087-00

$2.47

3

CALIPER ASSY, REAR 1

1P1-2580V-00-00

$271.26

4

PISTON ASSY, CALIPER

3TB-W0057-00-00

$55.41

5

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

6

SUPPORT, PAD

4GY-25919-50-00

Unavailable

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT

1P1-W0046-00-00

Unavailable

9

PIN, PAD

5GH-25924-00-00

Unavailable

10

SHIM, CALIPER

5UG-25827-00-00

$21.88

11

SHIM, CALIPER

5GH-25828-00-00

$13.33

12

BOLT, FLANGE

90105-08161-00

$5.47
