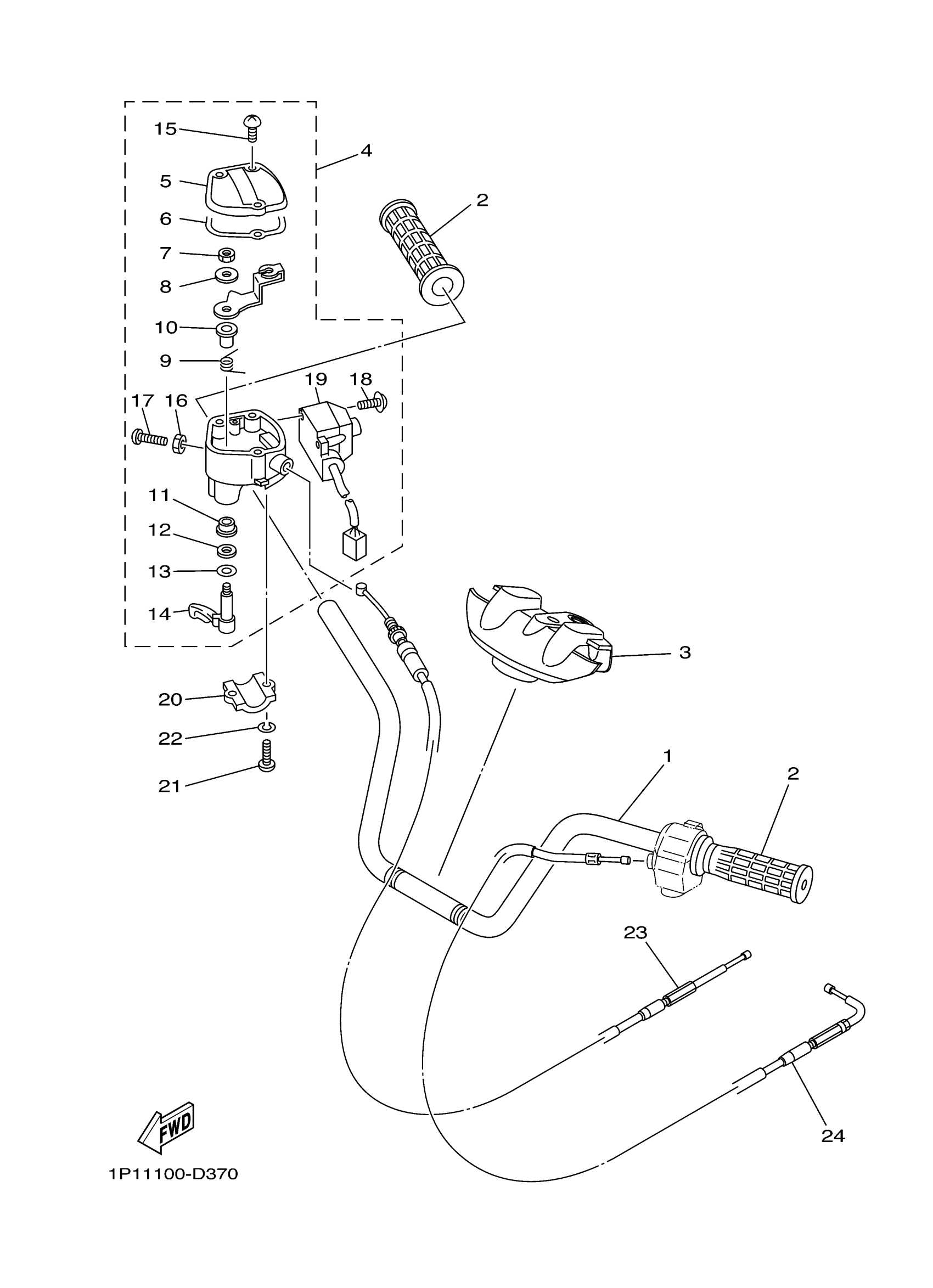

Yamaha YFM4FGW (GRIZZLY 400) 1P19 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

$68.99

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$46.99

4

THROTTLE LEVER ASSY

1P1-26250-01-00

$232.99

5

CAP, GEAR

4KB-2628F-10-00

$30.99

6

GASKET

4KB-2628G-00-00

$13.49

7

NUT, U

95617-05100-00

$9.49

8

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

9

SPRING

1NV-26304-00-00

$11.99

10

COLLAR

1NV-26259-01-00

$7.99

11

COLLAR

1NV-2625K-00-00

$6.99

12

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

13

WASHER

1NV-26129-00-00

$6.99

14

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

15

SCREW(3HE)

90149-04278-00

$2.39

16

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

Unavailable

18

. SCREW, WITH WASHER

97607-04210-00

Unavailable

19

SWITCH, HANDLE 1

1P1-83976-00-00

Unavailable

20

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05020-00

Unavailable

22

WASHER(1RW)

92907-05600-00

Unavailable

23

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

24

CABLE,STARTER 1

5VH-F6331-01-00

Unavailable
