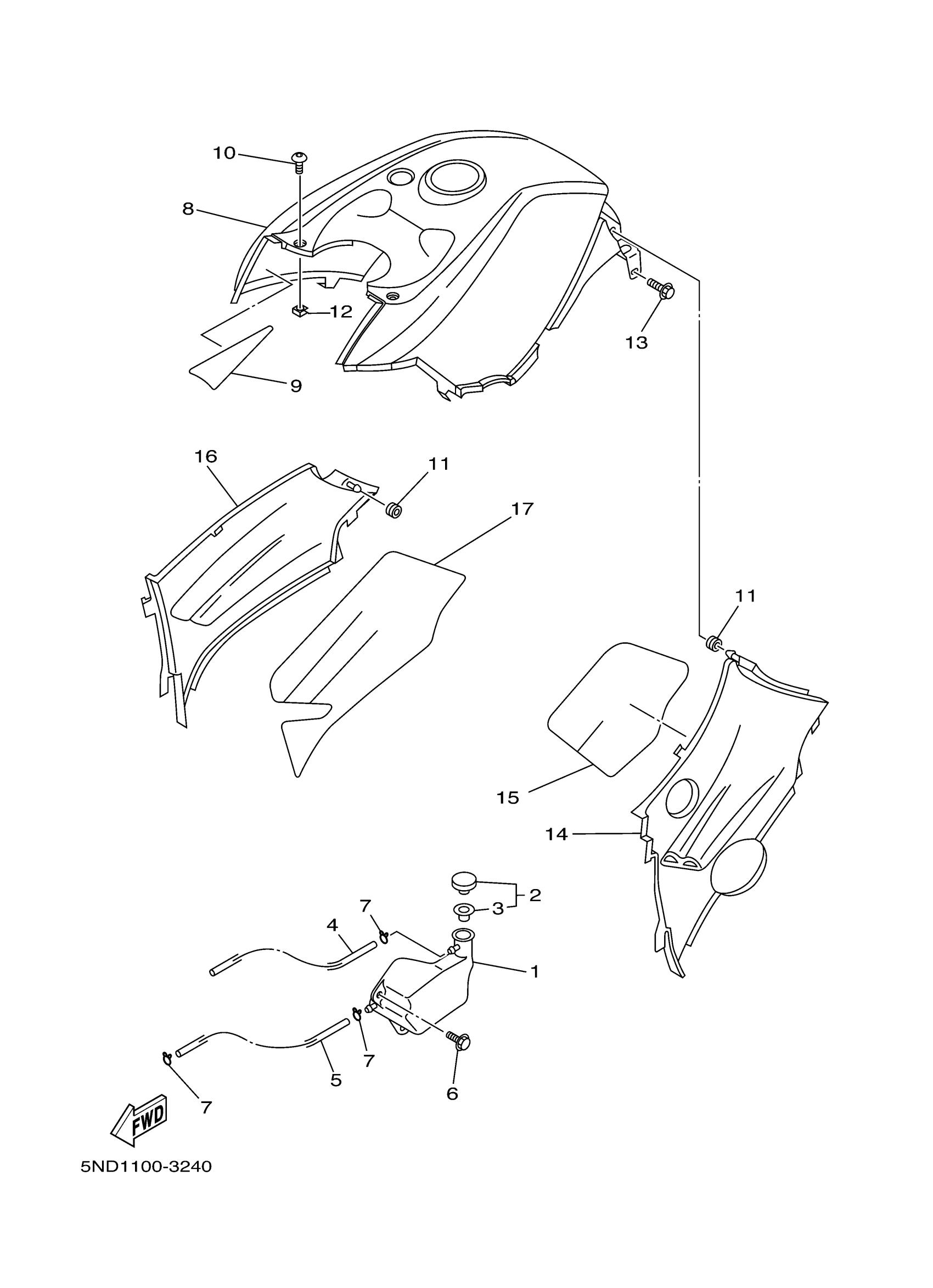

Yamaha YFM4FGW (GRIZZLY 400) 1P19 2007 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

5ND-F1871-00-00

Unavailable

2

CAP

1AA-21815-00-00

$12.99

3

GASKET

1AA-21874-00-00

$7.99

4

HOSE

90445-08811-00

$4.99

5

HOSE

90445-08812-00

Unavailable

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

CLIP 101235600

90467-08003-00

$10.49

8

COVER, TOP

5ND-F171A-01-00

$122.99

8

COVER, TOP

5ND-F171A-11-00

$122.99

8

COVER, TOP

5ND-F171A-51-00

$156.99

9

CLOTH, PROTECTOR

5ND-F174M-00-00

$7.49

10

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

11

GROMMET(4FU)

90480-13567-00

$4.99

12

NUT, SPRING

90183-051A0-00

$3.81

13

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

14

COVER, SIDE 1

5ND-F1711-00-00

Unavailable

15

INSULATOR,SIDE CVR

5ND-F174A-01-00

Unavailable

16

COVER, SIDE 2

5ND-F1721-00-00

Unavailable

17

INSULATOR, SIDE COVER

5ND-F174T-01-00

Unavailable
