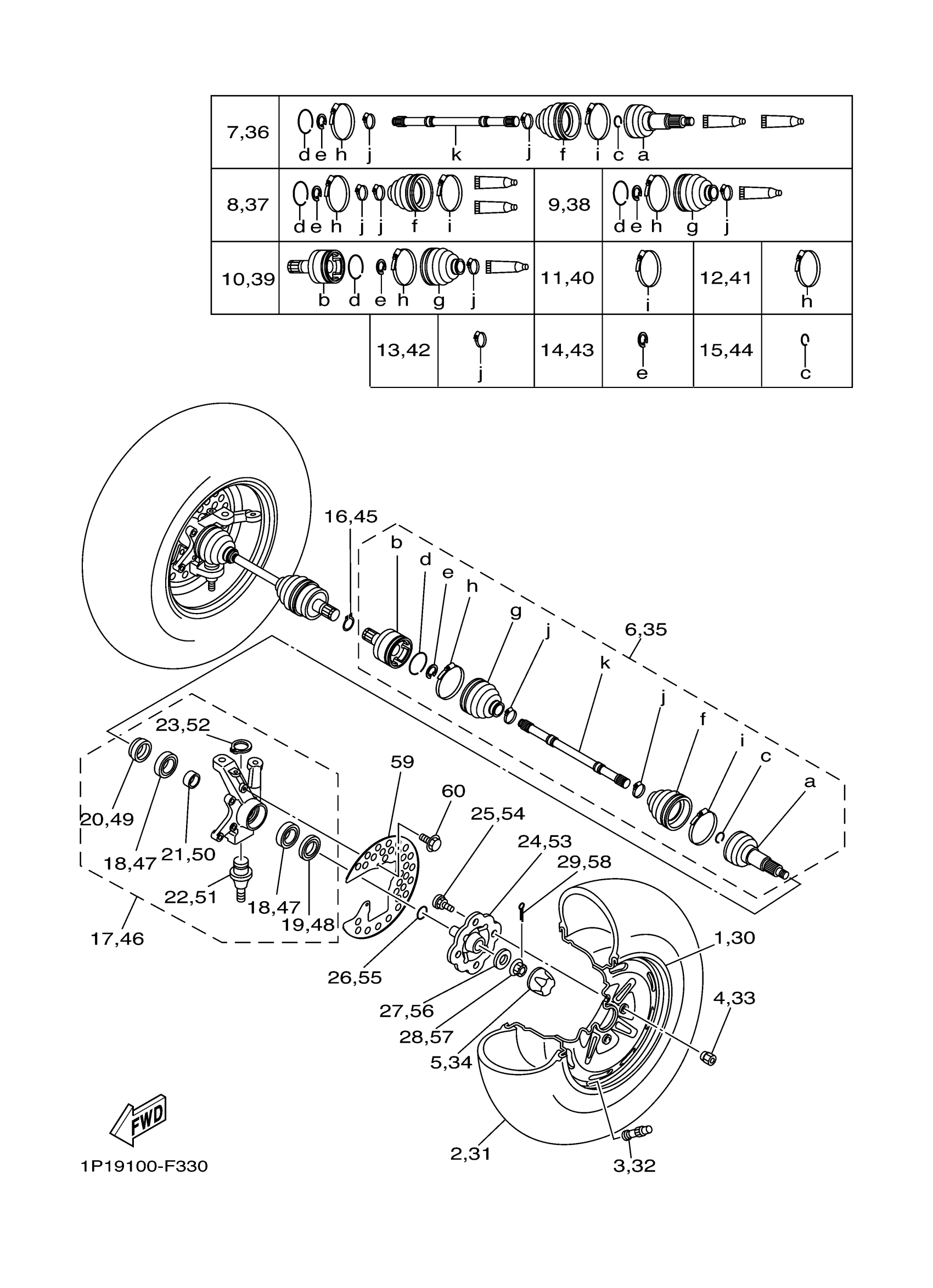

Yamaha YFM4FGW (GRIZZLY 400) 1P19 2007 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

1D9-F5180-20-00

Unavailable

2

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

5GT-2512A-00-00

$9.99

6

DRIVE SHAFT ASSY

5TE-F518F-00-00

Unavailable

7

. BALL JOINT SET

5TE-F510F-00-00

Unavailable

8

BOOT SET (BALL JOINT)

5GH-2510G-00-00

Unavailable

9

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

10

DOUBLE OFF SET JOINT

5GH-2510J-00-00

Unavailable

11

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

12

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

13

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

14

SNAP RING

2HR-2512J-00-00

$6.99

15

CIRCLIP

4KB-2512H-00-00

$6.99

16

CIRCLIP(2HR)

93450-22119-00

Unavailable

17

STEERING KNUCKLE (L)

1D9-F3501-03-00

Unavailable

18

BEARING

93306-006Y2-00

Unavailable

19

OIL SEAL

93106-38046-00

Unavailable

20

OIL SEAL

93106-38047-00

Unavailable

21

COLLAR

90387-30008-00

Unavailable

22

BALL JOINT 1

37S-23549-01-00

Unavailable

23

CIRCLIP

93410-32075-00

Unavailable

24

HUB,FRONT

5ND-F5111-30-00

Unavailable

25

BOLT, SERRATION

90114-10014-00

Unavailable

26

O-RING(47X)

93210-27666-00

Unavailable

27

WASHER, PLATE

90201-16804-00

Unavailable

28

NUT, CASTLE

90171-16001-00

Unavailable

29

PIN, COTTER

91490-30030-00

Unavailable

30

WHEEL COMP.

1D9-F5180-20-00

Unavailable

31

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

32

VALVE, RIM

93900-00812-00

Unavailable

33

NUT(2HR)

90179-10540-00

$5.60

34

CAP, WHEEL

5GT-2512A-00-00

$9.99

35

DRIVE SHAFT ASSY

5TE-F518F-00-00

Unavailable

36

. BALL JOINT SET

5TE-F510F-00-00

Unavailable

37

BOOT SET (BALL JOINT)

5GH-2510G-00-00

Unavailable

38

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

39

DOUBLE OFF SET JOINT

5GH-2510J-00-00

Unavailable

40

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

41

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

42

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

43

SNAP RING

2HR-2512J-00-00

$6.99

44

CIRCLIP

4KB-2512H-00-00

$6.99

45

CIRCLIP(2HR)

93450-22119-00

Unavailable

46

STEERING,KNUCKLE (R)

1D9-F3502-03-00

Unavailable

47

BEARING

93306-006Y2-00

Unavailable

48

OIL SEAL

93106-38046-00

Unavailable

49

OIL SEAL

93106-38047-00

Unavailable

50

COLLAR

90387-30008-00

Unavailable

51

BALL JOINT 1

37S-23549-01-00

Unavailable

52

CIRCLIP

93410-32075-00

Unavailable

53

HUB,FRONT

5ND-F5111-30-00

Unavailable

54

BOLT, SERRATION

90114-10014-00

Unavailable

55

O-RING(47X)

93210-27666-00

Unavailable

56

WASHER, PLATE

90201-16804-00

Unavailable

57

NUT, CASTLE

90171-16001-00

Unavailable

58

PIN, COTTER

91490-30030-00

Unavailable

59

RING, WHEEL 1 (LEF

1D9-F514A-00-00

Unavailable

60

BOLT, FLANGE

95817-06012-00

Unavailable
