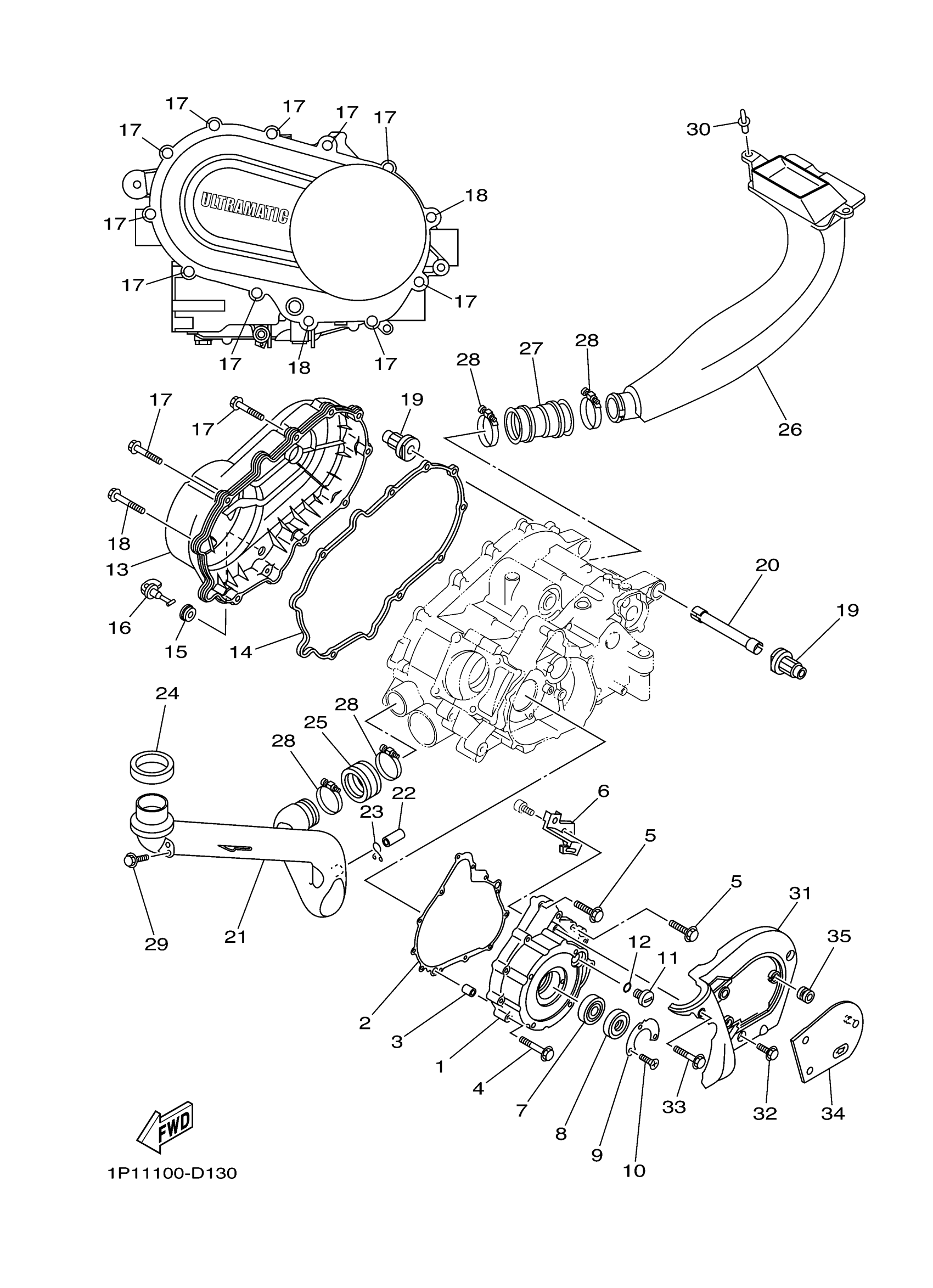

Yamaha YFM4FGW (GRIZZLY 400) 1P19 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5GH-15411-01-00

$281.99

2

GASKET, CRANKCASE COVER 1

5GH-15451-00-00

$23.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SMALL FLANGE

95027-06040-00

$3.28

5

BOLT, SMALL FLANGE

95027-06030-00

$3.98

6

PLATE

5GH-15113-00-00

Unavailable

7

BEARING(55X)

93306-07801-00

$55.99

8

OIL SEAL

93102-28476-00

$22.99

9

WASHER, THRUST

21V-15719-00-00

Unavailable

10

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

11

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

12

O-RING (2H9)

93210-14369-00

$7.49

13

COVER, CRANKCASE 3

5ND-15431-00-00

Unavailable

14

SEAL, CRANKCASE

5GH-15379-00-00

$41.99

15

GROMMET (462)

90480-13018-00

$8.49

16

PLUG, DRAIN

5KM-15351-00-00

Unavailable

17

BOLT, FLANGE

95817-06035-00

Unavailable

18

BOLT, FLANGE

95817-06045-00

Unavailable

19

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

Unavailable

20

SPACER, ENGINE MOUNT

5GH-15317-00-00

Unavailable

21

DUCT,AIR

5ND-E5471-01-00

Unavailable

22

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

23

CLIP(62Y)

90467-15M14-00

Unavailable

24

SEAL, CLEANER COVER

5ND-E5434-00-00

Unavailable

25

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

26

DUCT, AIR

1D9-E5473-00-00

Unavailable

27

SEAL, AIR DUCT

1D9-E5474-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-64004-00

Unavailable

29

BOLT, FLANGE

95817-06014-00

Unavailable

30

RIVET

90269-08813-00

Unavailable

31

COVER 2

5ND-E5423-01-00

Unavailable

32

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

34

COVER

5ND-E5413-00-00

Unavailable

35

GROMMET

90480-13014-00

Unavailable
