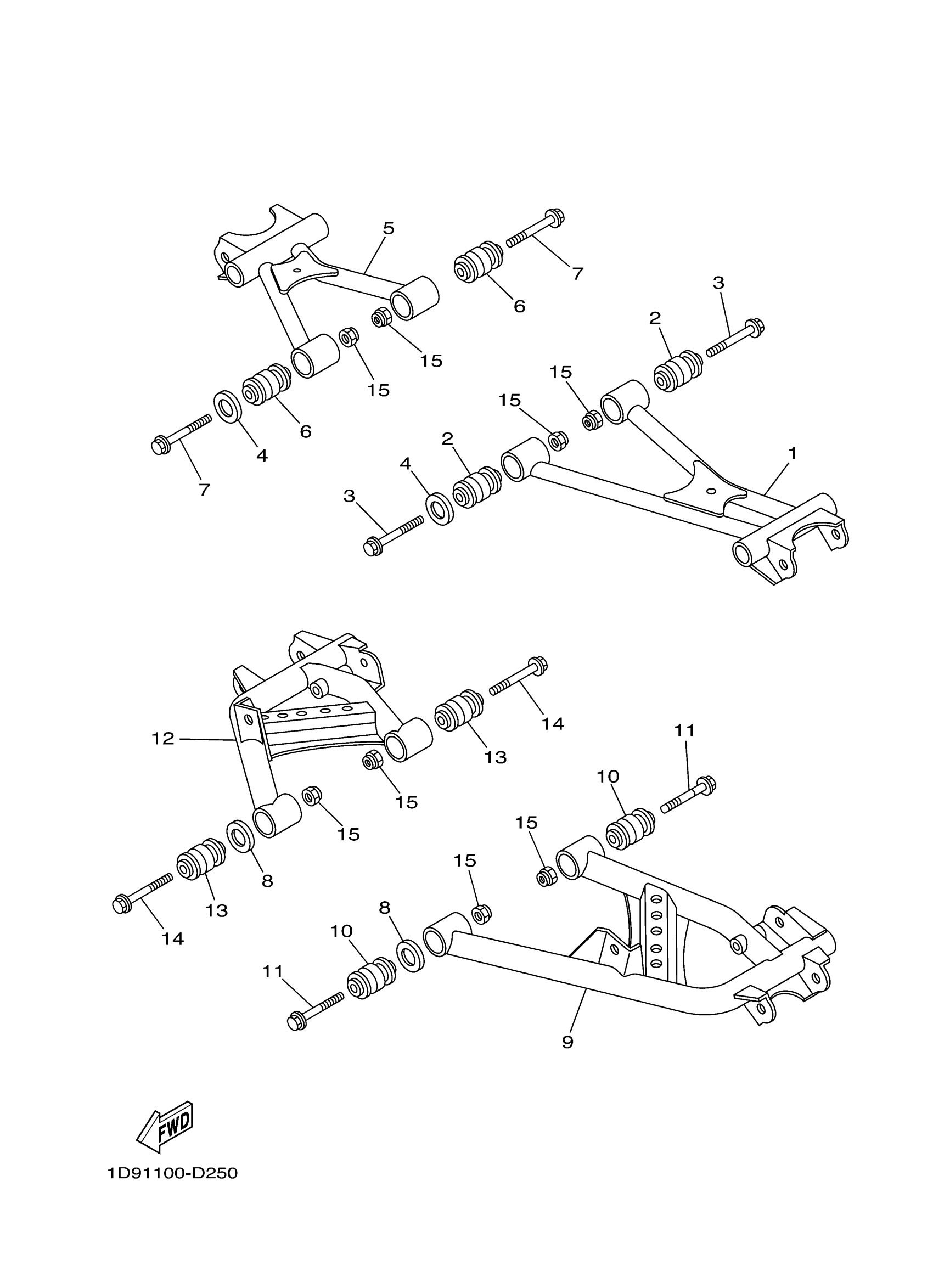

Yamaha YFM4FGHX (GRIZZLY 400 4WD HUNTER) 1P1G 2008 REAR ARM Diagram

#

Description

Price

1

ARM, REAR 1

1D9-F2171-00-00

Unavailable

2

BUSH

5KM-23526-00-00

$19.99

3

BOLT, FLANGE

90105-10267-00

$9.49

4

WASHER

5KM-22149-10-00

$7.99

5

ARM, REAR 2

1D9-F2172-00-00

Unavailable

6

BUSH

5KM-23526-00-00

$19.99

7

BOLT, FLANGE

90105-10267-00

$9.49

8

WASHER

5KM-22149-10-00

$7.99

9

ARM 1

1D9-F217M-00-00

Unavailable

10

BUSH

5KM-23526-00-00

$19.99

11

BOLT, FLANGE

90105-10267-00

$9.49

12

ARM 2

1D9-F217N-00-00

Unavailable

13

BUSH

5KM-23526-00-00

$19.99

14

BOLT, FLANGE

90105-10267-00

$9.49

15

NUT, SELF-LOCKING

90185-10012-00

$9.49
