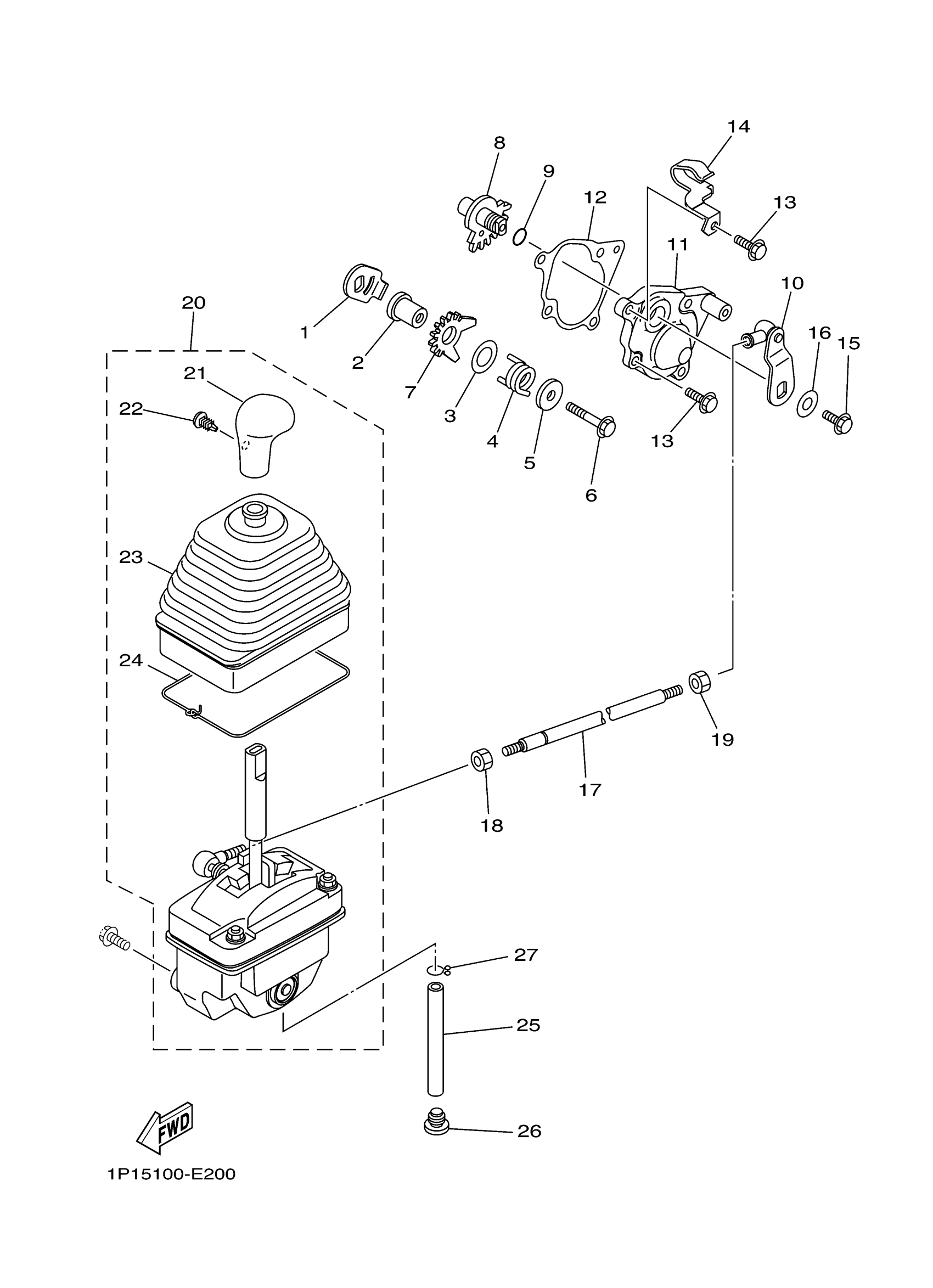

Yamaha YFM4FGHW (GRIZZLY 400 HUNTER) 1P1C 2007 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

WASHER, PLATE

90201-13013-00

$8.49

4

SPRING, TORSION(1YW)

90508-35764-00

$5.60

5

WASHER, PLATE

90201-06M02-00

Unavailable

6

BOLT, FLANGE

95817-06035-00

$7.49

7

LEVER

5KM-18191-00-00

$24.99

8

SHAFT

5GH-18197-00-00

Unavailable

9

O-RING (P95)

93210-11073-00

$7.49

10

SHIFT GUIDE COMP.

5GH-18104-00-00

Unavailable

11

COVER, SHIFT SHAFT

5GH-18129-01-00

Unavailable

12

GASKET, LEVER STOP

5GH-18146-00-00

$5.49

13

BOLT(7U8)

97080-06020-00

Unavailable

14

CLAMP(3JD)

90465-08336-00

$10.49

15

BOLT, FLANGE

95817-06016-00

$2.75

16

WASHER, PLATE

90201-06M02-00

Unavailable

17

ROD, SHIFT

5GH-18115-01-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

20

SHIFTER ASSY

1P1-18300-01-00

Unavailable

21

. KNOB, SHIFT LEVER

1P1-18174-00-00

Unavailable

22

RIVET(81E)

90269-05055-00

Unavailable

23

BOOTS, SEALING

5GH-18131-00-00

Unavailable

24

STOPPER, RUBBER

5GH-18617-00-00

Unavailable

25

HOSE

90446-16001-00

Unavailable

26

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

27

CLIP (806-24358-00)

90467-15012-00

Unavailable
