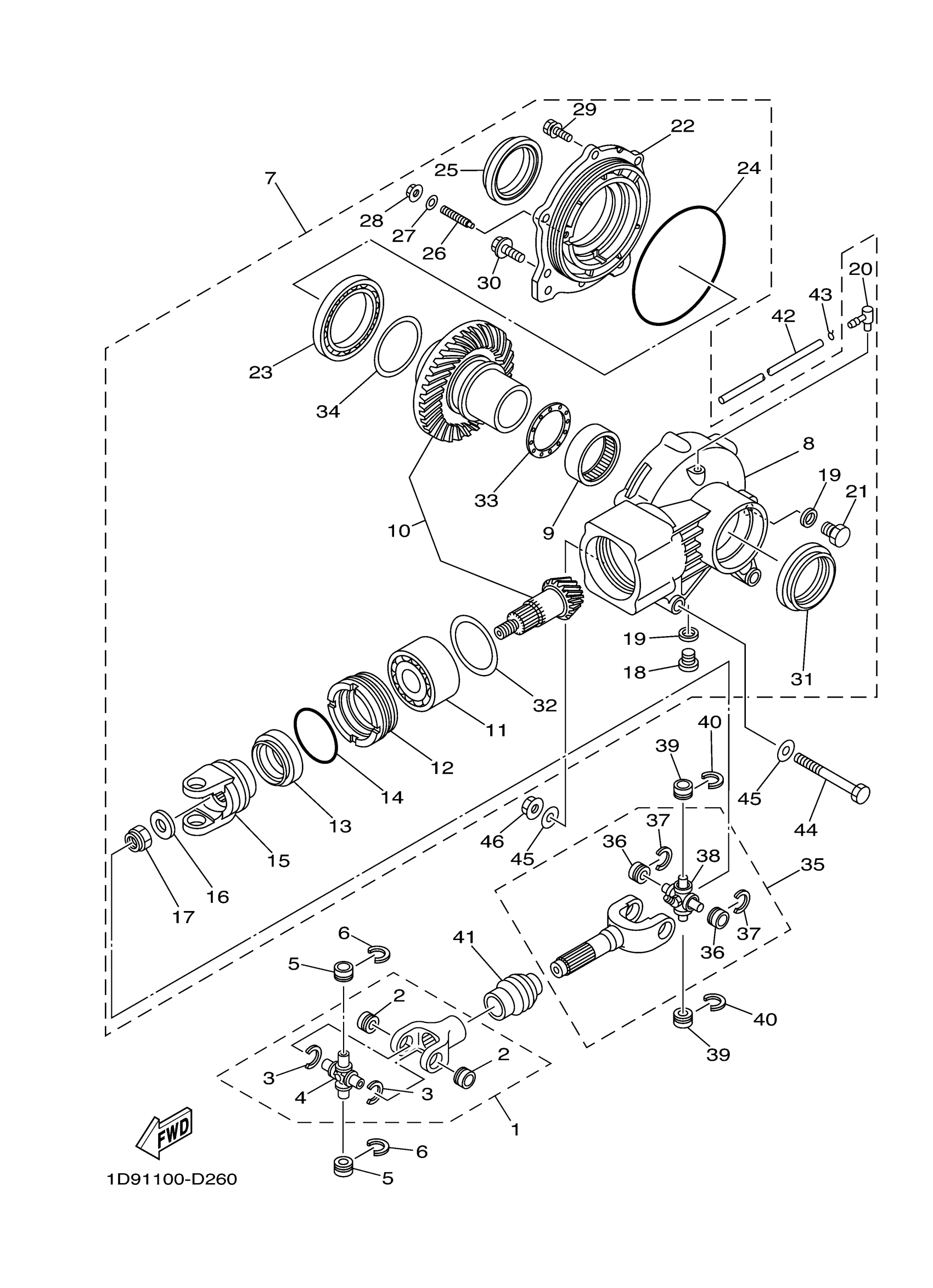

Yamaha YFM4FGHW (GRIZZLY 400 HUNTER) 1P1C 2007 DRIVE SHAFT Diagram
#
7
RR AXL GR CASE ASY
1D9-G6101-01-00
Unavailable
8
HOUSING, DRIVE SHAFT
1D9-G6151-00-00
Unavailable
10
RING GEAR SET
1D9-461A0-00-00
Unavailable
11
BEARING
93305-005Y0-00
Unavailable
12
NUT
1D9-44583-00-00
Unavailable
15
YOKE, JOINT
1D9-46186-00-00
Unavailable
16
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
17
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
18
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
19
GASKET
214-11198-01-00
Unavailable
20
BREATHER
5UG-15371-00-00
Unavailable
21
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
22
HOUSING, BEARING
1D9-G6152-00-00
Unavailable
23
BEARING
93316-013Y0-00
Unavailable
24
O-RING (22U)
93211-39569-00
Unavailable
25
OIL SEAL
93102-60800-00
Unavailable
26
STOPPER, RING GEAR
2HR-46156-00-00
Unavailable
27
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
28
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
29
BOLT, WITH WASHER(72H)
97527-08525-00
Unavailable
30
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
31
OIL SEAL
93102-60800-00
Unavailable
32
SHIM, THRUST (T=0.15MM)
1D9-G6119-00-00
Unavailable
32
SHIM, THRUST (T=0.30MM)
1D9-G6119-10-00
Unavailable
32
SHIM, THRUST (T=0.40MM)
1D9-G6119-20-00
Unavailable
32
SHIM, THRUST (T=0.45MM)
1D9-G6119-30-00
Unavailable
32
SHIM, THRUST (T=0.50MM)
1D9-G6119-40-00
Unavailable
33
. SHIM, THRUST(T=10MM)
4XE-G6118-10-00
Unavailable
33
WASHER, THRUST (1.1MM)
4XE-G6118-11-00
Unavailable
33
. SHIM, THRUST(T=12MM)
4XE-G6118-12-00
Unavailable
33
WASHER, THRUST (1.3MM)
4XE-G6118-13-00
Unavailable
33
WASHER, THRUST (1.4MM)
4XE-G6118-14-00
Unavailable
33
. SHIM, THRUST(T=15MM)
4XE-G6118-15-00
Unavailable
33
WASHER, THRUST (1.6MM)
4XE-G6118-16-00
Unavailable
33
. SHIM, THRUST(T=17MM)
4XE-G6118-17-00
Unavailable
33
WASHER, THRUST (1.8MM)
4XE-G6118-18-00
Unavailable
33
WASHER, THRUST (1.9MM)
4XE-G6118-19-00
Unavailable
33
. SHIM, THRUST(T=20MM)
4XE-G6118-20-00
Unavailable
33
. SHIM, THRUST(T=21MM)
4XE-G6118-21-00
Unavailable
34
SHIM, RING GEAR (.25MM)
4XE-G6117-25-00
Unavailable
34
SHIM, RING GEAR (.30MM)
4XE-G6117-30-00
Unavailable
34
SHIM, RING GEAR (.35MM)
4XE-G6117-35-00
Unavailable
34
. SHIM, RING GEAR(T=040MM)
4XE-G6117-40-00
Unavailable
34
SHIM, RING GEAR (.45MM)
4XE-G6117-45-00
Unavailable
34
SHIM, RING GEAR (.50MM)
4XE-G6117-50-00
Unavailable
35
CROSS JOINT COMP. 2
1D9-46107-00-00
Unavailable
41
SEAL 1
5GT-46136-00-00
Unavailable
42
HOSE (L900)
90445-078C4-00
Unavailable
43
CLIP (1J7)
90467-07029-00
Unavailable
44
BOLT, FLANGE
90105-10111-00
Unavailable
45
WASHER PLATE 256111740000
90201-10131-00
Unavailable
46
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
