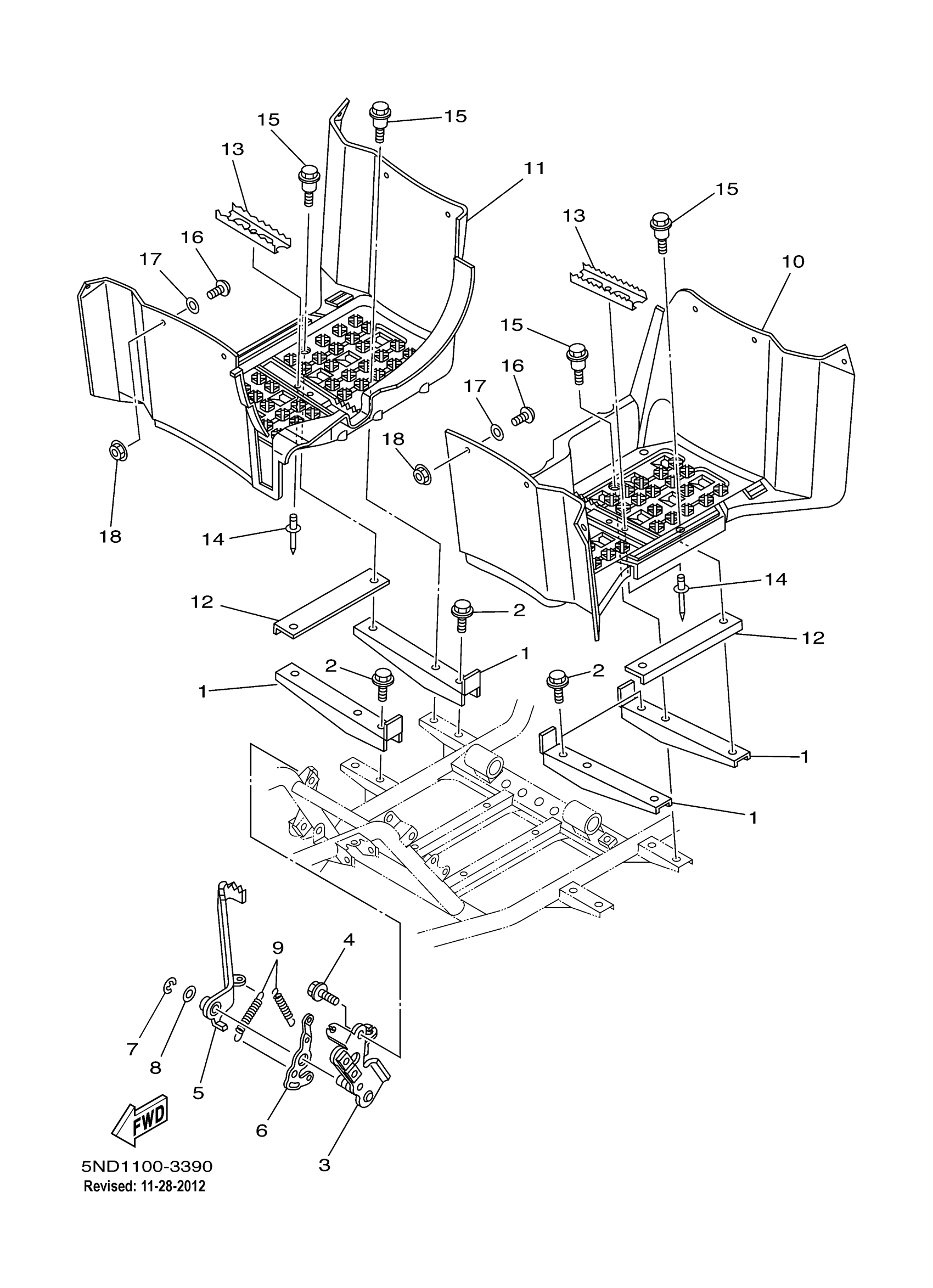

Yamaha YFM4FAV (KODIAK 400 4WD) 1P15 2006 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

5ND-F7471-01-00

$11.20

2

BOLT, FLANGE

95817-08012-00

$3.71

3

BRACKET, FOOTREST

5ND-F7412-11-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$3.71

5

PEDAL, BRAKE

5ND-F7211-10-00

$26.80

6

LEVER, BRAKE PEDAL

5ND-F7252-11-00

Unavailable

7

CIRCLIP (137)

93430-10015-00

$6.98

8

WASHER, PLATE(52G)

90201-144J2-00

$6.03

9

SPRING, TENSION(3JN)

90506-12441-00

$6.75

10

COVER 1 (FOOTREST CVR LH SIDE)

5ND-F7453-01-00

$54.63

11

COVER 2 (FOOTREST CVR RH SIDE)

5ND-F7463-01-00

Unavailable

12

PLATE 1

5ND-F7445-00-00

$7.70

13

ARM 1

5UH-F741A-10-00

$4.82

14

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

15

BOLT

90109-06072-00

$4.66

16

SCREW(3YF)

90149-05299-00

Unavailable

17

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

18

NUT, NYLON

95707-05300-00

Unavailable
