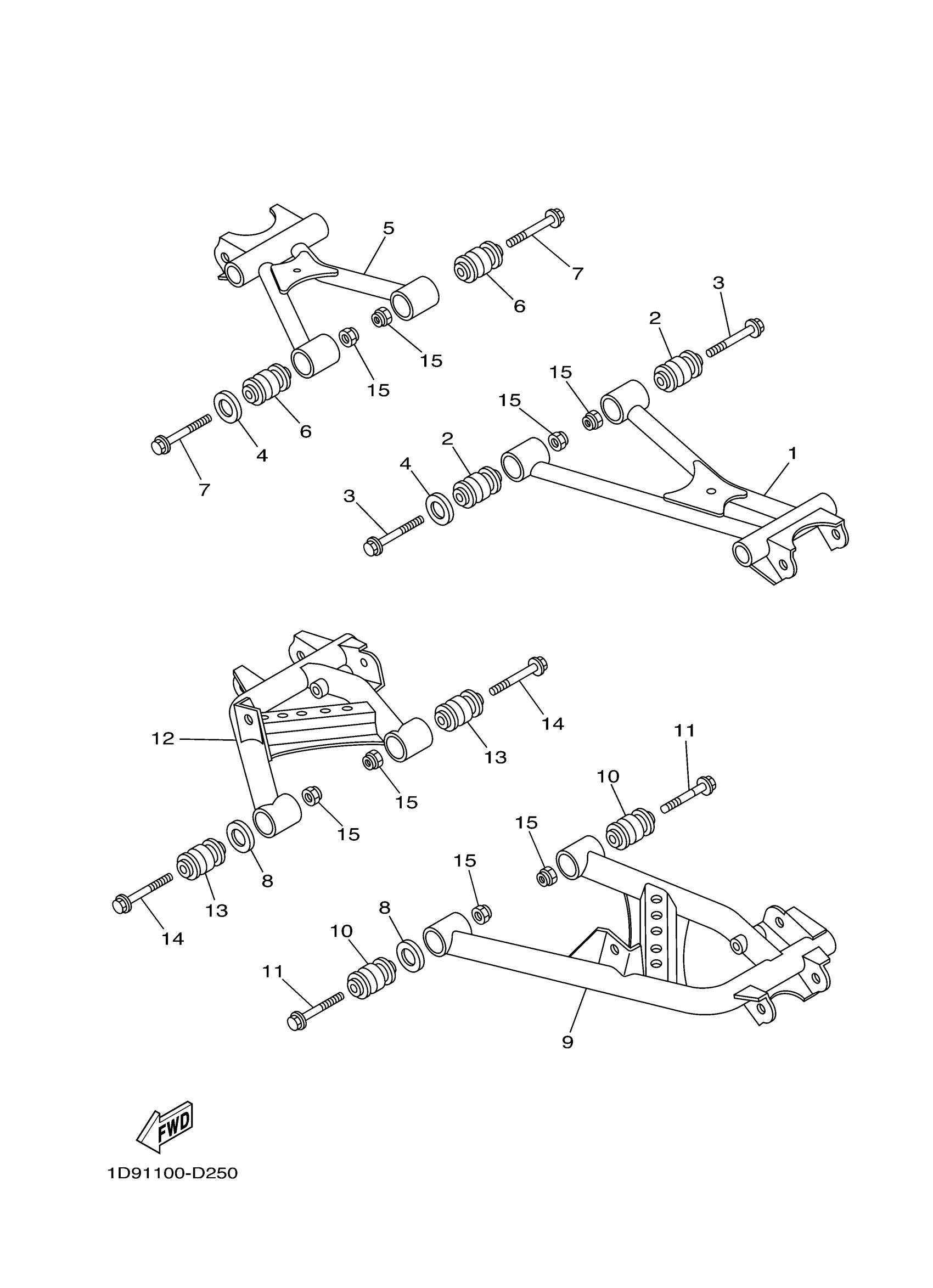

Yamaha YFM4FAV (KODIAK 400 4WD) 1P15 2006 REAR ARM Diagram

#

Description

Price

1

ARM, REAR 1

1D9-F2171-00-00

Unavailable

2

BUSH

5KM-23526-00-00

$15.91

3

B0LT,FLANGE (1KT)

90105-10323-00

$3.88

4

WASHER

5KM-22149-00-00

$6.15

5

ARM, REAR 2

1D9-F2172-00-00

Unavailable

6

BUSH

5KM-23526-00-00

$15.91

7

B0LT,FLANGE (1KT)

90105-10323-00

$3.88

8

WASHER

5KM-22149-00-00

$6.15

9

ARM 1

1D9-F217M-00-00

Unavailable

10

BUSH

5KM-23526-00-00

$15.91

11

B0LT,FLANGE (1KT)

90105-10323-00

$3.88

12

ARM 2

1D9-F217N-00-00

Unavailable

13

BUSH

5KM-23526-00-00

$15.91

14

B0LT,FLANGE (1KT)

90105-10323-00

$3.88

15

NUT, SELF-LOCKING

90185-10012-00

$2.78
