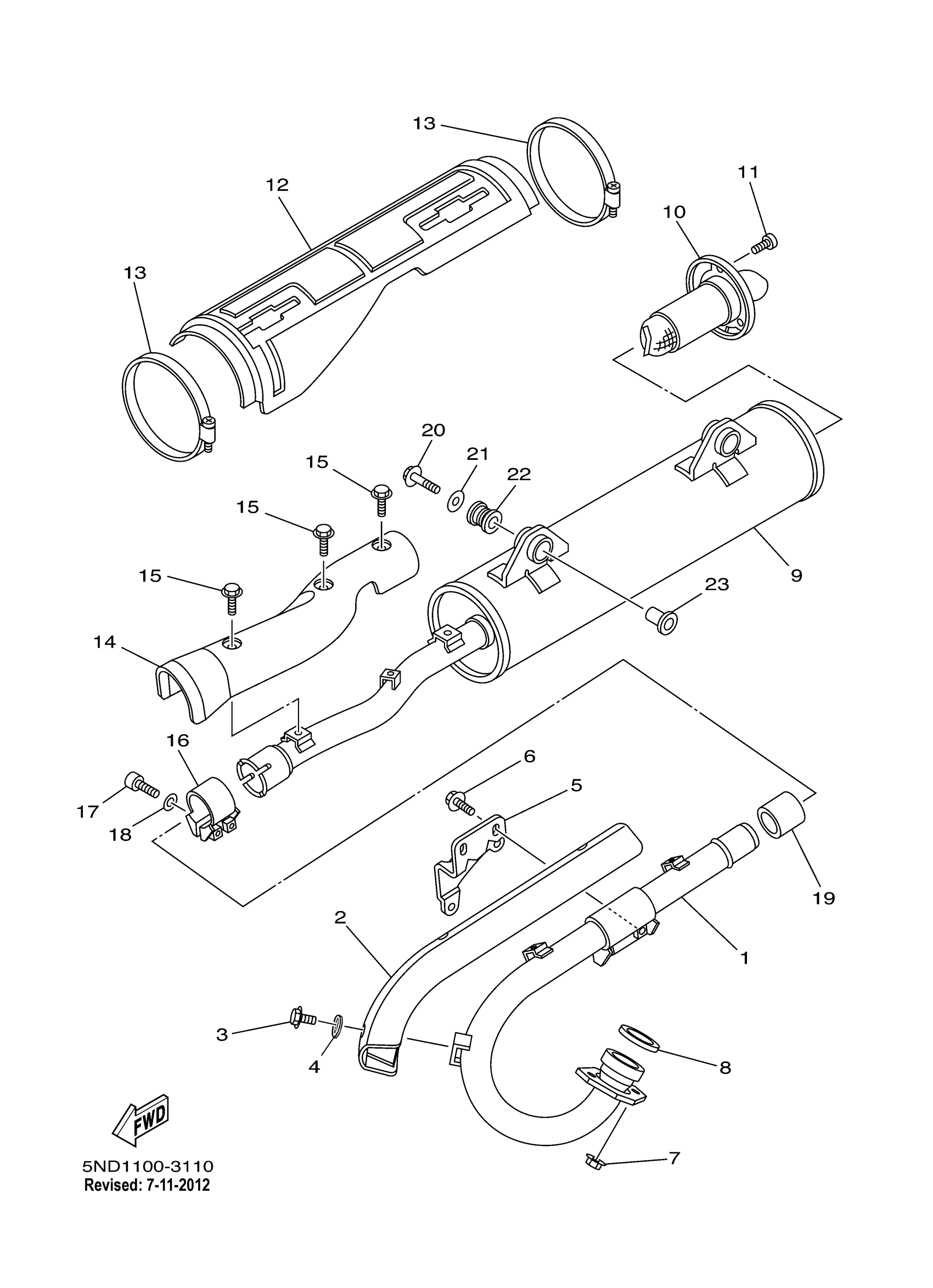

Yamaha YFM4FAV (KODIAK 400 4WD) 1P15 2006 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5ND-E4611-00-00

Unavailable

2

PROTECTOR, EXHAUST

5ND-E4628-00-00

Unavailable

3

BOLT, FLANGE

95817-06010-00

$3.65

4

WASHER, PLATE

90201-06M02-00

$2.20

5

PLATE 1

5ND-E477K-02-00

$13.48

6

BOLT, FLANGE

95817-06016-00

$1.40

7

NUT (22U)

90179-08410-00

$4.79

8

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

9

MUFFLER 1

5ND-E4711-00-00

Unavailable

10

PIPE, OUTLET

5ND-E4752-00-00

$88.91

11

BOLT,SOCKET

91380-06010-00

$6.21

12

PROTECTOR, MUFFLER 1

5ND-E4718-00-00

Unavailable

13

BAND, SILENCER

5ND-E4788-00-00

Unavailable

14

PROTECTOR, MUFFLER

5ND-E4728-00-00

Unavailable

15

BOLT, FLANGE

95817-06008-00

$5.76

16

BAND, MUFFLER

5ND-E4715-00-00

Unavailable

17

BOLT

5ND-E4777-00-00

Unavailable

18

WASHER

5ND-E4759-00-00

Unavailable

19

GASKET, MUFFLER

3YF-14714-00-00

Unavailable

20

BOLT, FLANGE

95817-10040-00

Unavailable

21

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

22

DAMPER, MUFFLER

5ND-E4737-00-00

Unavailable

23

COLLAR (2H7)

90387-10636-00

Unavailable
