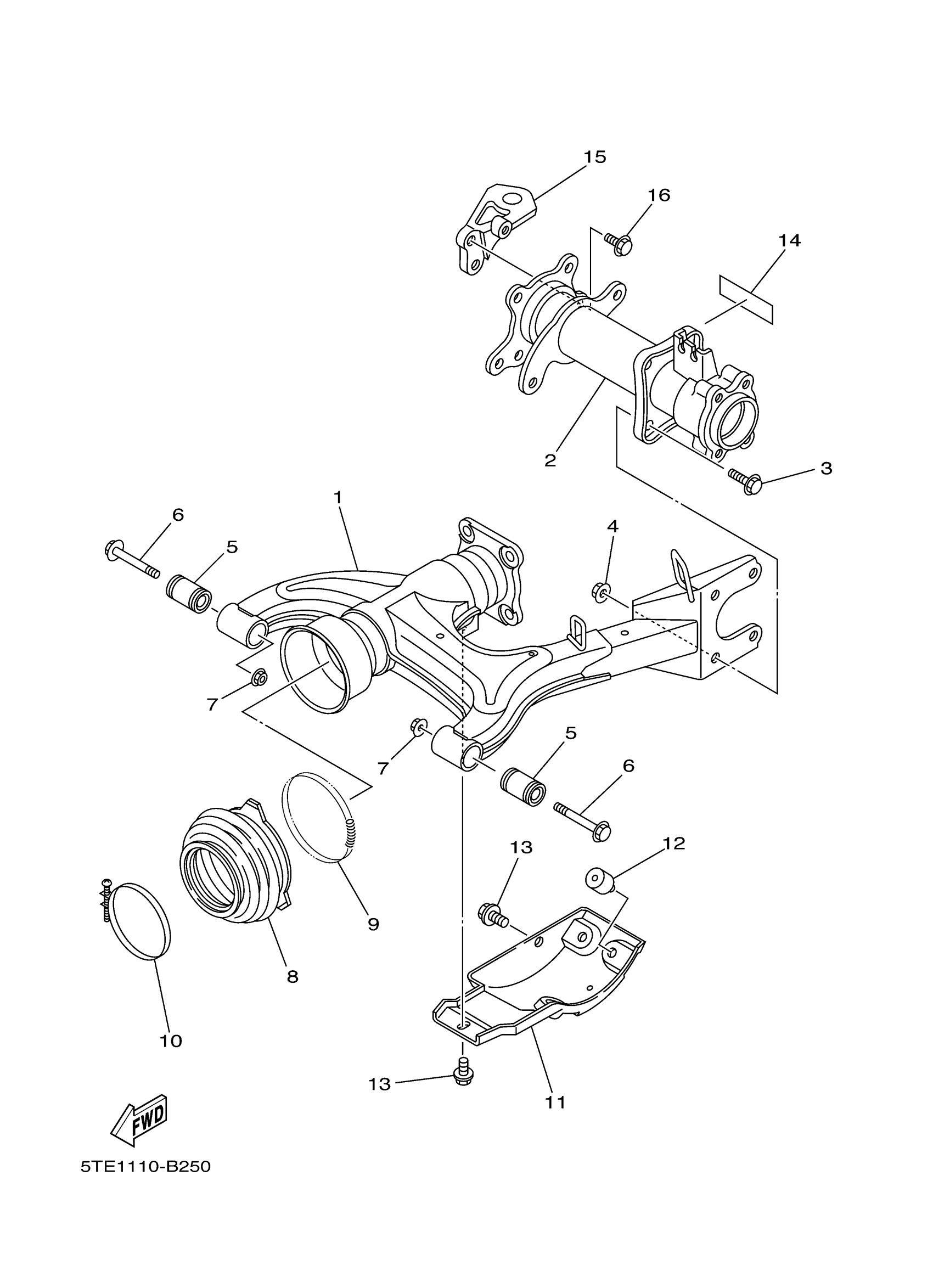

Yamaha YFM4FAS (KODIAK 400 4X4) 5TE6 2004 REAR ARM Diagram

#

Description
Price

1

REAR ARM

3C2-F2110-00-00

Unavailable

2

REAR AXLE HOUSING COMP

5TE-G6540-12-00

$236.99

3

BOLT, FLANGE

95817-10020-00

$8.49

4

NUT, FLANGE(8AB)

95707-10500-00

$3.18

5

BUSH 1

5ND-F2123-00-00

Unavailable

6

BOLT, WASHER BASED(3XV)

90105-12660-00

$16.99

7

NUT, U FLANGE

95607-12200-00

$5.60

8

BOOT, RUBBER

5ND-F2189-00-00

$15.49

9

SPRING, TENSION (1J7)

90506-07135-00

$15.99

10

CLAMP, HOSE(59V)

90460-85277-00

$16.99

11

COVER

4XE-F219X-01-00

Unavailable

12

STOPPER, MAIN STAND

109-27114-00-00

$6.99

13

BOLT, FLANGE

95817-08012-00

$5.49

14

LABEL 7

5ND-F151K-00-00

Unavailable

15

HOOK (BALL HITCH PLATE)

5ND-F8488-20-00

Unavailable

16

BOLT, FLANGE

95817-10020-00

$8.49
