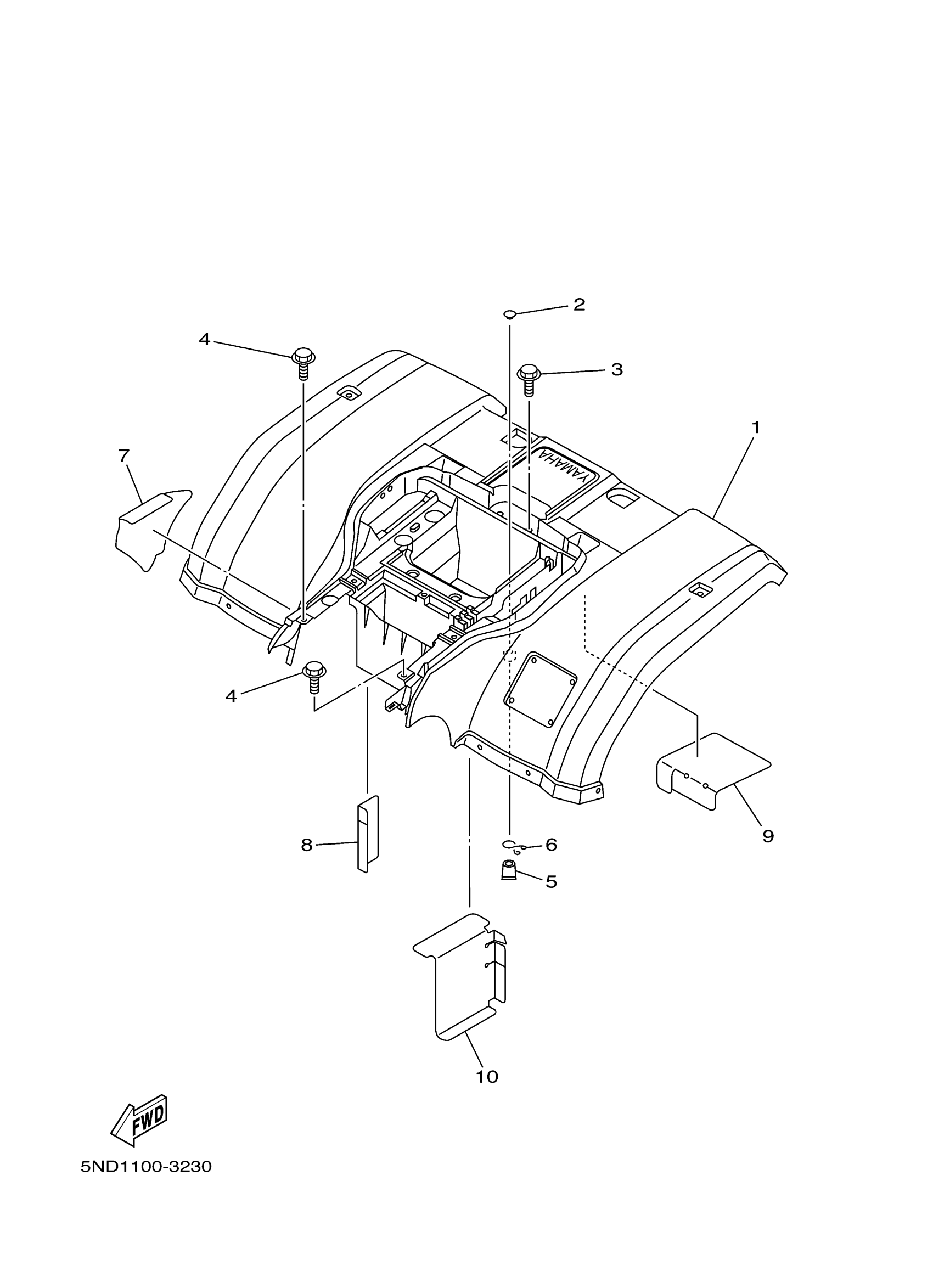

Yamaha YFM4FAHV (KODIAK 400 4WD HUNTER) 1P18 2006 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY (HD-CAMO)

5ND-F1600-E1-00

Unavailable

2

PLUG

90338-09801-00

$1.26

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

5

PIPE, DRAIN

5BF-1443E-00-00

$3.26

6

CLIP(62Y)

90467-15M14-00

$3.21

7

COVER, REAR FENDER

5ND-F163A-02-00

Unavailable

8

COVER, REAR FENDER

5ND-F163E-00-00

Unavailable

9

PROTECTOR

5ND-F1652-00-00

$3.68

10

COVER, REAR FENDER 3

5ND-F163F-00-00

Unavailable
