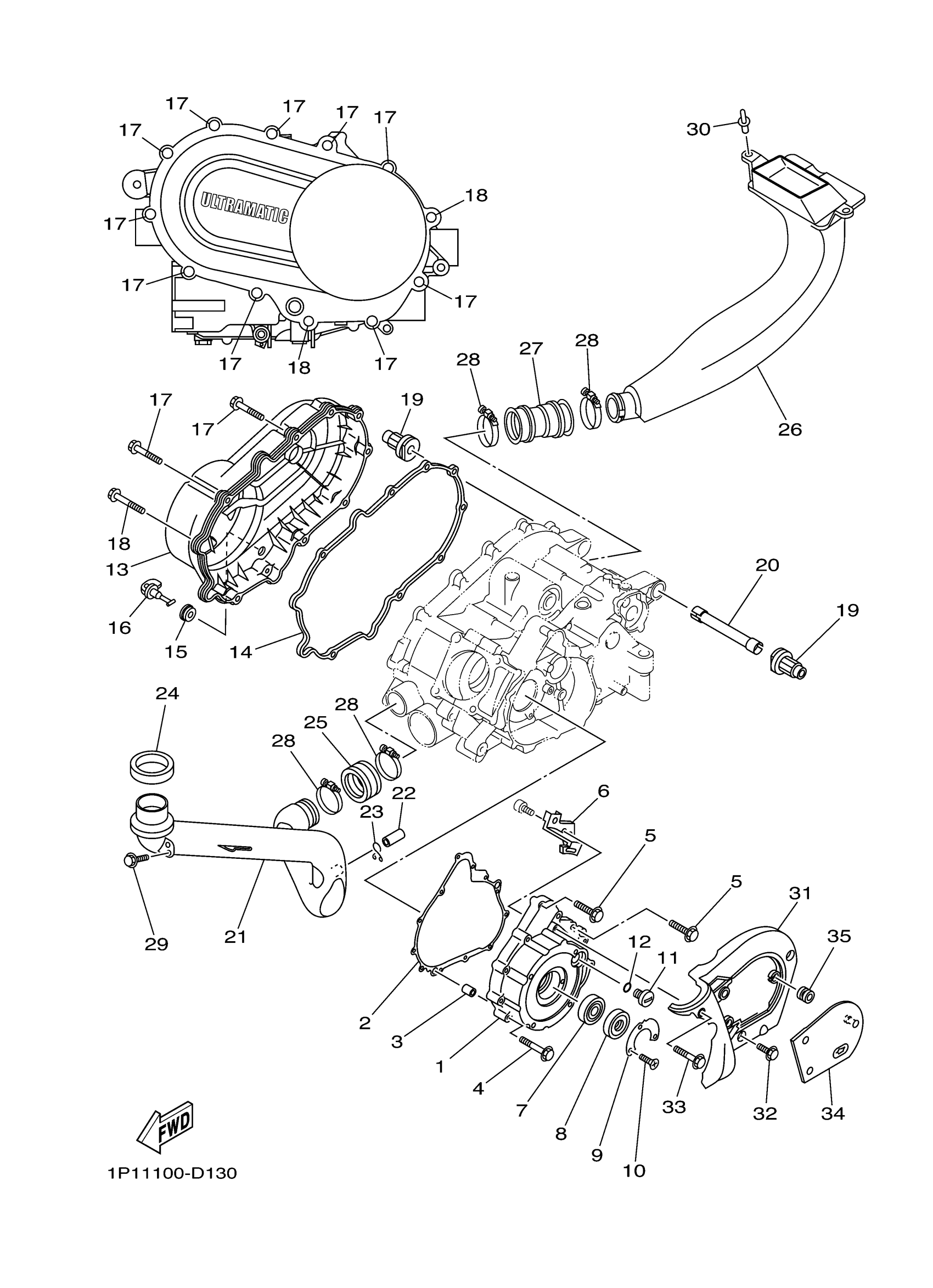

Yamaha YFM4FAHV (KODIAK 400 4WD HUNTER) 1P18 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5GH-15411-01-00

$267.35

2

GASKET, CRANKCASE COVER 1

5GH-15451-00-00

$19.26

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SMALL FLANGE

95027-06040-00

$2.31

5

BOLT, SMALL FLANGE

95027-06030-00

$3.40

6

PLATE

5GH-15113-00-00

Unavailable

7

BEARING(55X)

93306-07801-00

$46.93

8

OIL SEAL

93102-28476-00

$18.82

9

WASHER, THRUST

21V-15719-00-00

Unavailable

10

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.33

11

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

12

O-RING (2H9)

93210-14369-00

$5.42

13

COVER, CRANKCASE 3

5ND-15431-00-00

Unavailable

14

SEAL, CRANKCASE

5GH-15379-00-00

$34.08

15

GROMMET (462)

90480-13018-00

$5.81

16

PLUG, DRAIN

5KM-15351-00-00

Unavailable

17

BOLT, FLANGE

95817-06035-00

Unavailable

18

BOLT, FLANGE

95817-06045-00

Unavailable

19

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

Unavailable

20

SPACER, ENGINE MOUNT

5GH-15317-00-00

Unavailable

21

DUCT,AIR

5ND-E5471-01-00

$166.98

22

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

23

CLIP(62Y)

90467-15M14-00

$3.21

24

SEAL, CLEANER COVER

5ND-E5434-00-00

Unavailable

25

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

26

DUCT, AIR

1D9-E5473-00-00

Unavailable

27

SEAL, AIR DUCT

1D9-E5474-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-64004-00

Unavailable

29

BOLT, FLANGE

95817-06014-00

Unavailable

30

RIVET

90269-08813-00

$0.50

31

COVER 2

5ND-E5423-01-00

Unavailable

32

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

34

COVER

5ND-E5413-00-00

Unavailable

35

GROMMET

90480-13014-00

Unavailable
