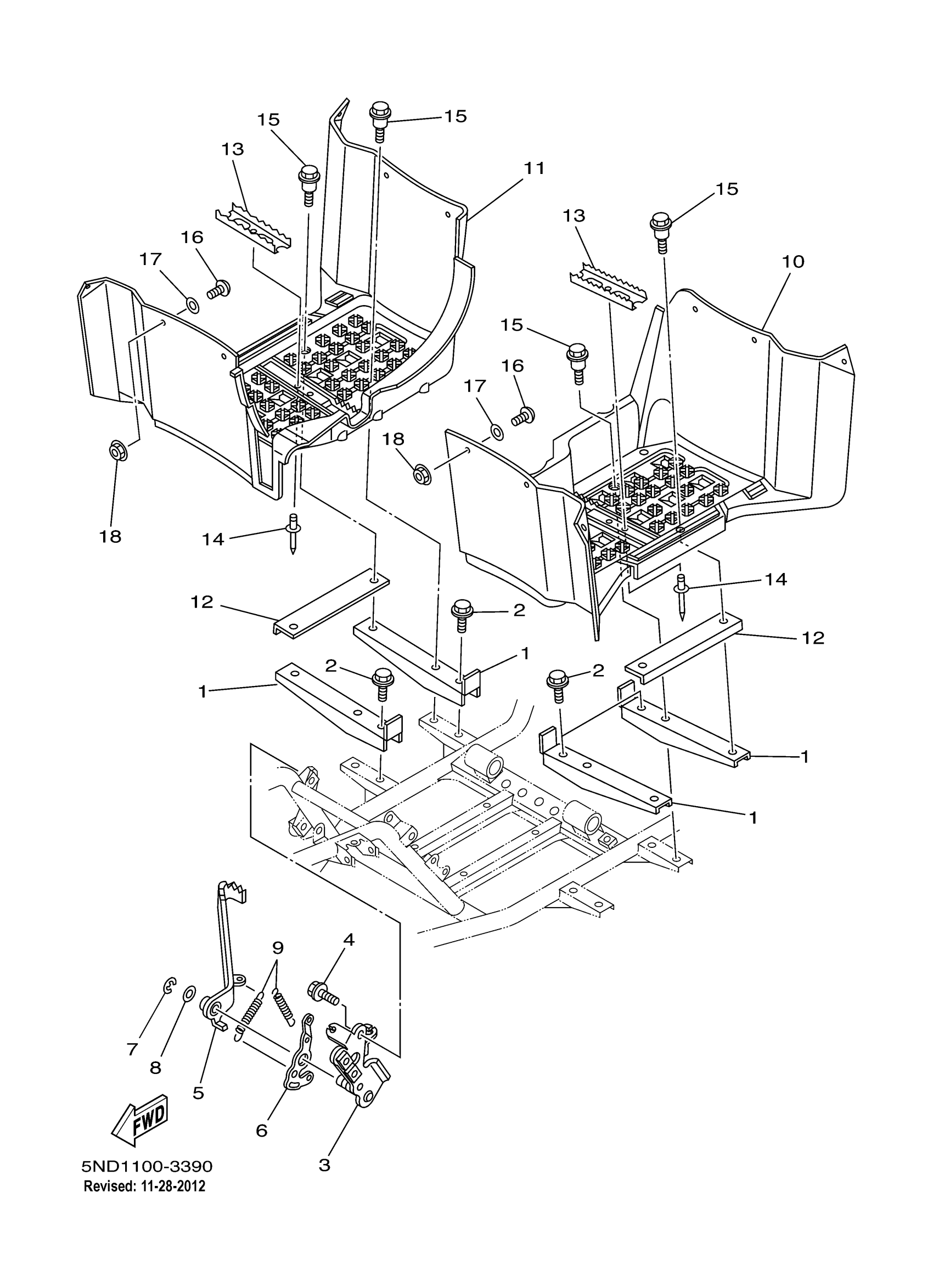

Yamaha YFM4FAHT (KODIAK 400 4WD HUNTER) 1P14 2005 STAND FOOTREST Diagram

BAR, FOOTREST 1

5ND-F7471-01-00

$14.49

BOLT, FLANGE

95817-08012-00

$5.49

BRACKET, FOOTREST

5ND-F7412-11-00

Unavailable

BOLT, FLANGE

95817-08012-00

$5.49

PEDAL, BRAKE

5ND-F7211-10-00

Unavailable

LEVER, BRAKE PEDAL

5ND-F7252-11-00

Unavailable

CIRCLIP (137)

93430-10015-00

$9.49

WASHER, PLATE(52G)

90201-144J2-00

$8.49

SPRING, TENSION(3JN)

90506-12441-00

$8.49

COVER 1 (FOOTREST CVR LH SIDE)

5ND-F7453-01-00

$66.99

COVER 2 (FOOTREST CVR RH SIDE)

5ND-F7463-01-00

Unavailable

PLATE 1

5ND-F7445-00-00

$10.99

ARM 1

5UH-F741A-10-00

$5.49

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

BOLT

90109-06072-00

$5.60

SCREW(3YF)

90149-05299-00

Unavailable

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

NUT, NYLON

95707-05300-00

Unavailable
