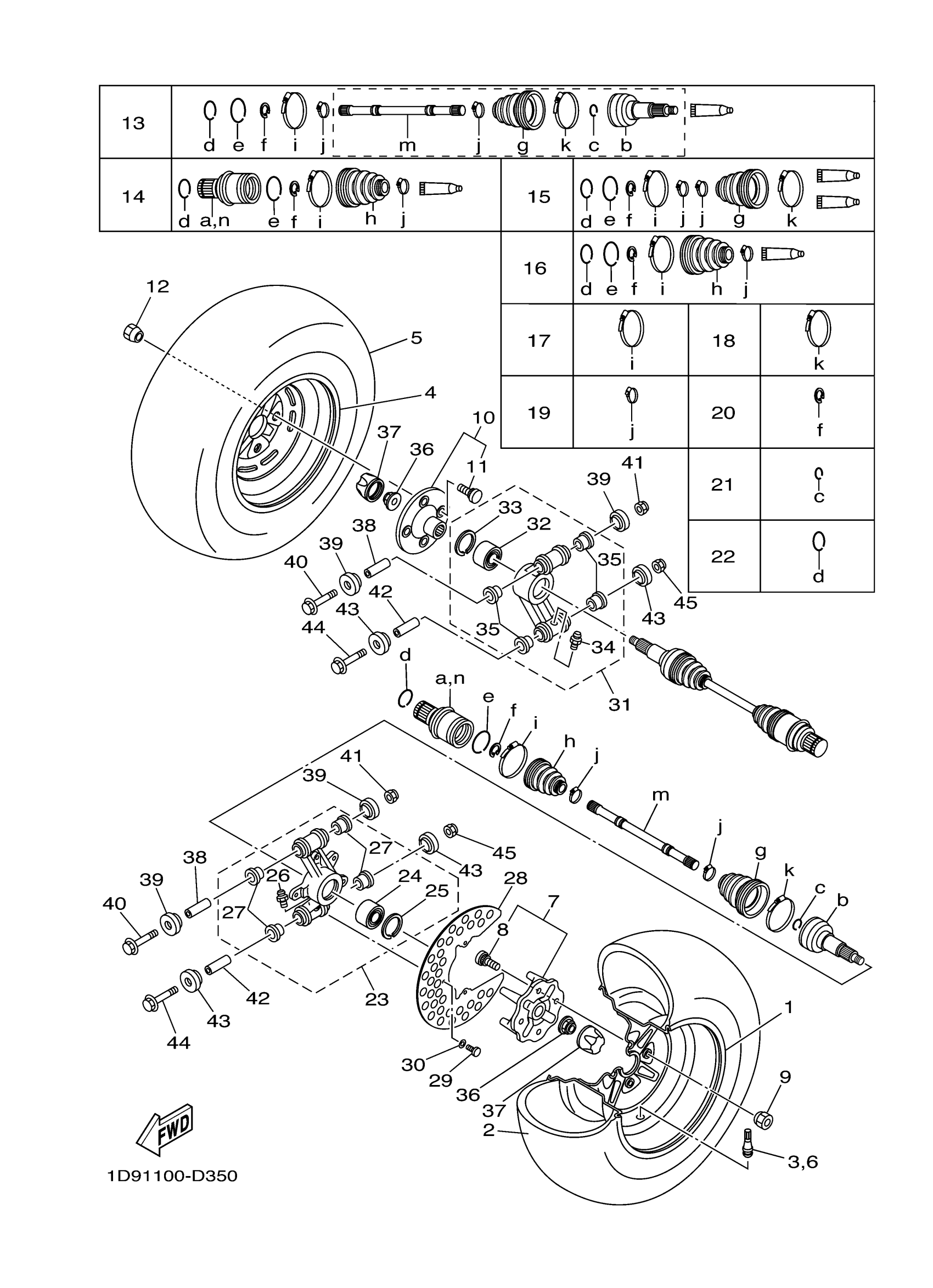

Yamaha YFM4FAHT (KODIAK 400 4WD HUNTER) 1P14 2005 REAR WHEEL Diagram
#
2
AT25X10-12 M912Y
94110-12810-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
5
AT25X10-12 M912Y
94110-12810-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
7
HUB, REAR
1D9-F5311-01-00
Unavailable
10
HUB SUB-ASSY
1D9-F532E-01-00
Unavailable
13
BALL JOINT SET
1D9-F510F-00-00
Unavailable
14
DOUBLE OFF SET JOINT
1D9-F510J-01-00
Unavailable
16
BOOT SET (DOUBLE OFFSET JOINT)
5KM-2530Y-11-00
Unavailable
17
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
18
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
19
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
20
SNAP RING
2HR-2512J-00-00
Unavailable
21
CIRCLIP
4KB-2512H-00-00
Unavailable
22
CLIP, SPRING
5KM-2536E-10-00
Unavailable
23
REAR KNUCKLE ASSY
1D9-F530F-01-00
Unavailable
24
BEARING
93305-00602-00
Unavailable
25
CIRCLIP
99009-55500-00
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
28
PROTECTOR, DISC BRAKE
1D9-F5718-00-00
Unavailable
29
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
30
WASHER, PLATE
90201-06020-00
Unavailable
31
REAR KNUCKLE ASSY.
1D9-F532F-01-00
Unavailable
32
BEARING
93305-00602-00
Unavailable
33
CIRCLIP
99009-55500-00
Unavailable
34
NIPPLE, GREASE
93700-06M03-00
Unavailable
35
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
36
NUT
90179-20016-00
Unavailable
37
CAP, WHEEL
5GT-2512A-00-00
Unavailable
38
SPACER
5KM-23448-00-00
Unavailable
39
COVER, THRUST 1
3JN-23517-00-00
Unavailable
40
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
41
NUT, SELF-LOCKING
90185-10012-00
Unavailable
42
SPACER
5KM-23448-00-00
Unavailable
43
COVER, THRUST 1
3JN-23517-00-00
Unavailable
44
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
45
NUT, SELF-LOCKING
90185-10012-00
Unavailable
