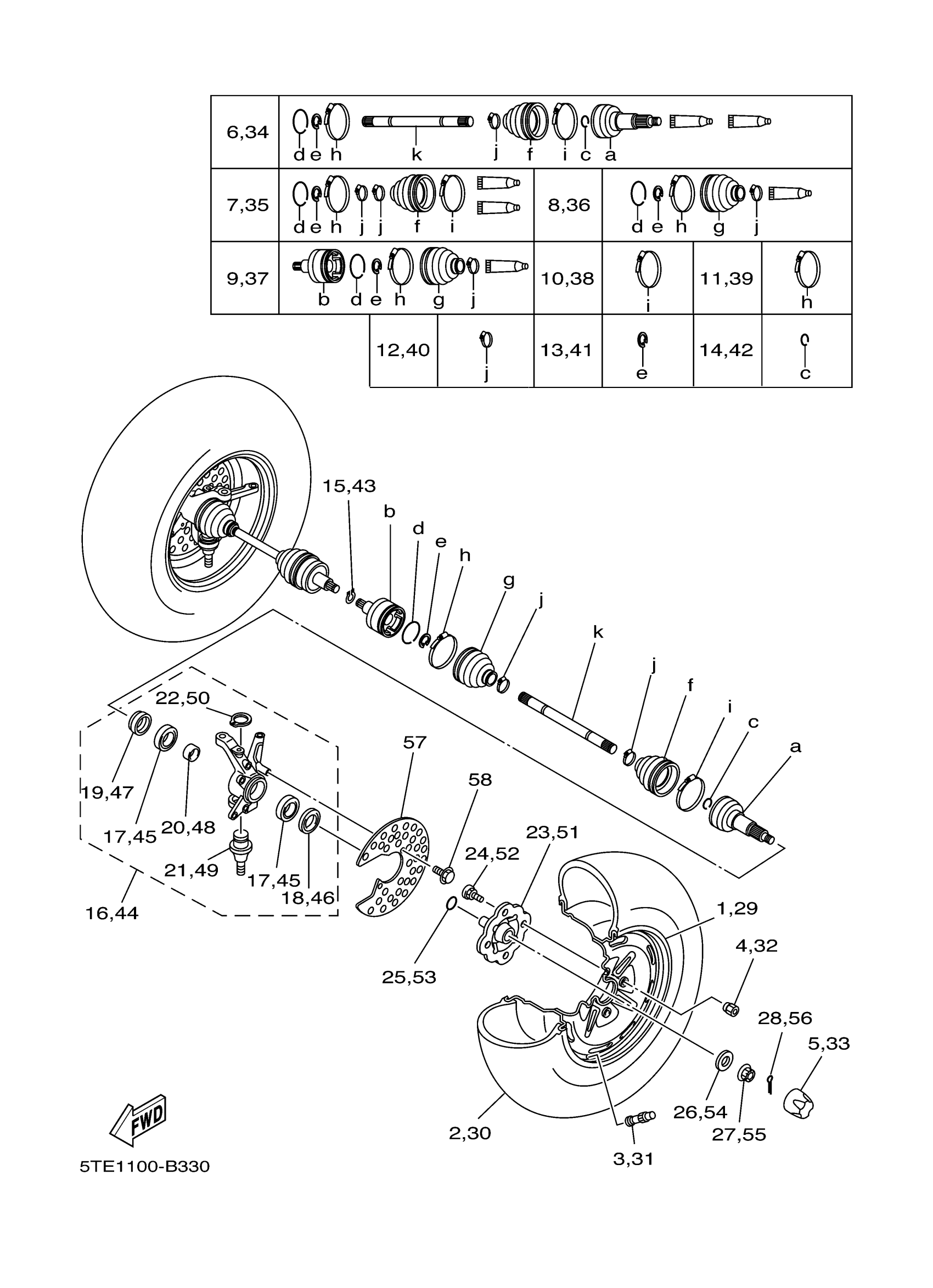

Yamaha YFM4FAHS (KODIAK 400 HUNTER EDITION) 5TEA 2004 FRONT WHEEL Diagram

#

Description
Price

1

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

2

AT25X8-12 M911Y

94108-12813-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

5GT-2512A-00-00

$9.99

6

. BALL JOINT SET

5TE-F510F-00-00

Unavailable

7

BOOT SET (BALL JOINT)

5GH-2510G-00-00

Unavailable

8

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

9

DOUBLE OFF SET JOINT

5GH-2510J-00-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

12

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

CIRCLIP

4KB-2512H-00-00

$6.99

15

CIRCLIP(2HR)

93450-22119-00

$8.49

16

STEERING KNUCKLE A

5ND-F3501-11-00

Unavailable

17

BEARING

93306-006Y2-00

Unavailable

18

OIL SEAL

93106-38046-00

Unavailable

19

OIL SEAL

93106-38047-00

Unavailable

20

SPACER(2HR)

90560-30325-00

Unavailable

21

BALL JOINT 1

37S-23549-01-00

Unavailable

22

CIRCLIP

93410-32075-00

Unavailable

23

HUB,FRONT

5ND-F5111-30-00

Unavailable

23

HUB,FRONT

5ND-F5111-30-00

Unavailable

24

BOLT

1P0-F5411-00-00

Unavailable

25

O-RING(47X)

93210-27666-00

Unavailable

26

WASHER, PLATE

90201-16804-00

Unavailable

27

NUT, CASTLE

90171-16001-00

Unavailable

28

PIN, COTTER

91490-30030-00

Unavailable

29

RIM FRONT (BLACK 12 X 6.0)

5ND-F5180-11-00

Unavailable

30

AT25X8-12 M911Y

94108-12813-00

Unavailable

31

VALVE, RIM

93900-00812-00

Unavailable

32

NUT(2HR)

90179-10540-00

$5.60

33

CAP, WHEEL

5GT-2512A-00-00

$9.99

34

. BALL JOINT SET

5TE-F510F-00-00

Unavailable

35

BOOT SET (BALL JOINT)

5GH-2510G-00-00

Unavailable

36

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

37

DOUBLE OFF SET JOINT

5GH-2510J-00-00

Unavailable

38

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

39

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

40

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

41

SNAP RING

2HR-2512J-00-00

$6.99

42

CIRCLIP

4KB-2512H-00-00

$6.99

43

CIRCLIP(2HR)

93450-22119-00

$8.49

44

STEERING KNUCKLE A

5ND-F3502-11-00

Unavailable

45

BEARING

93306-006Y2-00

Unavailable

46

OIL SEAL

93106-38046-00

Unavailable

47

OIL SEAL

93106-38047-00

Unavailable

48

SPACER(2HR)

90560-30325-00

Unavailable

49

BALL JOINT 1

37S-23549-01-00

Unavailable

50

CIRCLIP

93410-32075-00

Unavailable

51

HUB,FRONT

5ND-F5111-30-00

Unavailable

51

HUB,FRONT

5ND-F5111-30-00

Unavailable

52

BOLT

1P0-F5411-00-00

Unavailable

53

O-RING(47X)

93210-27666-00

Unavailable

54

WASHER, PLATE

90201-16804-00

Unavailable

55

NUT, CASTLE

90171-16001-00

Unavailable

56

PIN, COTTER

91490-30030-00

Unavailable

57

RING, WHEEL 1 (LEF

5ND-F514A-00-00

Unavailable

58

BOLT, FLANGE

95817-06012-00

Unavailable
