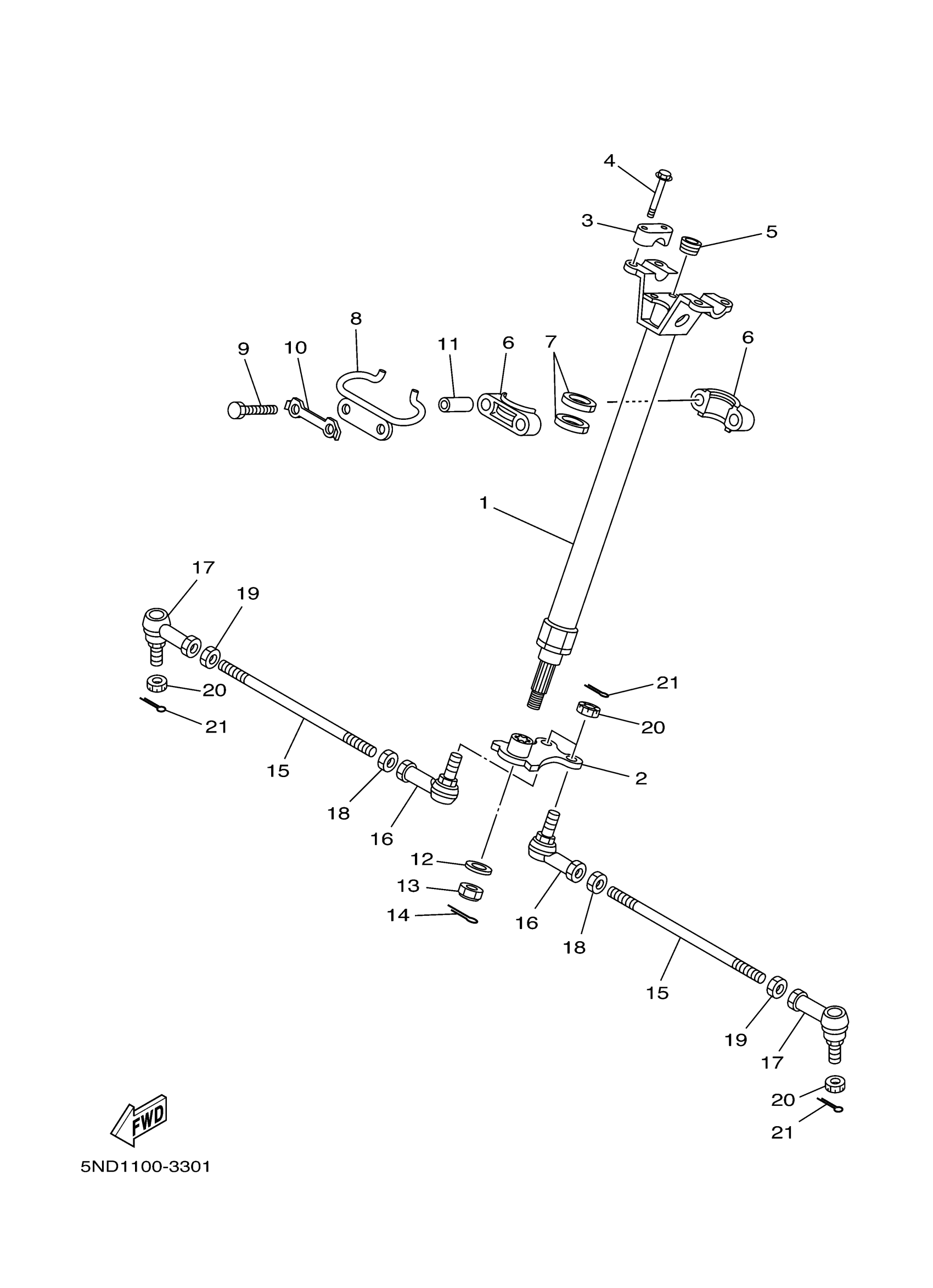

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5ND-F3813-11-00

Unavailable

2

ARM,PITMAN

5ND-F3816-12-00

$26.99

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

BOLT, FLANGE

95812-08030-00

$3.25

5

PLUG, TAPER(2HR)

90336-28053-00

$8.74

6

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

7

OIL SEAL(1UY)

93112-31011-00

$7.52

8

BRACKET, STEERING LOWER

5ND-F3868-00-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

$7.72

10

WASHER, LOCK 1

1UY-23894-01-00

$6.86

11

COLLAR(85G)

90387-106T4-00

$11.29

12

WASHER, PLATE

90201-14226-00

Unavailable

13

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

14

PIN, COTTER(6L5)

91490-25030-00

$2.85

15

ROD, TIE

37S-23831-00-00

$51.60

16

JOINT, UNIVERSAL 1

37S-23841-00-00

$78.58

17

JOINT, UNIVERSAL 2

4S2-23845-00-00

$76.97

18

NUT 1

1P0-F3833-00-00

$0.92

19

NUT 2

37S-23834-00-00

$5.31

20

NUT, CASTLE

90171-12001-00

$2.85

21

PIN, COTTER

91490-25020-00

$2.94
