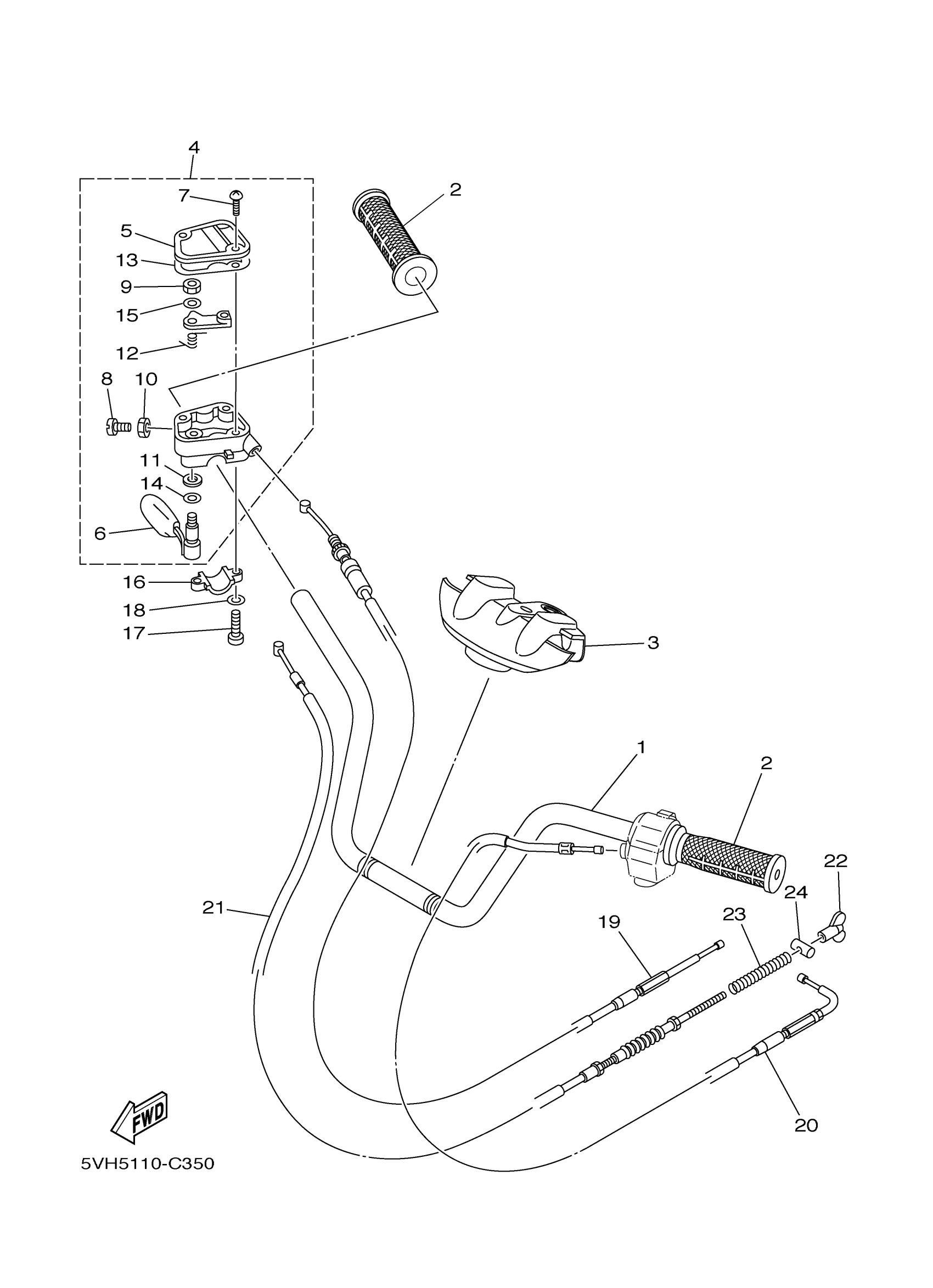

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$37.25

4

THROTTLE LEVER ASSY

4KB-26250-12-00

Unavailable

5

CAP, GEAR

4KB-2628F-10-00

$24.74

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$0.74

8

SCREW, PAN HEAD

98517-05020-00

$1.35

9

NUT, U

95617-05100-00

$6.68

10

NUT, HEXAGON SMALL

95317-05700-00

$6.18

11

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

12

SPRING

1NV-26304-00-00

$11.17

13

GASKET

4KB-2628G-00-00

$10.63

14

WASHER

1NV-26129-00-00

$6.43

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

17

SCREW, PAN HEAD

98517-05020-00

$1.35

18

WASHER(1RW)

92907-05600-00

$0.78

19

CABLE, THROTTLE 1

5GH-26311-11-00

$28.22

20

CABLE,STARTER 1

5VH-F6331-01-00

$10.95

21

CABLE, BRAKE

5TE-26341-00-00

$46.72

22

NUT, AJUSTING

20E-26343-00-00

$22.28

23

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

24

PIN 1562723700

90249-12008-00

$4.70
