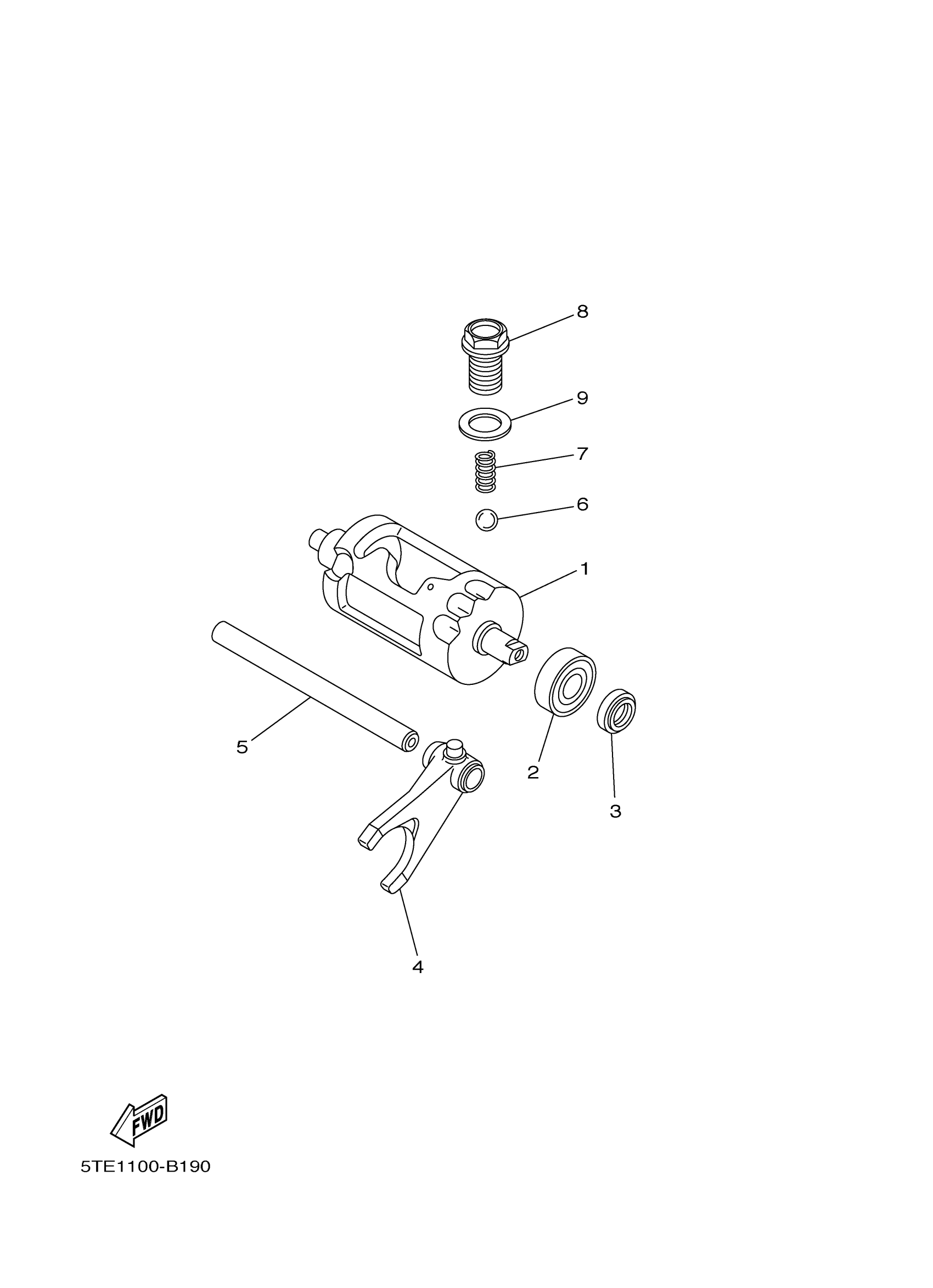

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5TE-18541-00-00

Unavailable

2

BEARING(36F)

93306-00208-00

$36.68

3

OIL SEAL (3X3)

93102-15212-00

$7.34

4

FORK, SHIFT 1

5GH-18511-00-00

Unavailable

5

BAR, SHIFT FORK GUIDE 1

4KB-18531-01-00

$15.72

6

BALL

93503-08007-00

$2.35

7

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

8

BOLT, WASHER BASED(59V)

90105-14367-00

$9.40

9

GASKET 256131670000

90430-14043-00

$6.46
