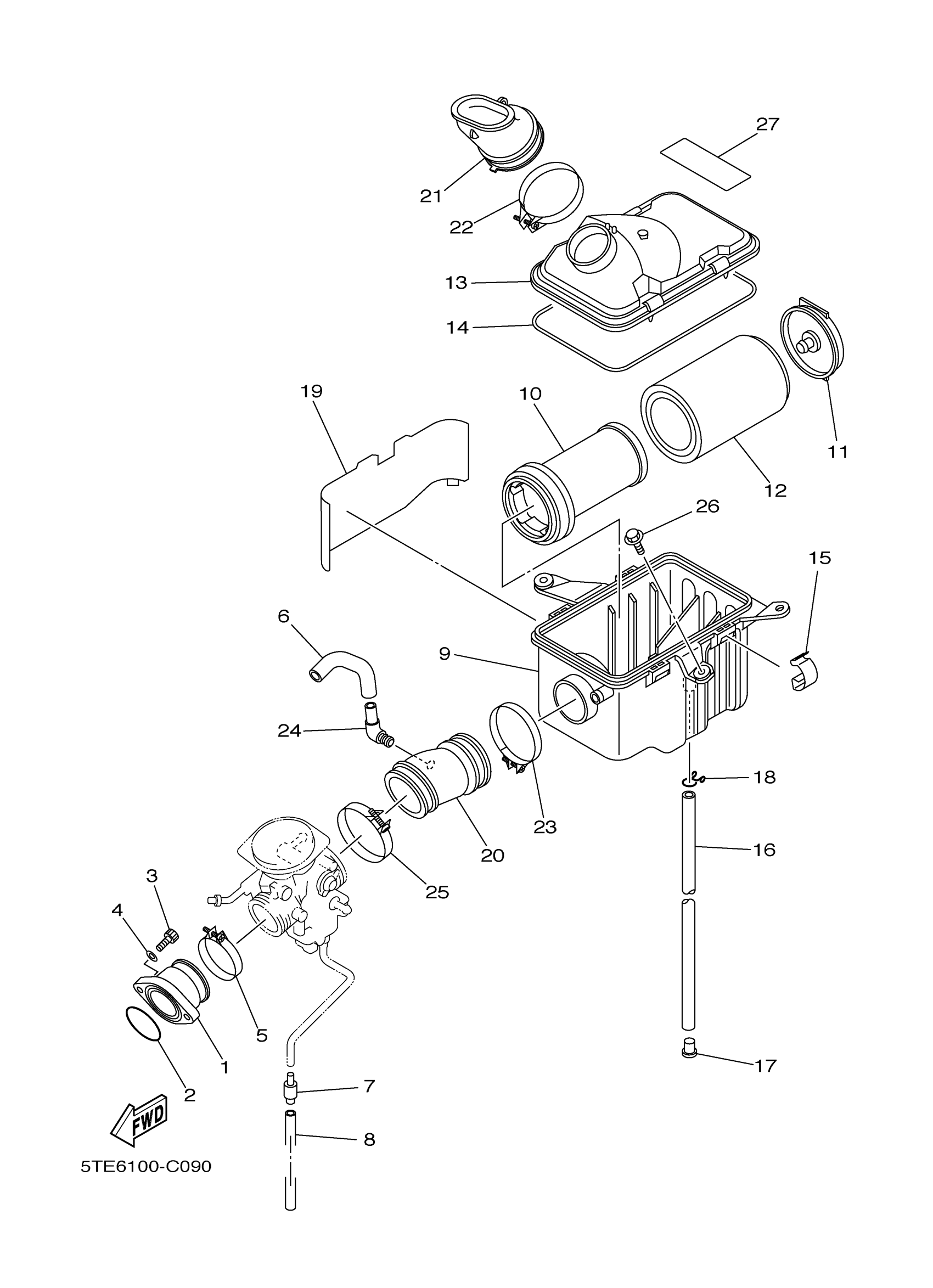

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5GH-13586-00-00

$86.99

2

O-RING (10L)

93210-44545-00

$11.47

3

BOLT, SOCKET

91317-08025-00

$6.25

4

WASHER PLATE 141181390000

90201-08085-00

$6.38

5

HOSE CLAMP ASSY

90450-47002-00

$7.15

6

PIPE

5ND-E4349-00-00

$4.75

7

PIPE 2,OVERFLOW

24W-14193-00-00

$35.28

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$8.95

9

CASE, AIR CLEANER

5UH-E4411-00-00

$38.15

10

GUIDE

5UH-E4458-00-00

$17.41

11

PLATE,ELEMENT FIT (END CAP)

5UH-E4468-00-00

$5.28

12

ELEMENT, AIR FILTER

5UH-E4451-10-00

$18.28

13

CAP, CLEANER CASE

5UH-E4412-00-00

$9.69

14

SEAL

5UH-E4462-00-00

$4.02

15

CLIP, CAP FITTING

5UH-E4424-00-00

Unavailable

16

PIPE, DRAIN

5UH-E4769-10-00

$7.71

17

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

18

CLIP, DRAIN CLEANER

5UH-E4438-01-00

$2.66

19

PROTECTOR

5ND-E442F-01-00

$4.00

20

JOINT, AIR CLEANER

5ND-E4453-00-00

$48.30

21

DUCT

5ND-E4437-02-00

$62.14

22

HOSE CLAMP ASSY

90450-58002-00

$15.11

23

HOSE CLAMP ASSY

90450-58002-00

$15.11

24

PIPE

31A-14419-00-00

$6.62

25

HOSE CLAMP ASSY

90450-56001-00

$14.77

26

BOLT, WITH WASHER(81H)

90119-06118-00

$6.17

27

PLATE, EPA 3 (CALIFORNIA)

5TE-2179T-10-00

Unavailable
