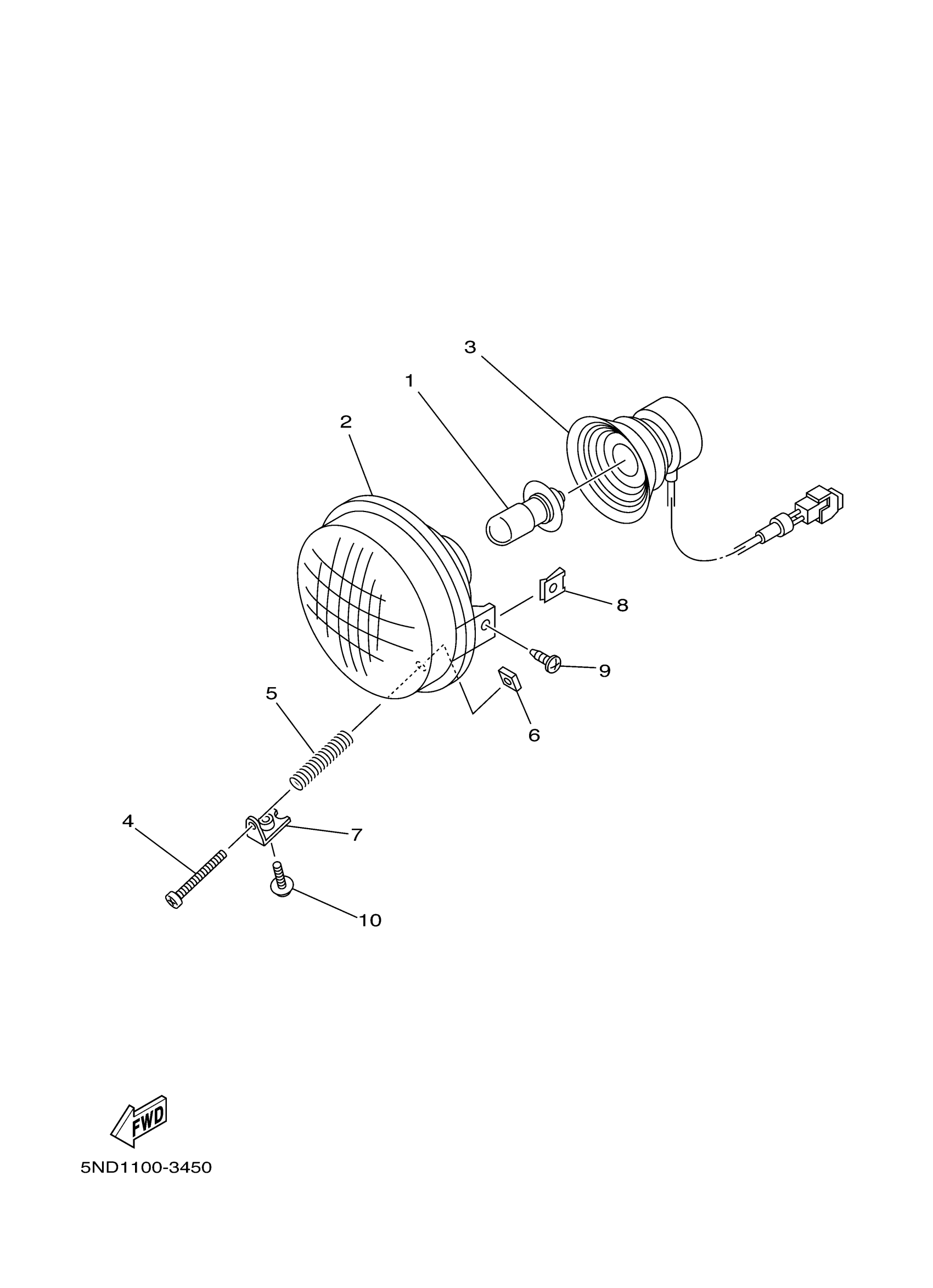

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$36.14

2

HEADLIGHT ASSY

5KM-84300-20-00

$99.99

3

HEADLIGHT ASSY

5KM-84300-20-00

$99.99

4

SCREW, PAN HEAD

98507-03540-00

$1.18

5

SPRING, SCREW

2GU-84332-00-00

$6.72

6

NUT, ADJUSTING

2GU-84334-00-00

$5.27

7

BRACKET

5GH-84703-00-00

$6.58

8

NUT, SPRING

90183-05008-00

$6.68

9

SCREW, BIND (8K2)

98902-05016-00

$1.23

10

SCREW, WITH WASHER

90159-05044-00

$2.48
