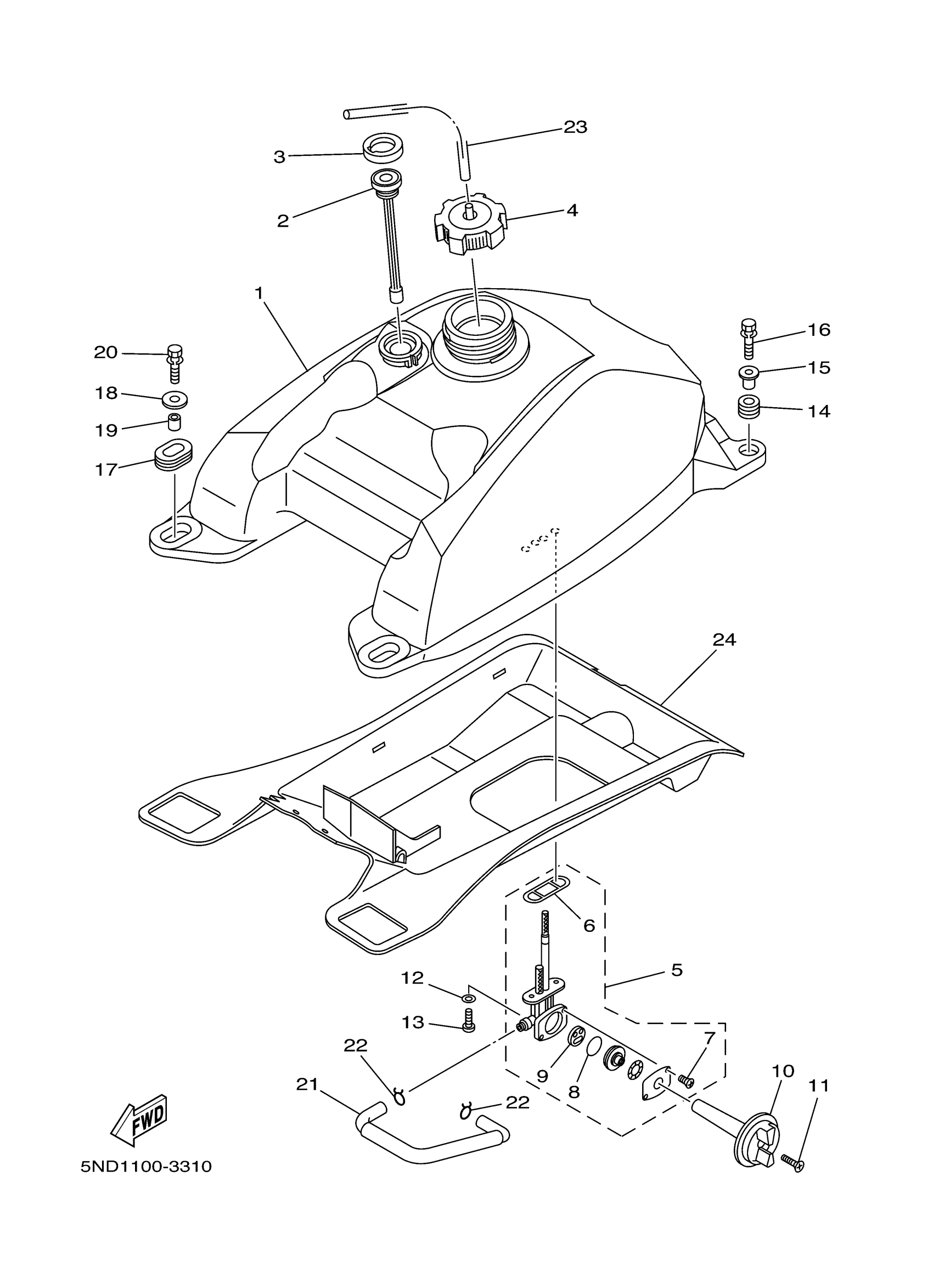

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5ND-F4110-01-00

$286.12

2

FUEL METER ASSY

5GH-24260-11-00

$78.27

3

HOUSING, FUEL METER

4SH-24261-00-00

$15.04

4

CAP ASSY

5KM-24610-00-00

$53.05

5

FUEL COCK ASSY 1

5GH-24500-10-00

$54.02

6

O-RING

4X8-24512-00-00

$7.51

7

SCREW, PAN HEAD

98507-03014-00

$6.68

8

SEAL, COCK

3AJ-24534-01-00

$9.32

9

VALVE PACKING

3AC-24523-00-00

$11.58

10

LEVER,COCK

1NS-F4524-00-00

$7.48

11

SCREW, FLAT HEAD(3HH)

98707-04018-00

$1.95

12

WASHER, PLATE(3MB)

90202-05187-00

$1.01

13

SCREW 256241430000

90149-06011-00

$1.58

14

GROMMET (4V1)

90480-18290-00

$7.02

15

COLLAR (36R)

90387-066J1-00

$6.86

16

BOLT, WITH WASHER

90119-06883-00

$1.20

17

GROMMET(38W)

90480-01400-00

$10.06

18

WASHER, PLATE

90201-06090-00

$5.17

19

COLLAR (1T2)

90387-07598-00

$4.83

20

BOLT, WITH WASHER

90119-06883-00

$1.20

21

PIPE, FUEL 1

3C2-F4311-00-00

$8.03

22

CLIP

90467-100A1-00

$6.38

23

HOSE

90445-088C5-00

$4.06

24

DAMPER, PLATE 1

5ND-F414H-10-00

$60.34
