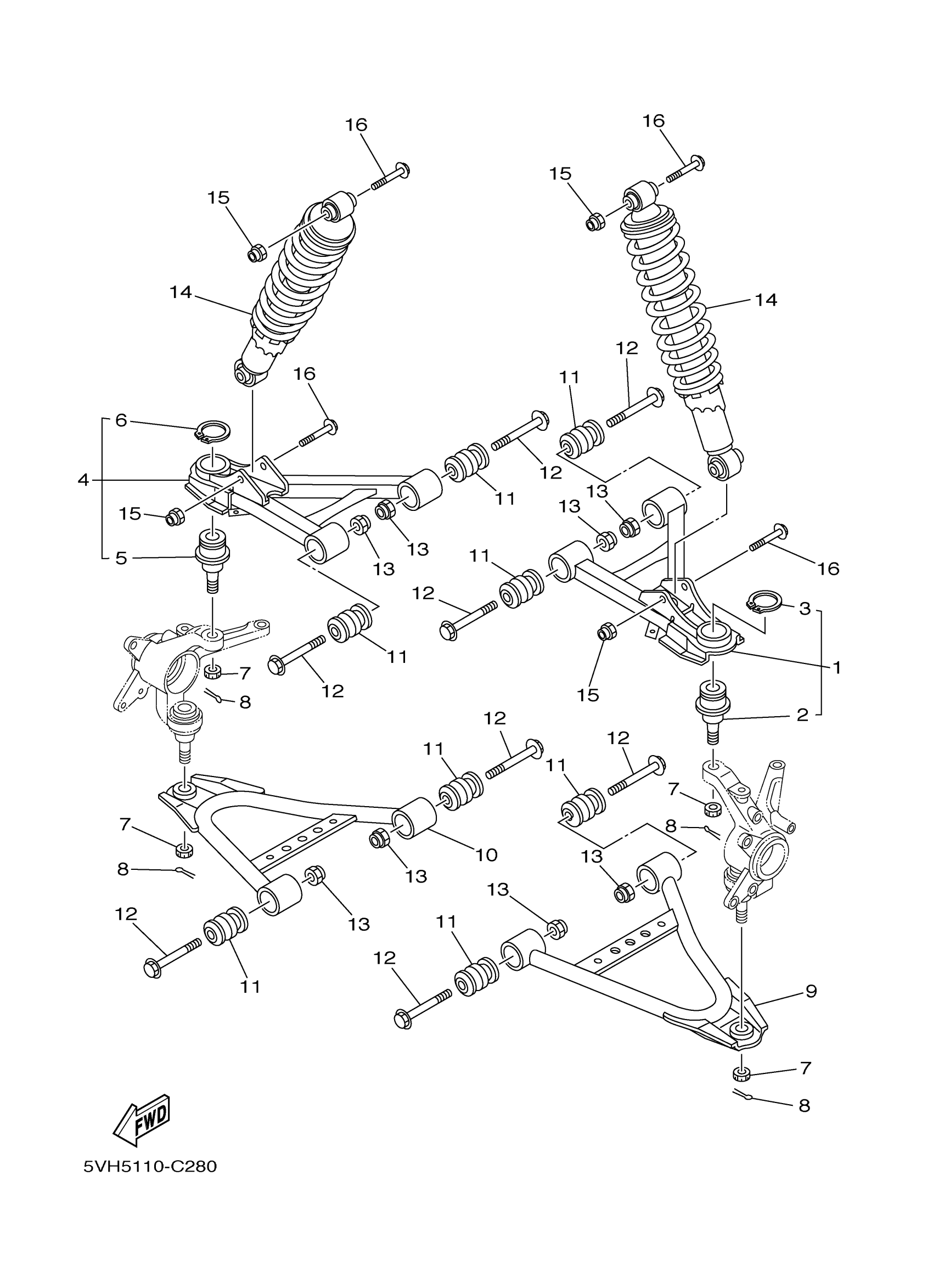

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

5ND-F3540-13-00

$172.26

2

BALL JOINT 1

37S-23549-01-00

$67.35

3

CIRCLIP

93410-32075-00

$6.97

4

FRT. UPPER ARM (R)

5ND-F3550-13-00

$119.58

5

BALL JOINT 1

37S-23549-01-00

$67.35

6

CIRCLIP

93410-32075-00

$6.97

7

NUT, CASTLE

90171-12001-00

$2.85

8

PIN, COTTER

91490-25020-00

$2.94

9

ARM, FR. LWR. LH.

5ND-F357A-01-00

$83.39

10

ARM, FR. LWR. RH.

5ND-F358A-01-00

$82.36

11

BUSH

2HR-23526-00-00

$18.21

12

BOLT, FLANGE

90105-10267-00

$7.74

13

NUT, SELF-LOCKING

90185-10012-00

$2.98

14

SHOCK ABSORBER ASSY

5ND-F3350-01-00

Unavailable

15

NUT, SELF-LOCKING

90185-10012-00

$2.98

16

BOLT, FLANGE

90105-10841-00

$1.88
