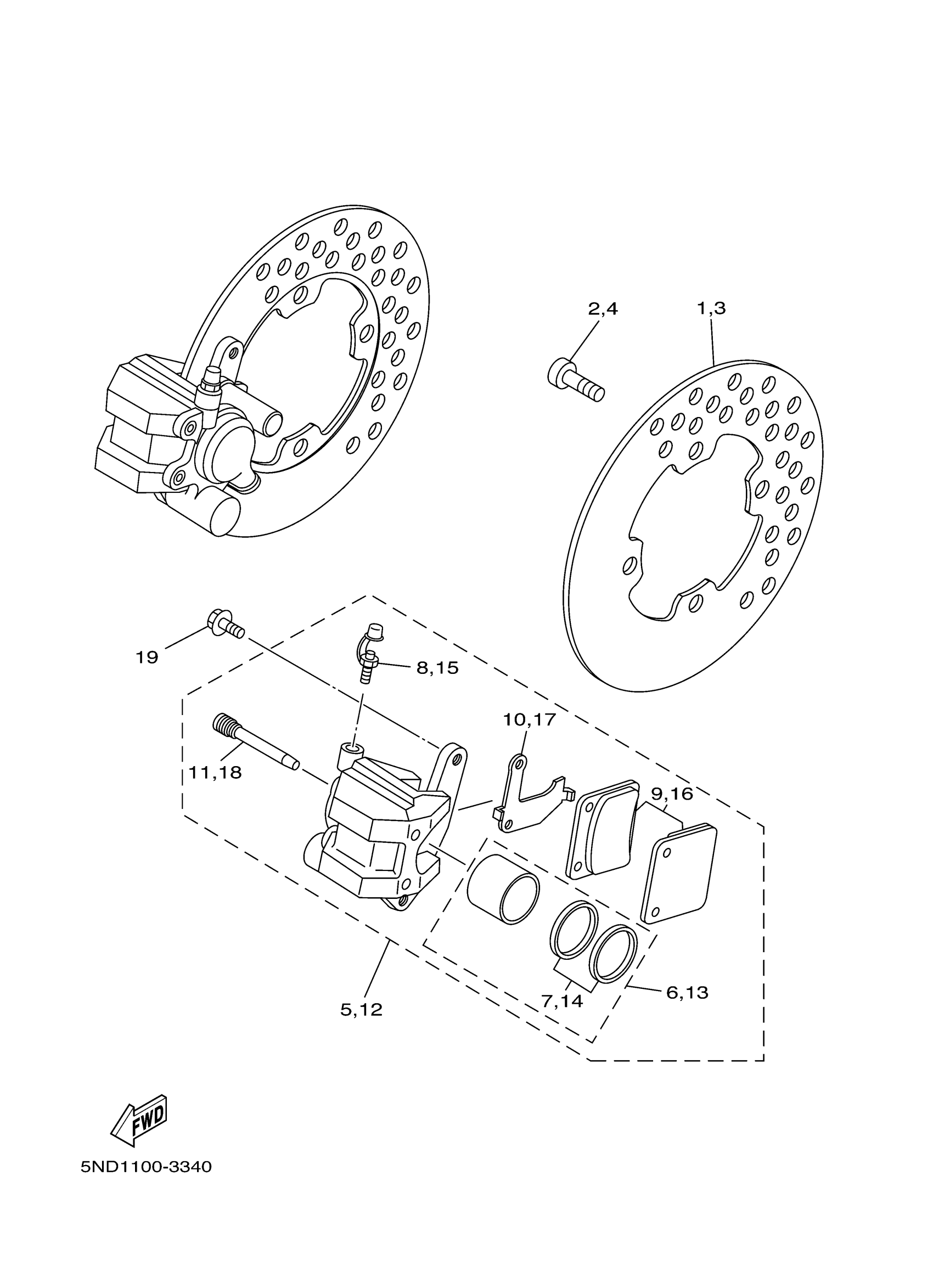

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (FRONT)

5ND-F582T-00-00

$76.28

BOLT

90109-08087-00

$2.65

DISC, BRAKE (FRONT)

5ND-F582T-00-00

$76.28

BOLT

90109-08087-00

$2.65

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$255.81

PISTON ASSY, CALIPER

3GD-W0057-00-00

$42.46

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

BRAKE PAD KIT

3GD-W0045-01-00

$33.19

SHIM, CALIPER

3GD-25827-00-00

$9.49

PIN, PAD

3GD-25933-00-00

$22.89

CALIPER ASSY (RIGHT)

3GD-2580U-01-00
