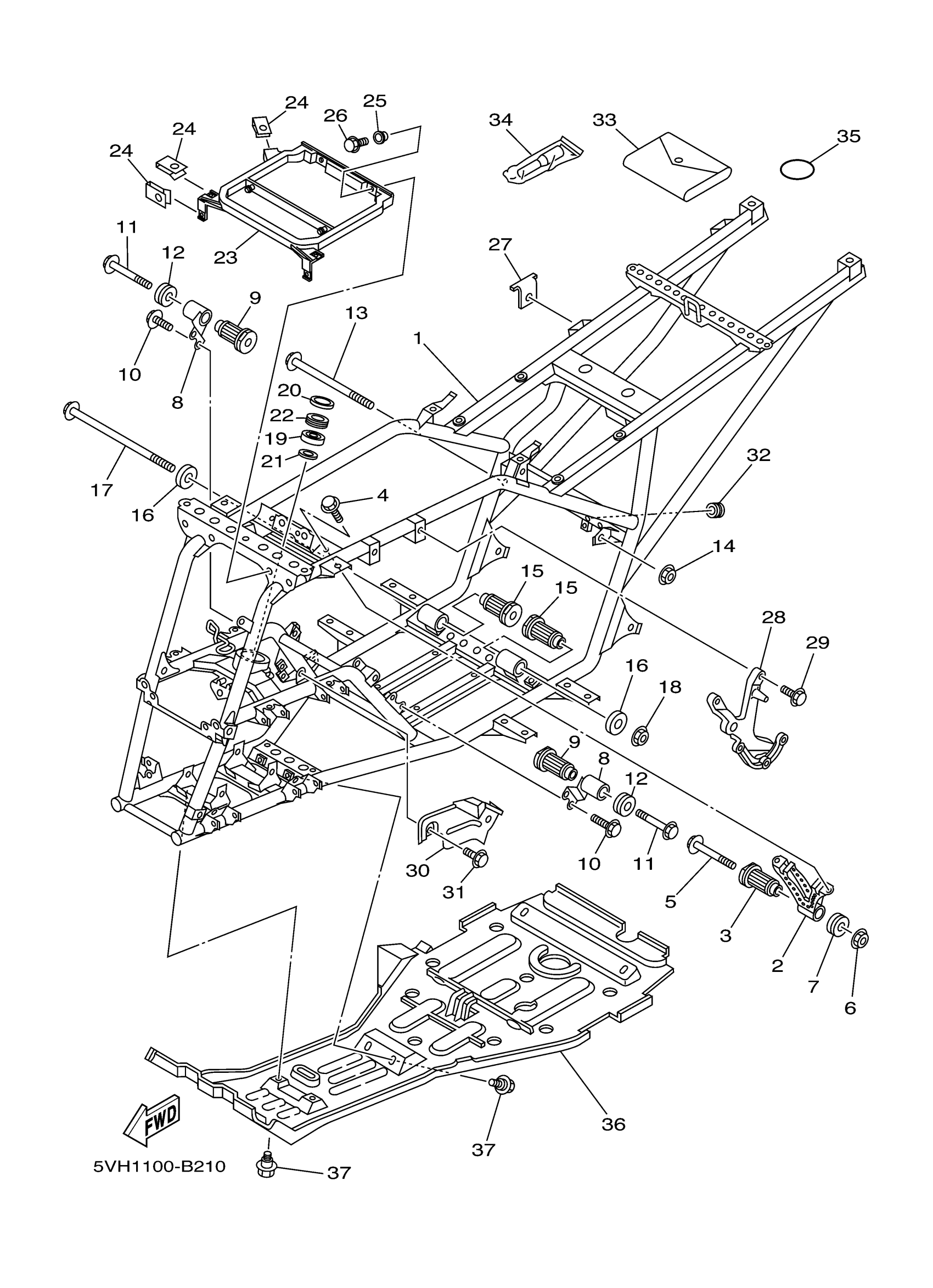

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP

5TE-F1110-01-00

Unavailable

2

STAY, ENGINE 2

5ND-F1315-01-00

Unavailable

3

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$3.98

5

BOLT, FLANGE(6TA)

95817-10110-00

$5.20

6

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

7

DAMPER 2

5ND-F1486-00-00

$9.49

8

STAY, ENGINE 3

5ND-F1316-01-00

$29.37

9

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

10

BOLT, FLANGE

95817-08012-00

$3.98

11

BOLT, FLANGE

95817-10080-00

$5.00

12

DAMPER 2

5ND-F1486-00-00

$9.49

13

BOLT, WASHER BASED

90105-10055-00

$10.22

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

15

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

16

DAMPER

5ND-F1488-00-00

Unavailable

17

BOLT, WASHER BASED

90105-10055-00

$10.22

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

19

BEARING

93306-203YN-00

$10.34

20

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

21

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

22

HOLDER, BEARING

2GU-23872-00-00

$22.43

23

STAY, FENDER 1

5ND-F1513-00-00

$10.38

24

NUT, SPRING(4ES)

90183-06069-00

$5.93

25

COLLAR (8G8)

90387-06681-00

$6.62

26

BOLT, FLANGE

95817-06012-00

$1.49

27

STAY, MUFFLER 2

5ND-F1446-01-00

Unavailable

28

ARM

5ND-F1585-01-00

$37.57

29

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

30

PROTECTOR 1

5ND-F2825-00-00

Unavailable

31

BOLT, FLANGE

95817-06010-00

$3.91

32

GROMMET(3GM)

90480-10517-00

$6.68

33

TOOL KIT

5ND-F8100-00-00

$19.57

34

GAUGE, AIR

1NV-2811A-01-00

$49.11

35

O-RING (583 OIL CLEANER)

93210-64297-00

$7.12

36

GUARD, ENGINE 1

5ND-F147A-03-00

$66.94

37

BOLT(3KJ)

90109-063F1-00

$2.24
