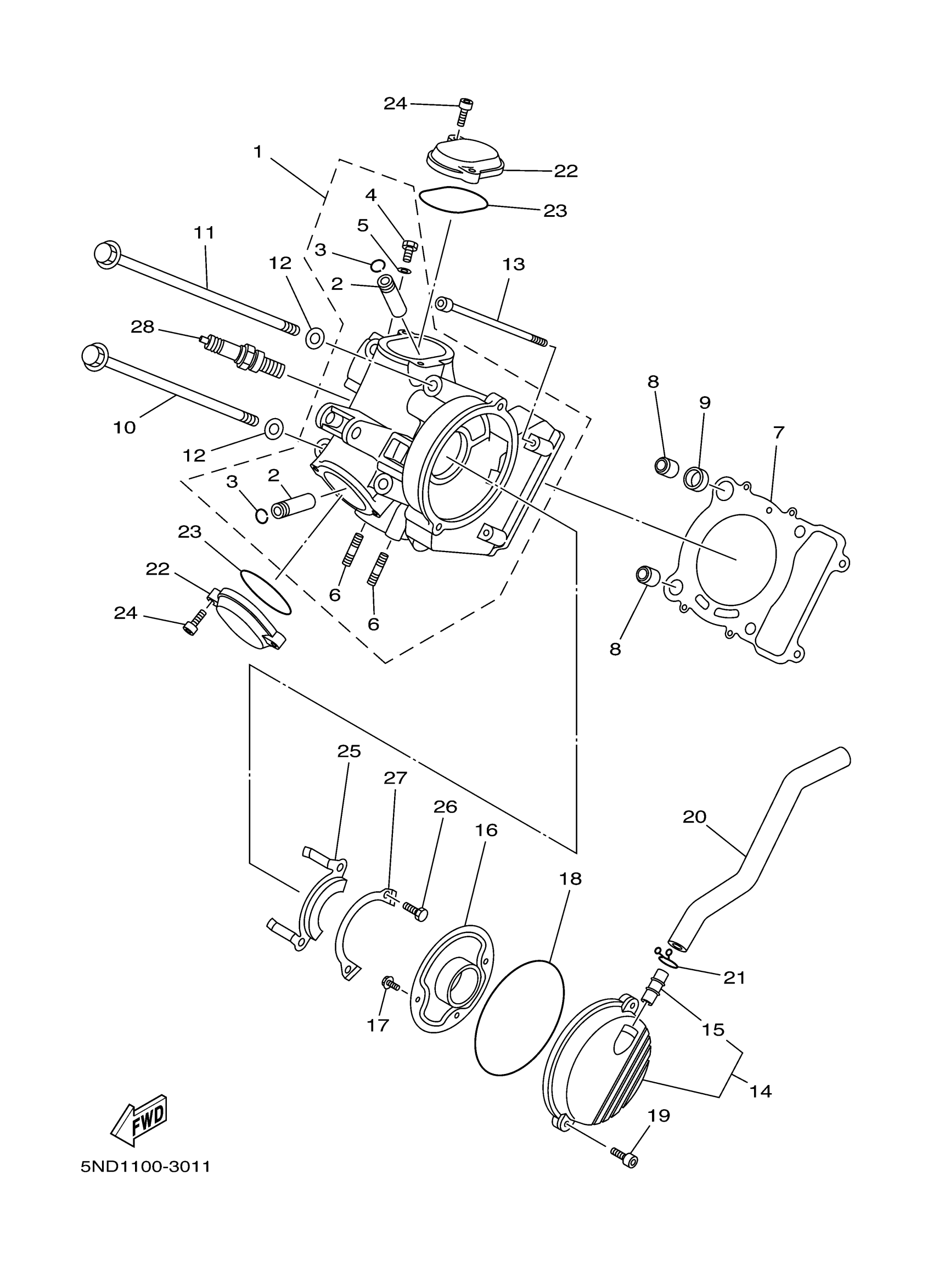

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5GH-11101-09-00

$916.99

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$24.50

3

CIRCLIP (1L9)

93440-12052-00

$1.75

4

BOLT UNION 137131650000

90401-06001-00

$7.48

5

GASKET (4V2)

90430-06166-00

$3.45

6

BOLT, STUD(2GG)

95617-08620-00

$4.95

7

GASKET, CYLINDER HEAD 1

5GH-11181-00-00

$50.68

8

PIN, DOWEL

99530-14016-00

$3.20

9

GASKET

90430-14240-00

$6.91

10

BOLT, FLANGE

90105-10137-00

$10.65

11

BOLT, FLANGE

90105-10136-00

$9.83

12

WASHER PLATE 341839090000

90201-10128-00

$3.42

13

BOLT,SOCKET

91317-06140-00

$12.17

14

BREATHER ASSY

4WU-11160-01-00

$64.60

15

PIPE, BREATHER 2

371-11167-01-00

$10.35

16

PLATE, BREATHER

4KB-11165-00-00

$23.92

17

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

18

O-RING (15A)

93211-06635-00

$12.42

19

BOLT,SOCKET

91317-06025-00

$2.05

20

PIPE, BREATHER 1

3C2-E1166-00-00

$10.23

21

CLIP (371)

90467-14015-00

$7.51

22

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

$24.94

23

O-RING

93210-57634-00

$12.58

24

BOLT,SOCKET

91317-06020-00

$2.11

25

PLATE

5GH-1111F-00-00

$25.00

26

BOLT, HEXAGON

97017-06012-00

$2.62

27

WASHER, LOCK (5H0)

90215-06184-00

$9.10

28

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

$4.06
