Description

Price

1

CRANKSHAFT ASSY

5GH-11400-10-00

Unavailable

2

CRANK SUB ASSY 1

5GH-11401-09-00

$339.68

3

CRANK SUB ASSY 2

5GH-11402-09-00

$357.49

4

PIN, CRANK 1

5GH-11681-00-00

$42.98

5

BEARING, CYLINDRICAL (3TB)

93310-635D4-00

$103.57

6

WASHER, PLATE(1XL)

90201-356K1-00

$12.00

7

ROD, CONNECTING

5GH-11651-01-00

$144.31

8

SEAL, CRANK

5GH-11447-00-00

$37.74

9

KEY, WOODRUFF

90280-05001-00

$10.68

10

WASHER, PLATE (856)

90201-10321-00

$5.43

11

BOLT (21V)

90101-10568-00

$4.35

12

O-RING (538)

93210-16290-00

$6.82

13

BEARING(4GB)

93306-30629-00

$66.12

14

PISTON (STD)

5GH-11631-00-00

$146.14

14

PISTON (0.50MM O/S)

5GH-11636-00-00

$103.26

14

PISTON (1.00MM O/S)

5GH-11638-00-00

$109.60

15

PISTON RING SET (STD)

5GH-11603-00-00

$54.64

15

PISTON RING SET (0.50MM O/S)

5GH-11605-00-00

$55.98

15

PISTON RING SET (1.00MM O/S)

5GH-11607-00-00

$62.14

16

PIN, PISTON

3LD-11633-00-00

$29.77

17

CIRCLIP 341116340000

93450-22027-00

$6.00

18

BALANCER ASSY

5ND-11500-00-00

$261.09

19

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$39.88

20

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$54.91

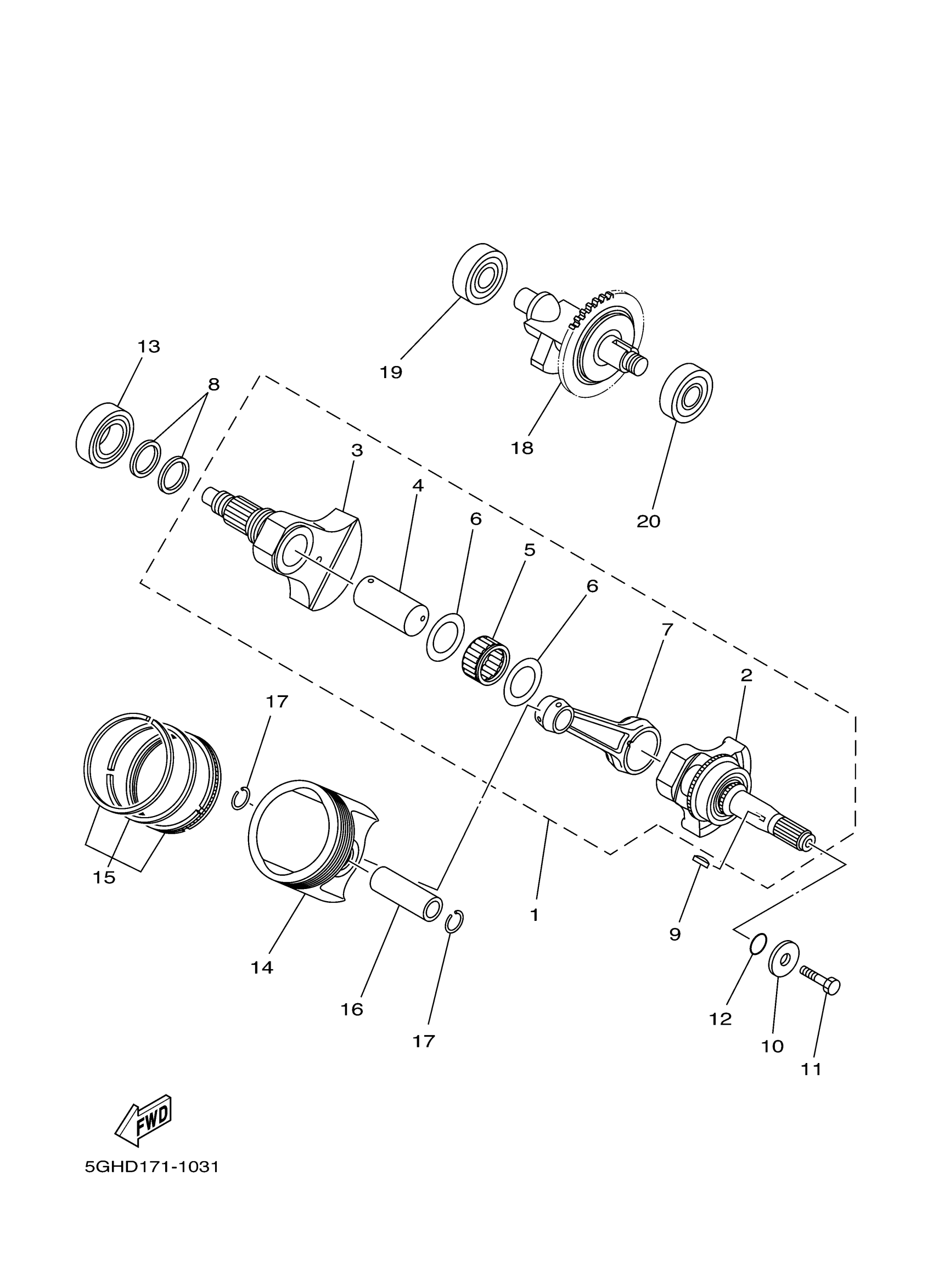

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 CRANKSHAFT PISTON Diagram
