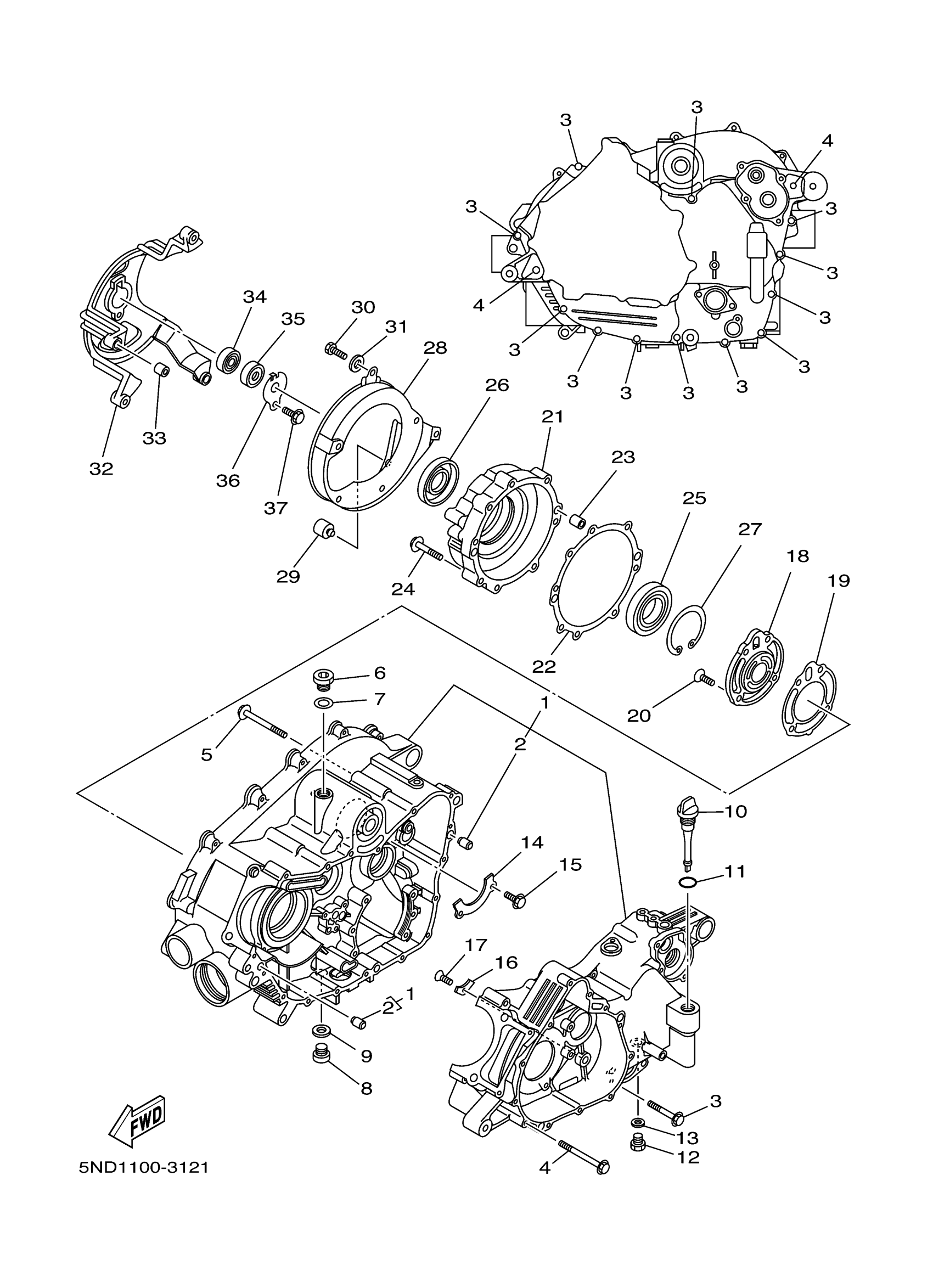

Yamaha YFM4AS (KODIAK 400 2WD) 5VH5 2004 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5VH-15100-00-00

$1,215.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.23

3

BOLT, SMALL FLANGE

95027-06040-00

$2.48

4

BOLT, SMALL FLANGE

95027-06065-00

$2.48

5

BOLT, SMALL FLANGE

95027-06065-00

$2.48

6

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$9.89

7

GASKET (1J7)

90430-18130-00

$6.17

8

PLUG, STRAIGHT SCREW

90340-14002-00

$16.95

9

GASKET

214-11198-01-00

$2.66

10

PLUG, OIL LEVEL

5GH-15362-00-00

$12.69

11

O-RING (5Y1)

93210-19522-00

$5.86

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

13

GASKET

214-11198-01-00

$2.66

14

PLATE, BEARING COVER

5GH-15388-00-00

$4.48

15

BOLT, FLANGE

95817-06012-00

$1.49

16

PLATE, BEARING COVER

4XM-15383-00-00

$11.03

17

SCREW, COUNTERSUNK (4H7)

90151-06014-00

$6.88

18

COVER, AIR CLEANER

5GH-15414-00-00

$76.29

19

GASKET 1

5GH-15454-00-00

$7.80

20

SCREW, FLAT

98707-06020-00

$6.69

21

HOUSING, BEARING 1

5GH-15163-00-00

$137.74

22

GASKET, CARBURETOR COVER 2

5GH-15463-00-00

$15.04

23

PIN, DOWEL(3VD)

99530-10114-00

$2.23

24

BOLT, SMALL FLANGE

95027-06040-00

$2.48

25

BEARING

93316-01003-00

$91.41

26

OIL SEAL

93102-32483-00

$16.80

27

CIRCLIP (70R)

93420-80066-00

$11.82

28

COVER

5GH-15333-00-00

$71.29

29

DAMPER, ENGINE MOUNT 5

5GH-15338-00-00

$10.40

30

BOLT, HEXAGON

97017-06016-00

$6.18

31

WASHER(6TA)

92907-06600-00

$0.78

32

HOUSING, BEARING

5GH-15442-01-00

$148.20

33

PIN, DOWEL

91810-20001-00

$1.58

34

BEARING(82M)

93306-20117-00

$29.07

35

OIL SEAL

93101-12168-00

$3.22

36

PLATE, BEARING COVER

4WV-15381-00-00

$7.32

37

BOLT, FLANGE(4MY)

95027-06012-00

$3.28
